15
F
G
H
H
LH

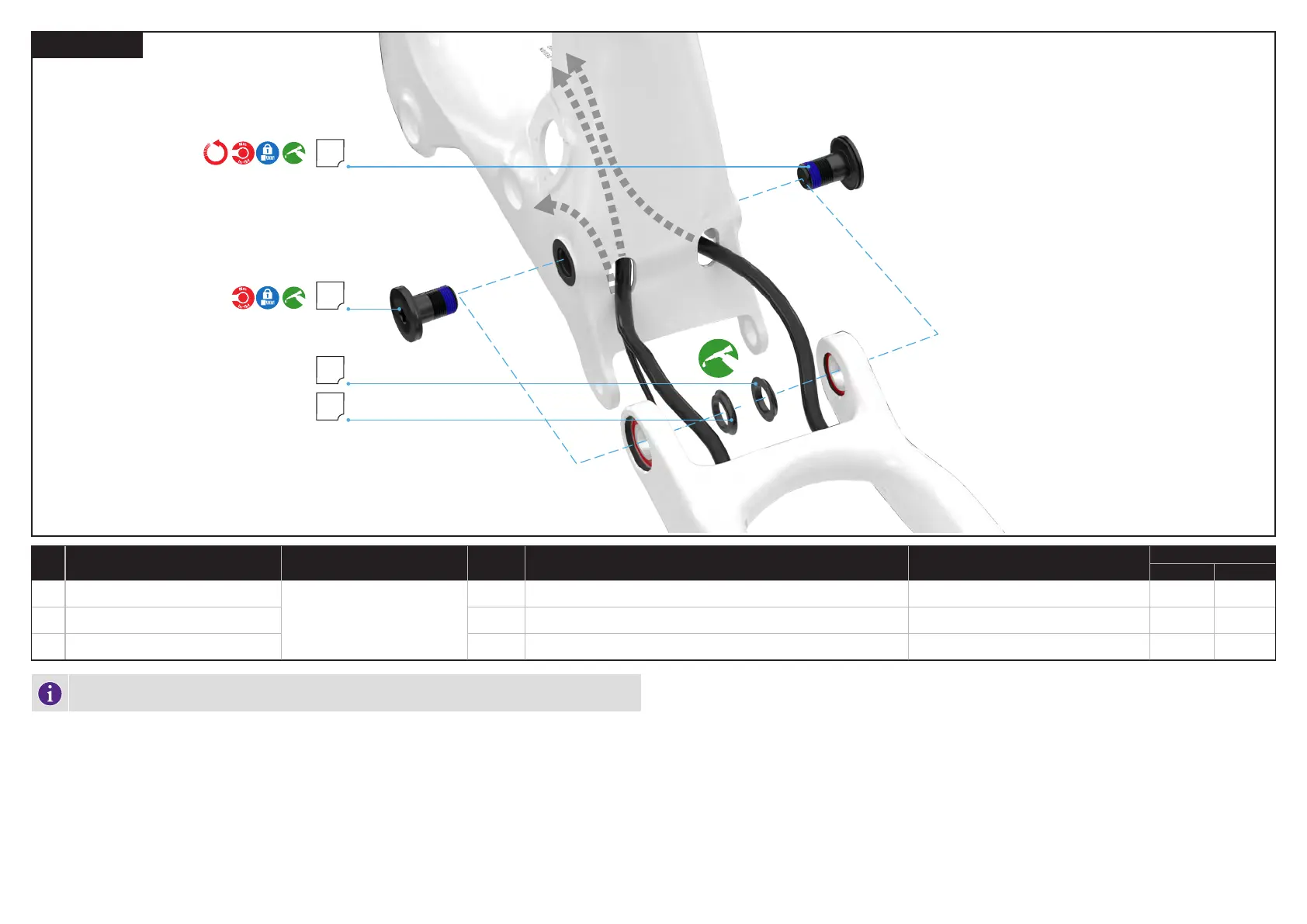

6.1.5. MAIN PIVOT
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
F Main pivot bolt DS
Part of suspension bolt kit.
S210500019
1 M12 x 20 mm x 1 mm p, left hand, bolt 6 mm hex 24 210
G Main pivot bolt NDS 1 M12 x 20 mm x 1 mm p, bolt 6 mm hex 24 210
H Main pivot inner spacer 2 12.1 mm id x 19.5 mm od x 3 mm w, spacer N/A N/A N/A
The drive side main pivot bolt is a left-hand thread.
Carefully guide the two nylon cable guide tubes and the speed sensor cable plug through the two cable slots at the
back of the frame and align the forward bore of the chainstay with the main pivot on the frame.
Grease then place the main pivot inner spacers (H) against the inside main pivot bearings (H) (reduced edge
facing toward the bearing).
Grease the non-threaded surfaces, then insert the main pivot drive side bolt (F) and the main pivot non-drive side
bolt (G). Use a 6 mm hex key, to hand tighten only.
