Turbo Schematic LEVO SL - Frame Geometry Specifications; Frame Dimensions as Sold

5

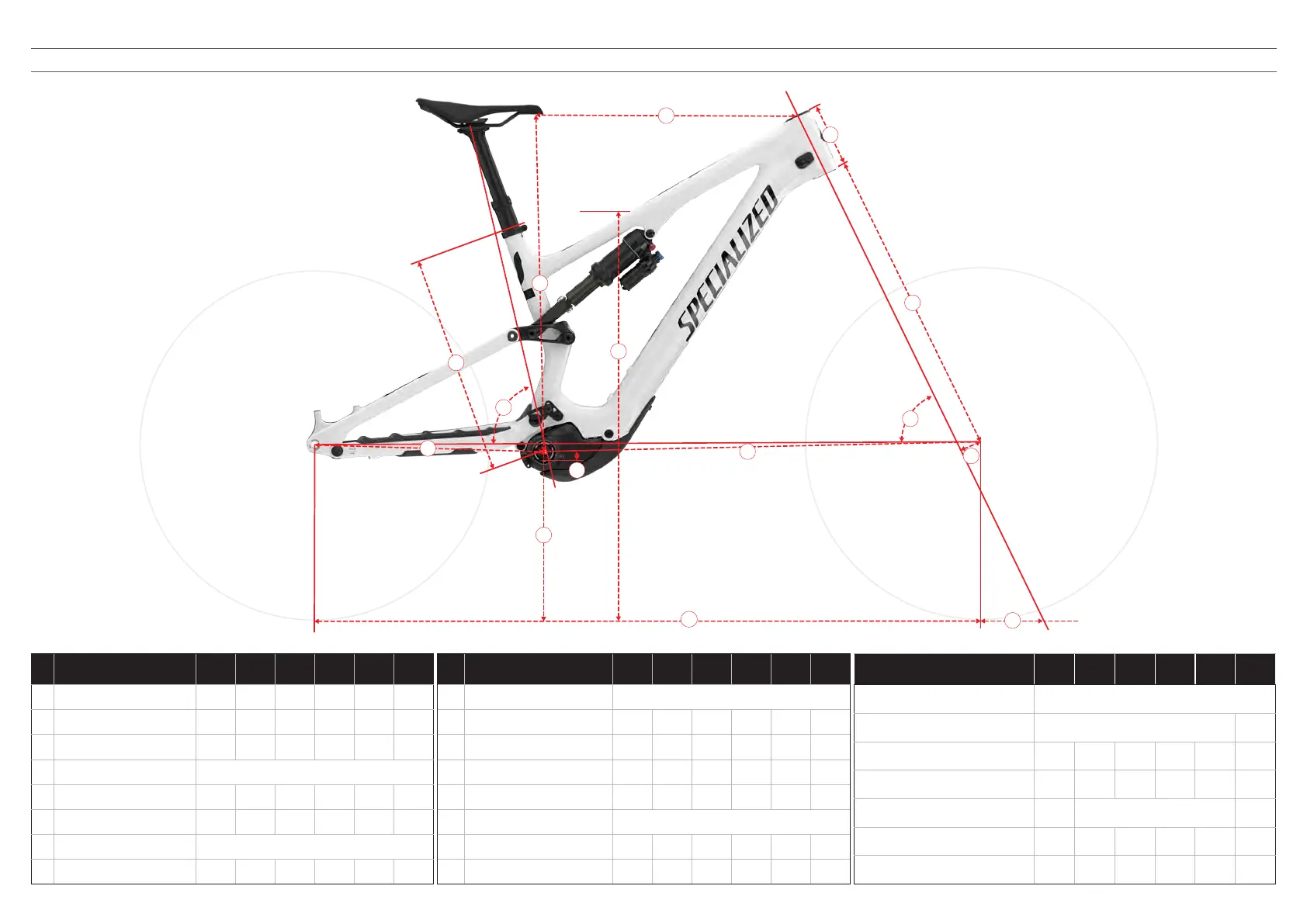

2. FRAME GEOMETRY
2.1. FRAME AS SOLD
A
B
C
D
N
F
G
H
I
J
K
E
L
M
O
ITEM S1 S2 S3 S4 S5 S6
A Stack (mm) 609 617 626 635 645 654
B Reach (mm) 405 425 445 470 495 525
C Head tube length (mm) 95 100 110 120 130 140
D Head tube angle (°) 64.5 °
E BB height (mm) 343 348 348 348 348 348
F BB drop (mm) -34 -29 -29 -29 -29 -29
G Trail (mm) 132
H Fork length (full) (mm) 560 570 570 570 570 570
ITEM S1 S2 S3 S4 S5 S6
I Fork rake/offset (mm) 44
J Front center (mm) 726 752 776 806 835 869
K Wheelbase (mm) 1158 1184 1208 1238 1267 1301
L Standover height (mm) 727 763 766 767 773 778
M Seat tube length (mm) 385 385 405 425 445 465
N Seat tube angle (°) 76
O Chainstay length (mm) 433 432 432 432 432 432
Crank length (mm) 165 165 170 170 170 175
ITEM S1 S2 S3 S4 S5 S6
Handlebar width (mm) 780
Stem length (mm) 40 50
Saddle width (mm) 155 143 143 143 143 143
Seatpost max insertion (mm) 180 180 200 220 240 260
Seatpost min. insertion (mm) 80
Top tube length (horizontal) (mm) 560 582 604 631 659 691
Fork size (mm) 144 150 150 150 150 150
