4. PIVOT BEARINGS AND SPACERS

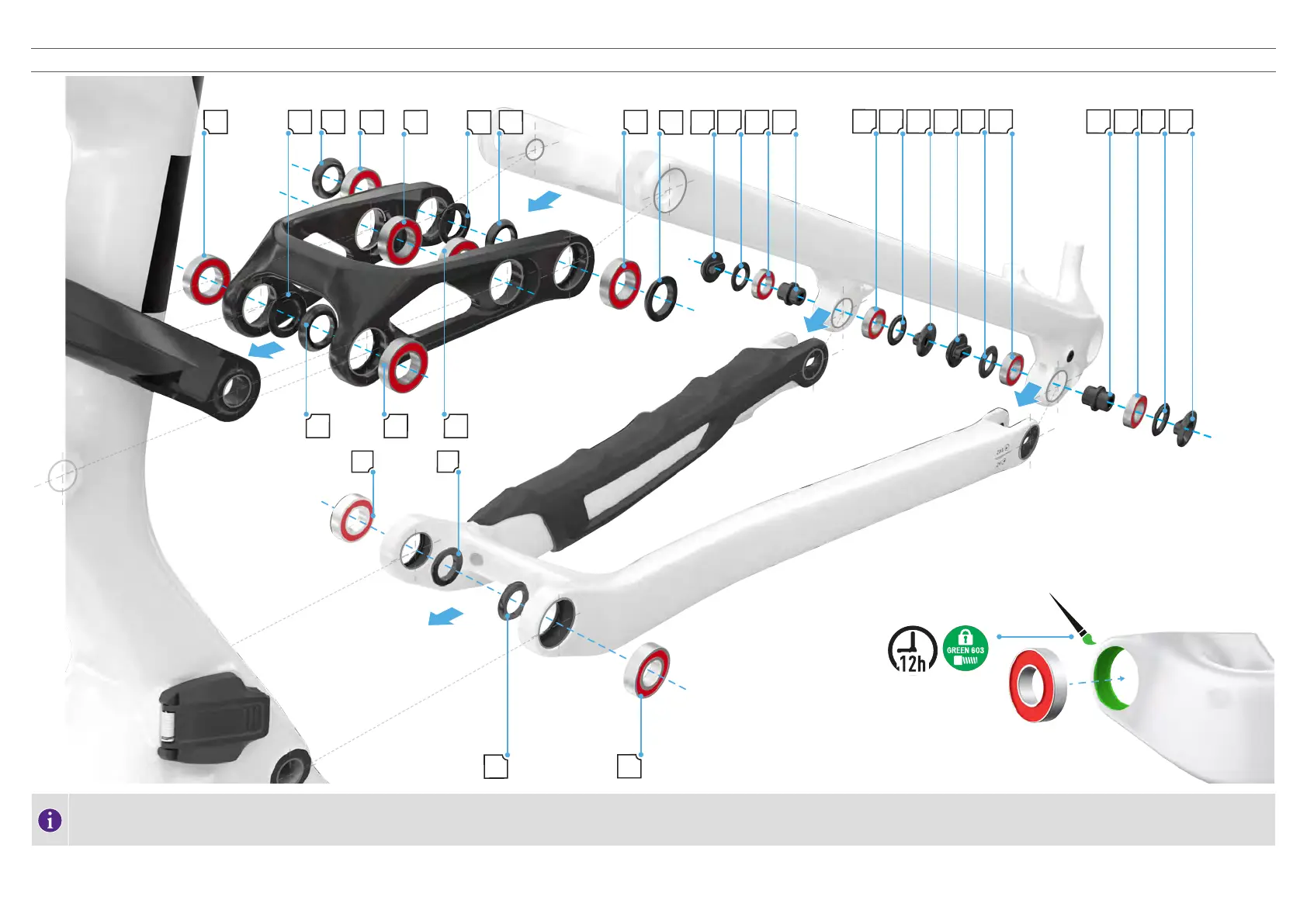

4.1. PIVOT BEARINGS AND SPACERS — EXPLODED VIEW
H
A
A H
BB
B
B
P
Q R
Q S S Q Q PR
M
M
M
D
E
EC J M
C DJ
Apply green Loctite 603 retaining compound to the bearing bore interface surfaces, then press all the bearings into their respective pivot locations. After installing the bearings, allow the Loctite 603 retaining compound to cure
12 hours before riding the bicycle.
