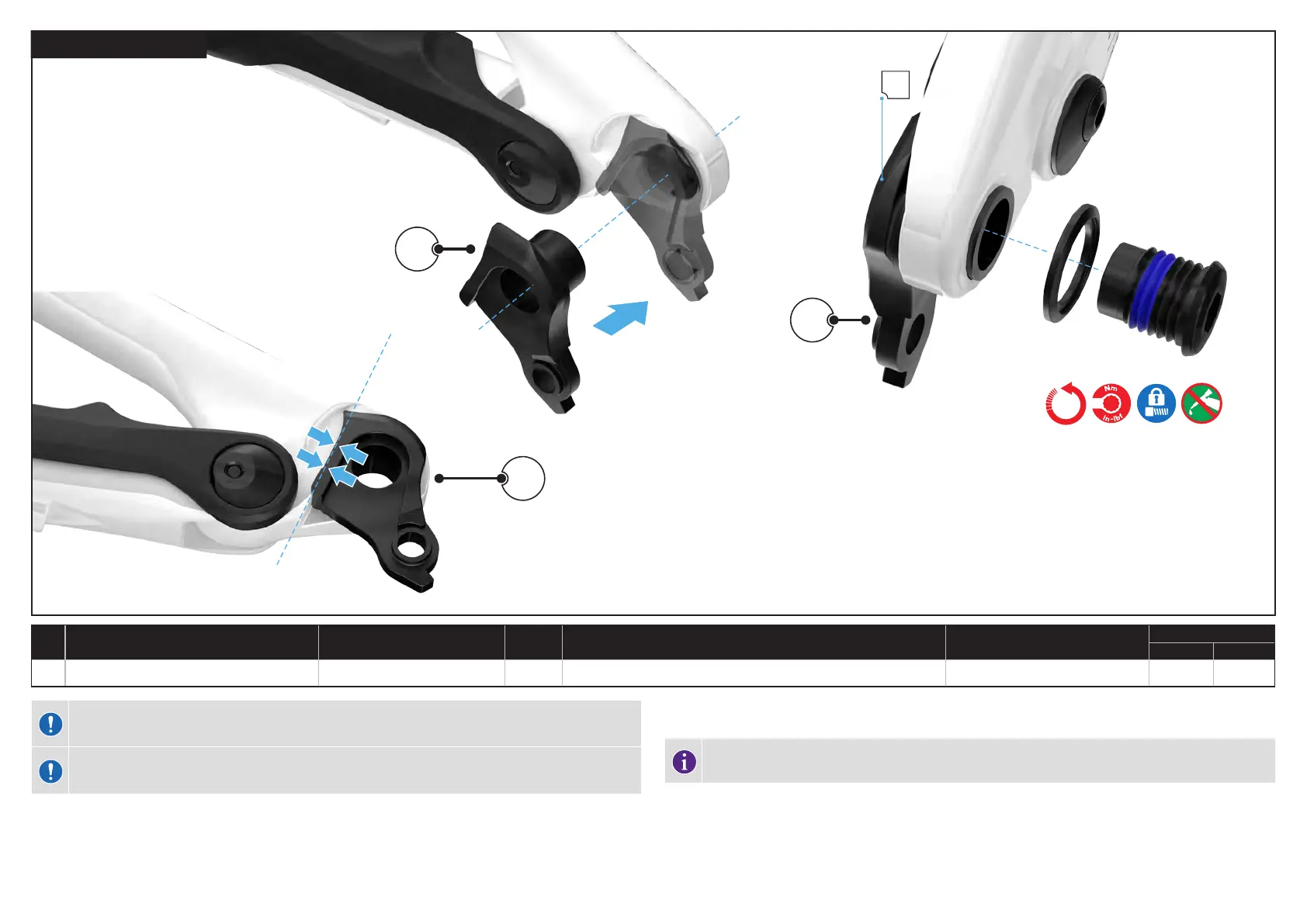

6.1.11. DERAILLEUR HANGER
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
A SRAM universal derailleur hanger
S202600002
1 HGR SRAM AC UDH DERAILLEUR HANGER AL BLACK (00.7918.089.000) 8 mm hex (left-hand thread) 25 220
CAUTION: Do NOT apply grease to the frame, UDH hanger, or UDH bolt threads.
CAUTION: The hanger must be completely seated in the hanger pocket or against the frame stop tab when
tightened to the specified torque.
1. Install the UDH hanger assembly into the frame dropout.
2. Rotate the UDH hanger forward until it is completely seated in the hanger pocket or contacts the rotational stop
tab.
3. Install the UDH washer, then thread the UDH bolt through the washer and into the hanger.
Use a torque wrench and 8 mm hex bit to torque to specification.
The UDH hanger bolt is left-hand threaded.
A reversible (left-hand and right-hand thread) torque wrench MUST be used to ensure proper left-hand
thread bolt torque.
