Turbo Schematic LEVO SL - Non-Drive Side Icr Port

26
A B C

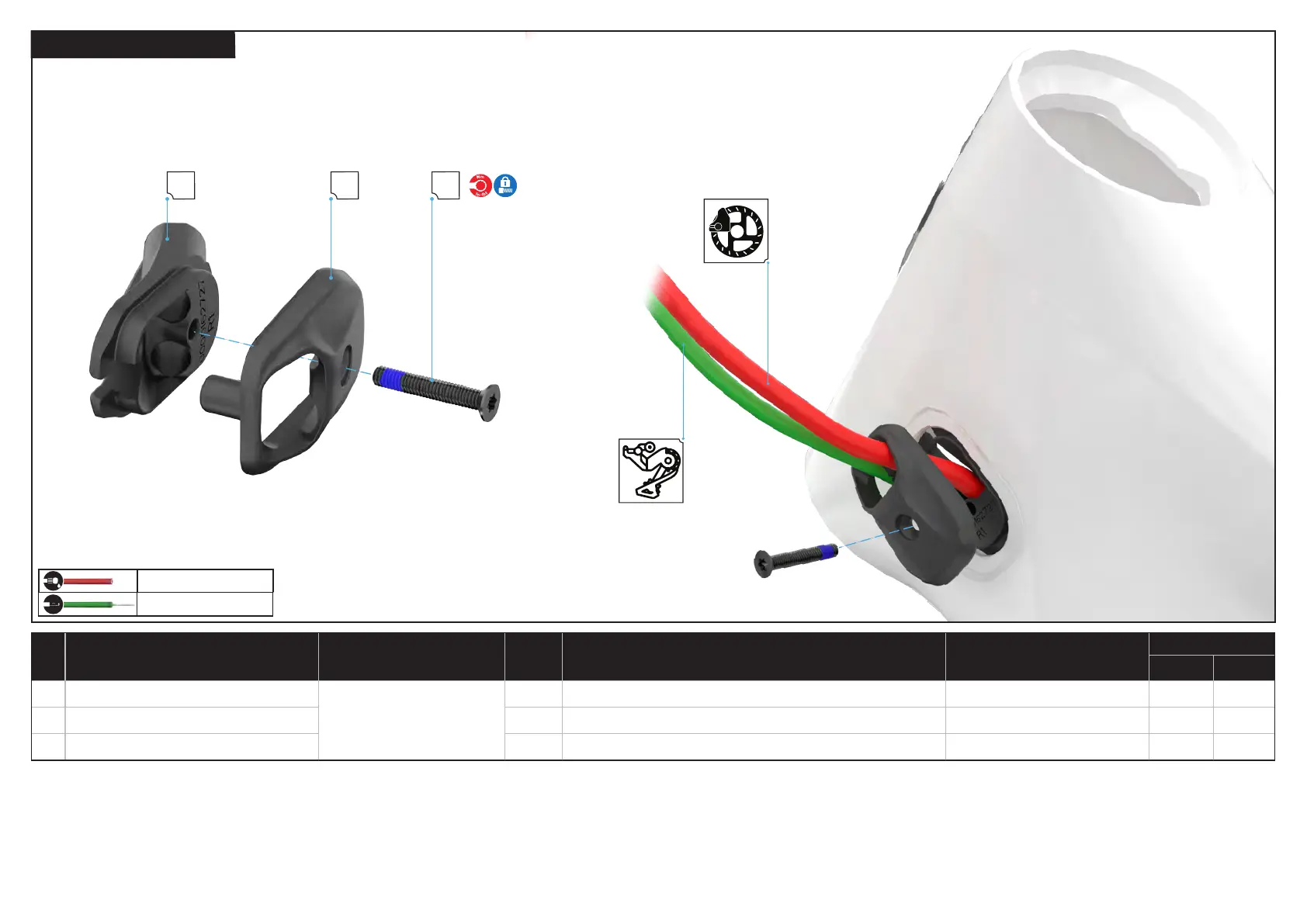

6.2.3. NON-DRIVE SIDE ICR PORT
REAR BRAKE
DERAILLEUR
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
A ICR cover — 2 wire
S216500007
1 ICR CVR,UNIVERSAL RACETRACK, 2 WIRES, 2 CABLES N/A N/A N/A
B ICR base 1 ICR BASE, UNIVERSAL RACETRACK, NYLON, BLK N/A N/A N/A
C ICR guide screw 1 M3 x 18 mm x 0,5 p, bolt
T10 Torx 1 9
 Using a T10 Torx key, loosen the screw holding the inner and outer components of the ICR port guide together but
do not separate the two components completely.
 Feed the rear brake hose through the upper hole of the non-drive side ICR guide.
 Feed the derailleur cable through the lower hole on the non-drive side ICR guide.
 Slide the inner component of the ICR guide into the NDS head tube port and place the outer component on the
frame.
 Use a torque wrench and T10 Torx bit to torque the bolt to specification.
