Turbo Schematic LEVO SL - Rear Shock: Alloy Shock Extension

39
U
A
C
T
B
1
2

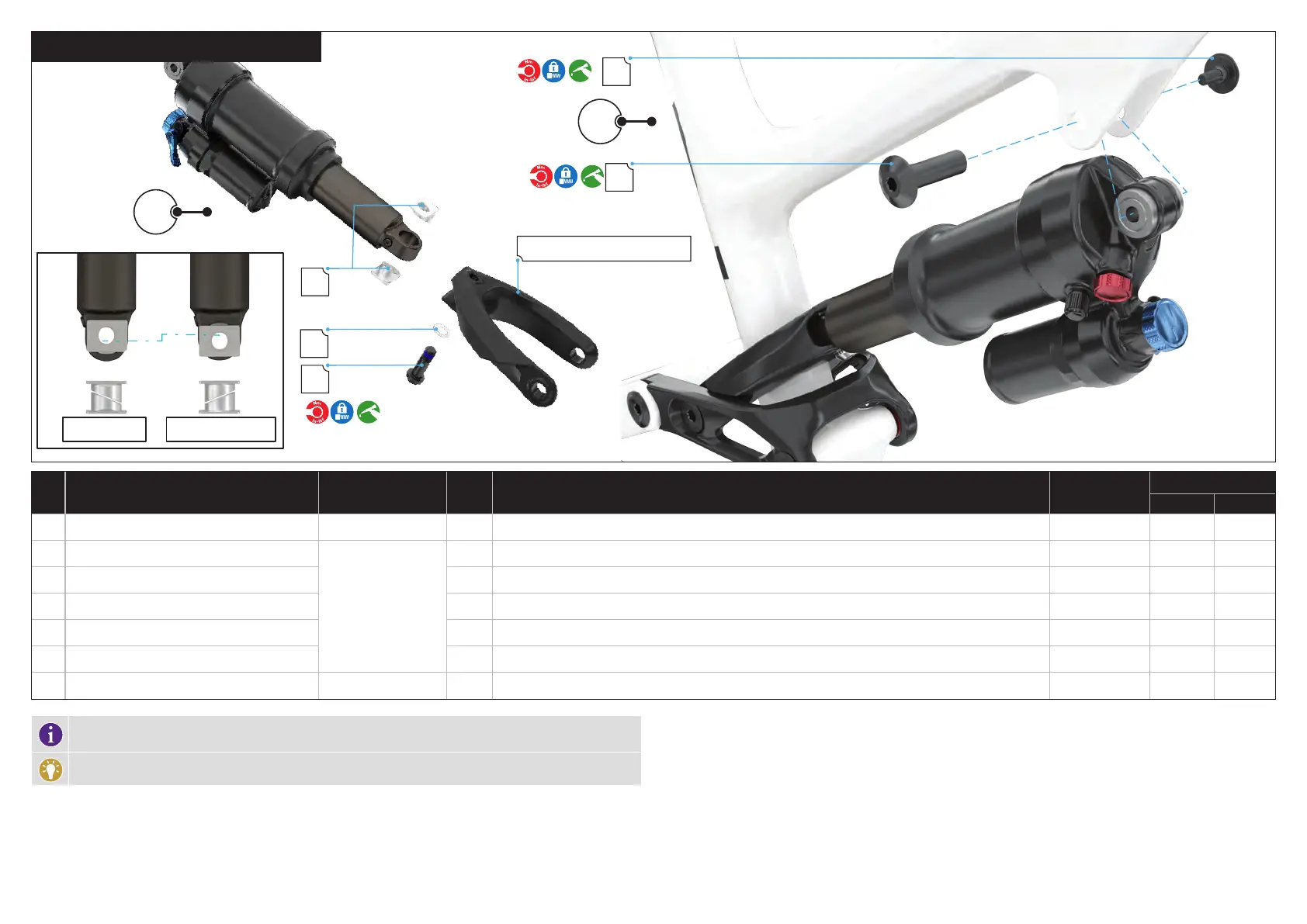

6.3.12. REAR SHOCK : ALLOY SHOCK EXTENSION
HIGH
LOW / DEFAULT
ALLOY SHOCK EXTENSION
# PART NAME
SERVICE PART
NUMBER
QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Shock extension — Alloy
S216300004
1 SHK EXT MY22 LEVO SL CARBON, ALLOY EXTENSION N/A N/A N/A
Rear shock hardware kit
S210500021
1 BLT MY22 LEVO SL CARBON, REAR SHOCK HARDWARE KIT N/A N/A N/A
U Rear shock mounting bolt — Alloy extension 1 M8 x 26 mm x 1.25 mm p,bolt 6 mm hex 20 180
A Rear shock mounting washer 1 8.2 mm id x 13 mm od x 0.5 mm thick, washer N/A N/A N/A
T Forward shock mounting axle 1 FSM,MTB,XC FSR H1, AXLE 4 mm hex 5.5 49
B Forward shock mounting screw 1 M5 x 11 mm x 0.8 mm p, bolt 4 mm hex 5.5 49
C Geo-adjust flip chip bushing kit
S189900096
1 BLT GEO-ADJUST FLIP CHIP BUSHING KIT, FOR REAR SHOCK EYELET, 8 MM ID X 15 MM OD X 6.5MM, STEEL (2 PCS) N/A N/A N/A
CARBON FRAME: Do not assemble the rear shock until motor and battery assembly is complete
Place a cloth on the frame to prevent the shock from damaging the paint
 Place the flip chips in the rear shock eyelet based on your preferred rear wheel size.
 Install the shock/flip chip assembly into the shock extension, then insert and loosely tighten the rear shock
mounting bolt using a 6 mm hex key.
 Rotate and align the shock with the forward shock mount.
 Insert the forward shock eye bolt. Use a torque wrench and 4 mm hex bit and torque to specification.
 Use a torque wrench and 6 mm hex bit to torque the rear shock mounting bolt to specification.
