Turbo Schematic LEVO SL - Rock Guard Installation

35
A
D
B
B C

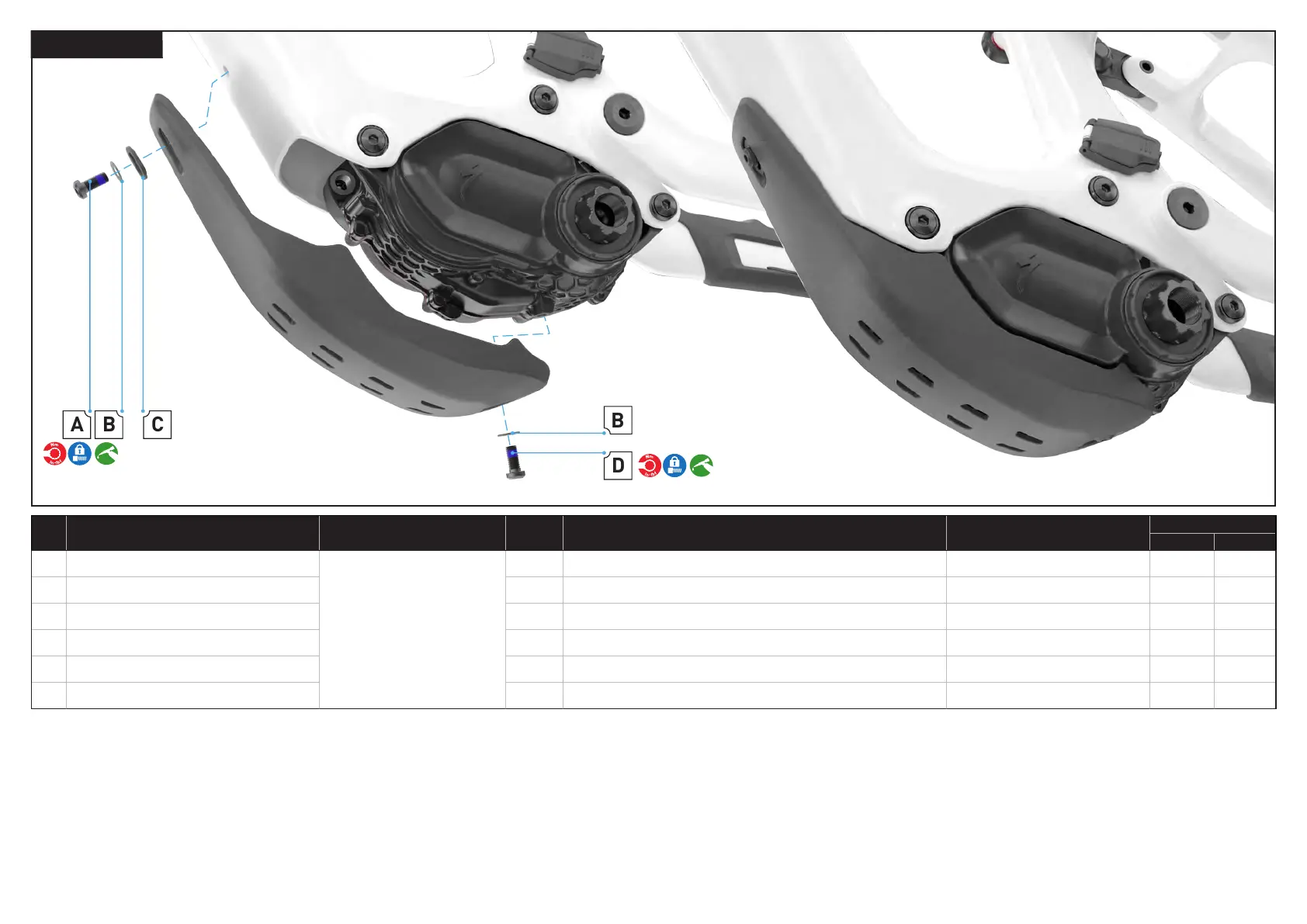

6.3.8. ROCK GUARD
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Rock guard kit
S214200058
1 SUB MY22 LEVO SL CARBON ROCK GUARD KIT MOTOR,M20 N/A N/A N/A
Rock guard 1 ROCK GUARD,PA TRAIL FSR G1.1 N/A N/A N/A
A Rock guard / battery bolt 1 M6 x 14 mm x 1 mm p, bolt 4 mm hex 3 27
B Rock guard washer 2 6.4 mm id x 12 mm od x 0.5 mm thick, washer N/A N/A N/A
C Rock guard slot washer 1 6.4 mm id x 12 mm od x 1.5 mm thick, slot washer N/A N/A N/A
D Rear rock guard bolt 1 M6 x 14 mm x 1 mm p, bolt 4 mm hex 2.5 22
 Insert the forward rock guard / battery bolt, washer, and slot washer. Use a torque wrench and 4 mm hex bit and
torque to specification.
 Insert the rear rock guard bolt and washer. Use a torque wrench and 4 mm hex bit and torque to specification.
