Turbo Schematic LEVO SL - Chain Guide Adjustment

44
F
B
A

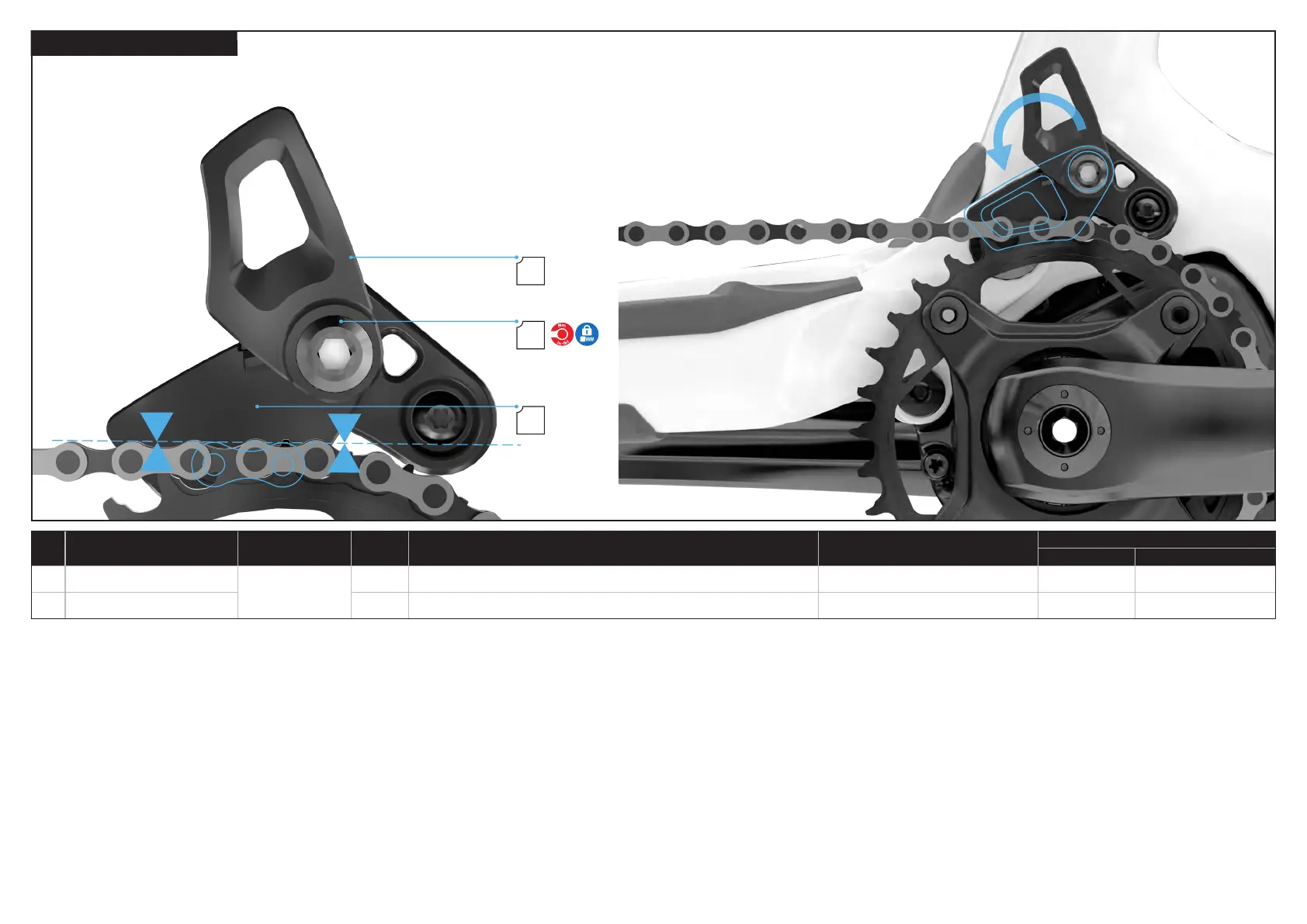

6.4.4. CHAIN GUIDE ADJUSTMENT
# PART NAME
SERVICE PART
NUMBER
QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Chian guide
S231200005
1 CHG LEVO SL (GEN.2), CARBON FRM, CHAIN GUIDE, MOTOR BOLT MOUNTED, 32-34T
N/A N/A N/A
F Chain guide mounting nut 1 M8 x 1 mm p, nut
5 mm hex
4.5 40
 Shift to the smallest cog on the cassette.
 Loosen the chain guide mounting nut (F) with a 5 mm hex key and align the chain link graphic on the chain guide
inner face (B) with the chain.
 Use a torque wrench and 5 mm hex bit to torque the chain guide mounting nut (F) to specification.
 Rotate the chain guide outer face (A) downward and lock into position.
