Turbo Schematic LEVO SL - Mud Flap

20
A B

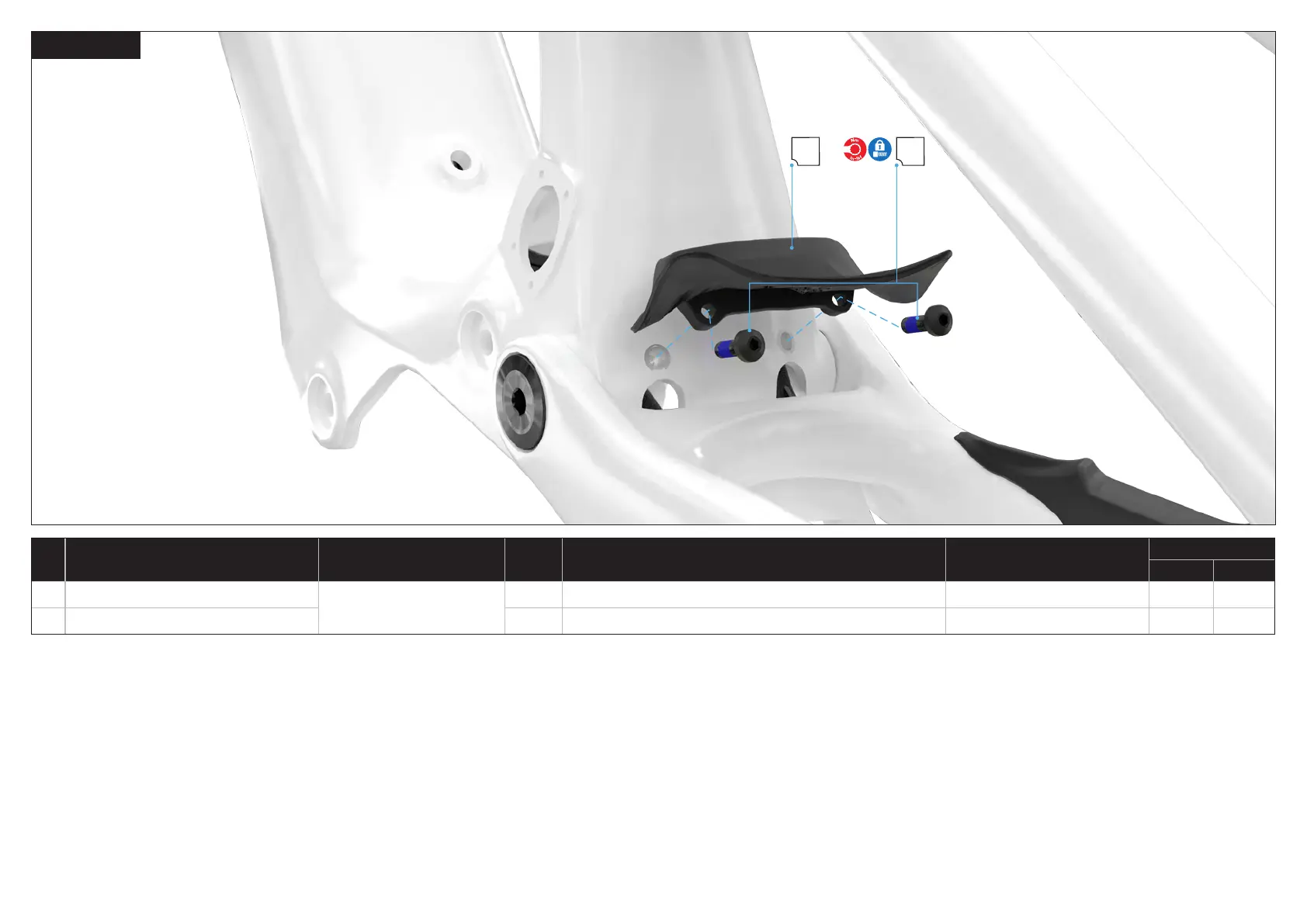

6.1.10. MUD FLAP
This assembly keeps mud and debris from collecting in the gap between the main frame and chainstay.
 Apply Loctite to the two mud flap bolts and place them in the two holes in the mud flap.
 Place the mud flap on the back of the frame on top of the chainstay.
 Flex the mud flap up to access the two mounting holes in the frame.
 Use a 2.5 mm hex key to tighten the two mud flap bolts.
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
A Mud flap kit
S214200057
1 KIT,MUD FLAP,MTB,PA TRAIL FSR G1 N/A N/A N/A
B Mud flap bolt 2 M4 x 12 mm x 0,7 mm p, bolt 2.5 mm hex 0.3 2.7
