Turbo Schematic LEVO SL - Motor: Step 2

33

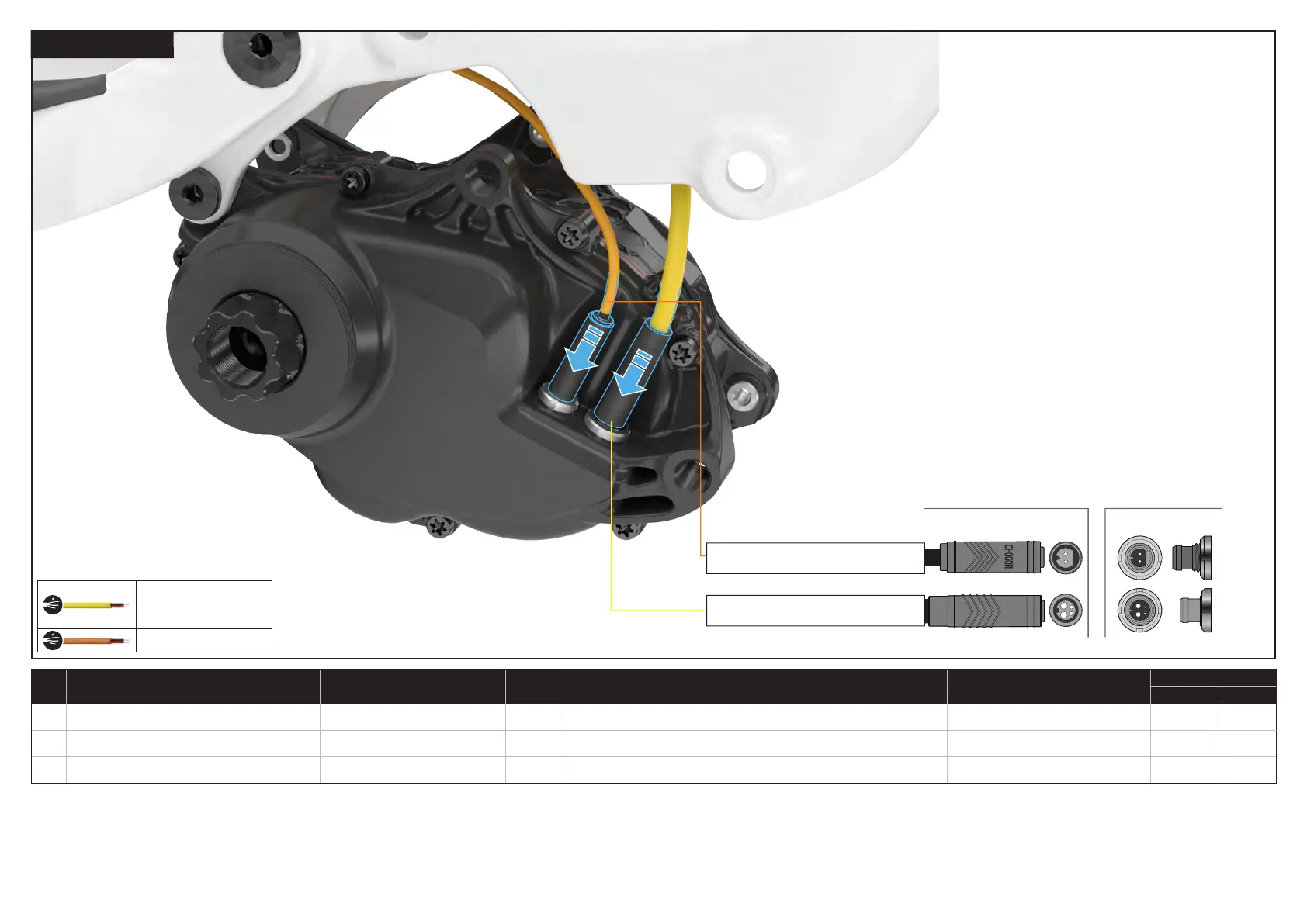

6.3.6. MOTOR: STEP 2
MOTOR
CONNECTOR
CABLE
CONNECTOR
SPEED SENSOR
BATTERY / MAIN CONNECTOR
MAIN HARNESS
TCU - MOTOR
MOTOR - BATTERY
SPEED SENSOR
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Motor
S226800001
1 MOTOR, M20 N/A N/A N/A
Speed sensor cable
S196800019
1 ELE MY20 MTB SL SYSTEM, SPEEDSENSOR KIT N/A N/A N/A
Main harness
S196800021
1 ELE WIRING, SL SYSTEM. MAIN HARNESS MOTOR-BATTERY-TCU N/A N/A N/A
 Connect the speed sensor connector to the motor in the rear position.
 Connect the battery/main harness connector to the motor in the forward position.
