6.5.2. HEADSET CUPS ADJUSTMENT
The head tube angle is adjustable via adjustable headset cups. The bicycle ships with the “zero” offset cup
and a +/- 1 degree headset cup ships in the small parts box.
Adjustable headset cup replacement
Remove the zero offset cup from the head tube and replace it with the +/- 1 degree headset cup.

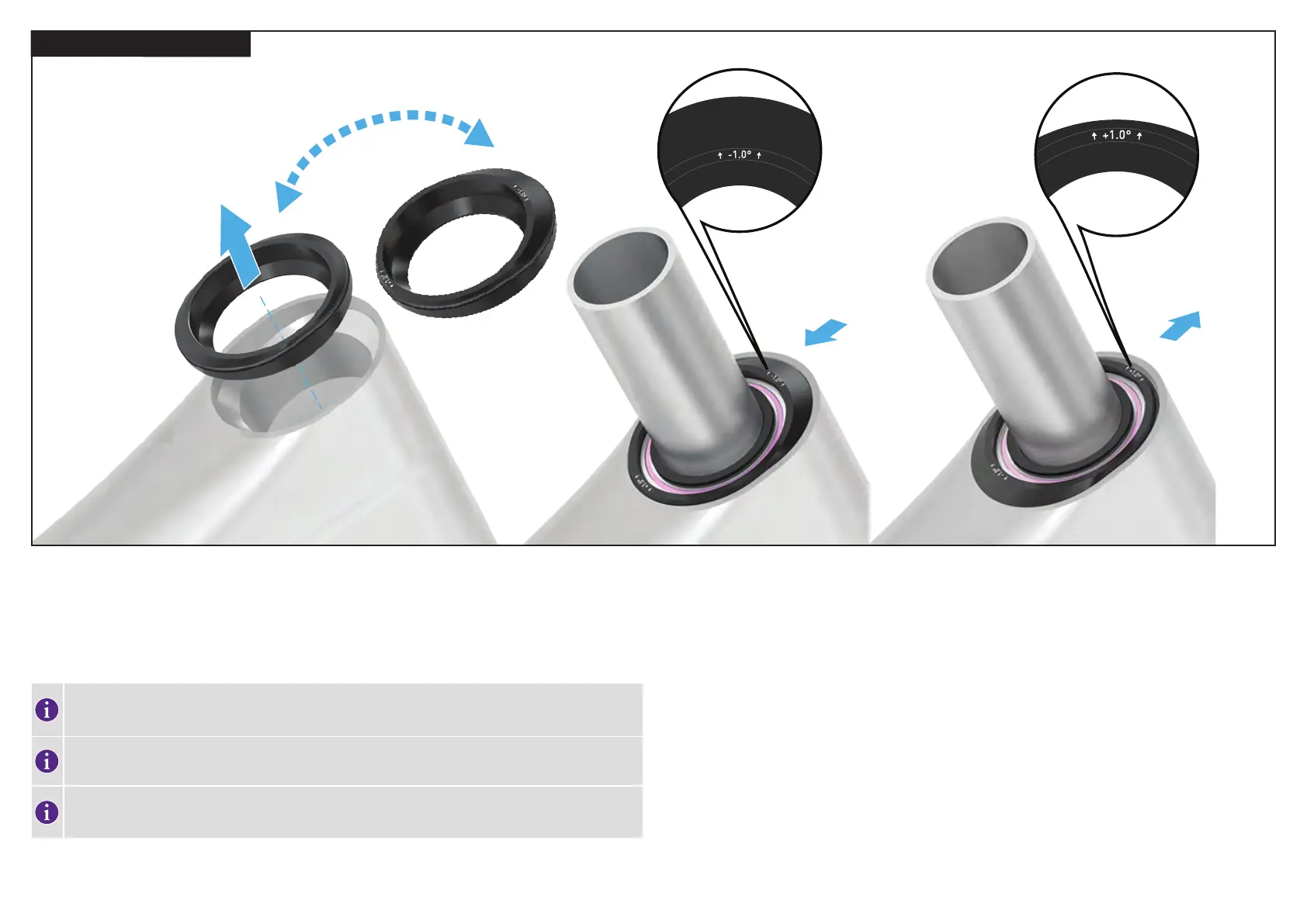

Install the headset parts, bearings, and cups into the frame. When aligning the headset cup, the etching facing the
front of the bicycle indicates the desired setting.
Make sure the head tube and headset cup are free of dirt and debris when changing the upper cup angle.
Lubricate all the parts with high-quality waterproof grease.
All models are shipped with the zero offset cup installed. Switching the headset cup steepens or slackens
the head tube angle by +/-1 degree.
The bottom headset cup is universal for all headset cups. The cup has a spherical interface with the head
tube and will move with the angle of the steerer tube.
