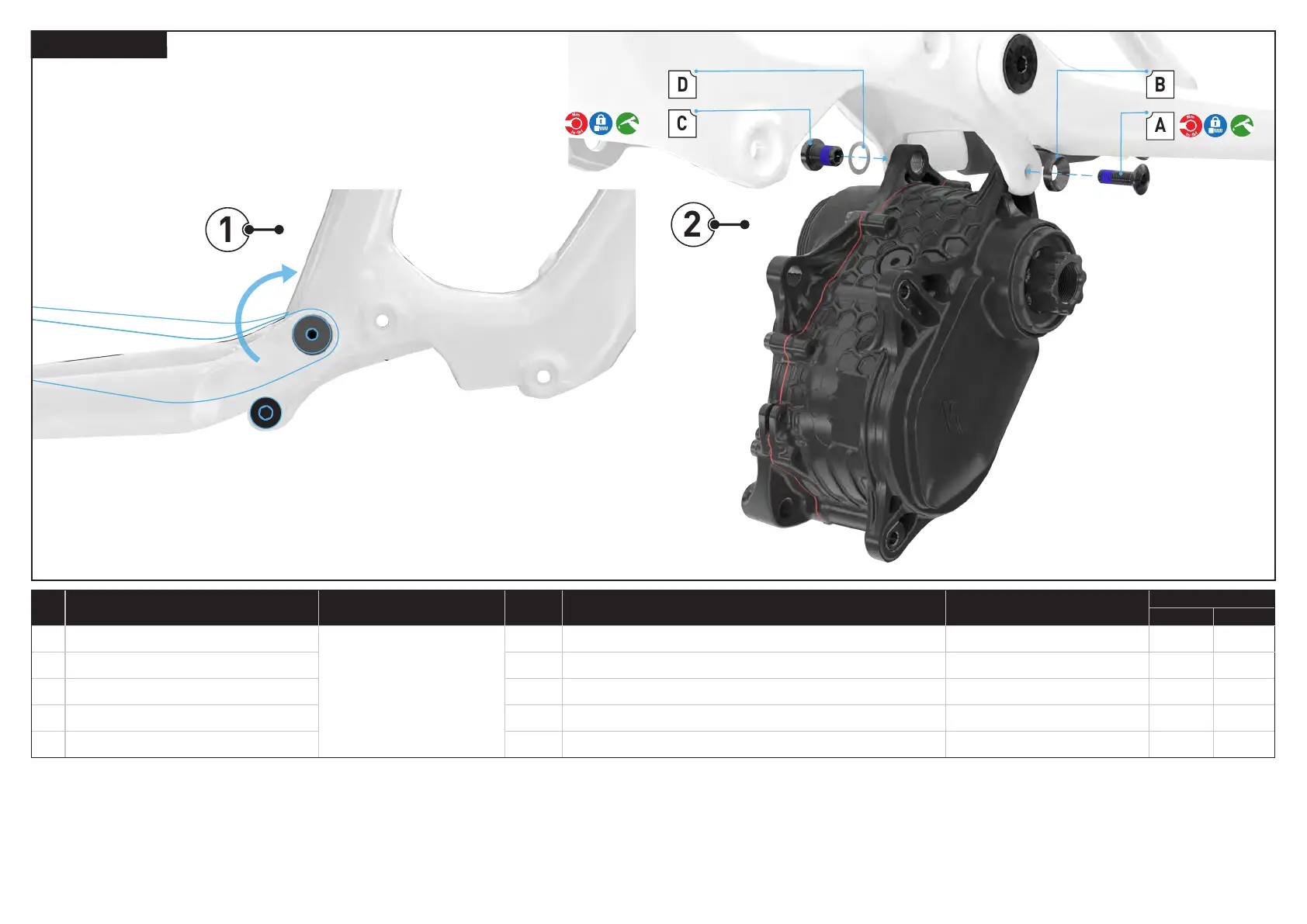

6.3.5. MOTOR: STEP 1
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Motor mounting hardware kit — Carbon
S210500018
1 BLT MY22 LEVO SL CARBON MOTOR MOUNTING HARDWARE KIT N/A N/A N/A
A NDS motor bolt 3 M6 x 20 mm x 1.0 mm p, bolt 5 mm hex 10 90
B NDS motor washer 3 6.4 mm id x 16 mm od x 4 mm thick, washer N/A N/A N/A
C DS motor bolt 3 M10 x 14 mm x 1.0 mm p, bolt 5 mm hex 13 115
D DS motor washer 3 11 mm id x 16 mm od x 0.5 mm thick, washer N/A N/A N/A
 1. Before assembling the motor, rotate the chainstay upward to enure access to the rear motor bolt holes.
 2. Install the motor assembly into the frame. Make sure the rear motor bolt holes are aligned with the frame bolt
holes.
 Grease the non-threaded surfaces and insert the non-drive side motor bolt (A) and washer (B) into the frame
using a 5 mm hex key. Hand tighten only allowing the motor to rotate around this pivot.
 Grease the non-threaded surfaces and insert the drive side motor mounting bolt (C) and washer (D) into the
frame using 5 mm hex key to hand tighten.
