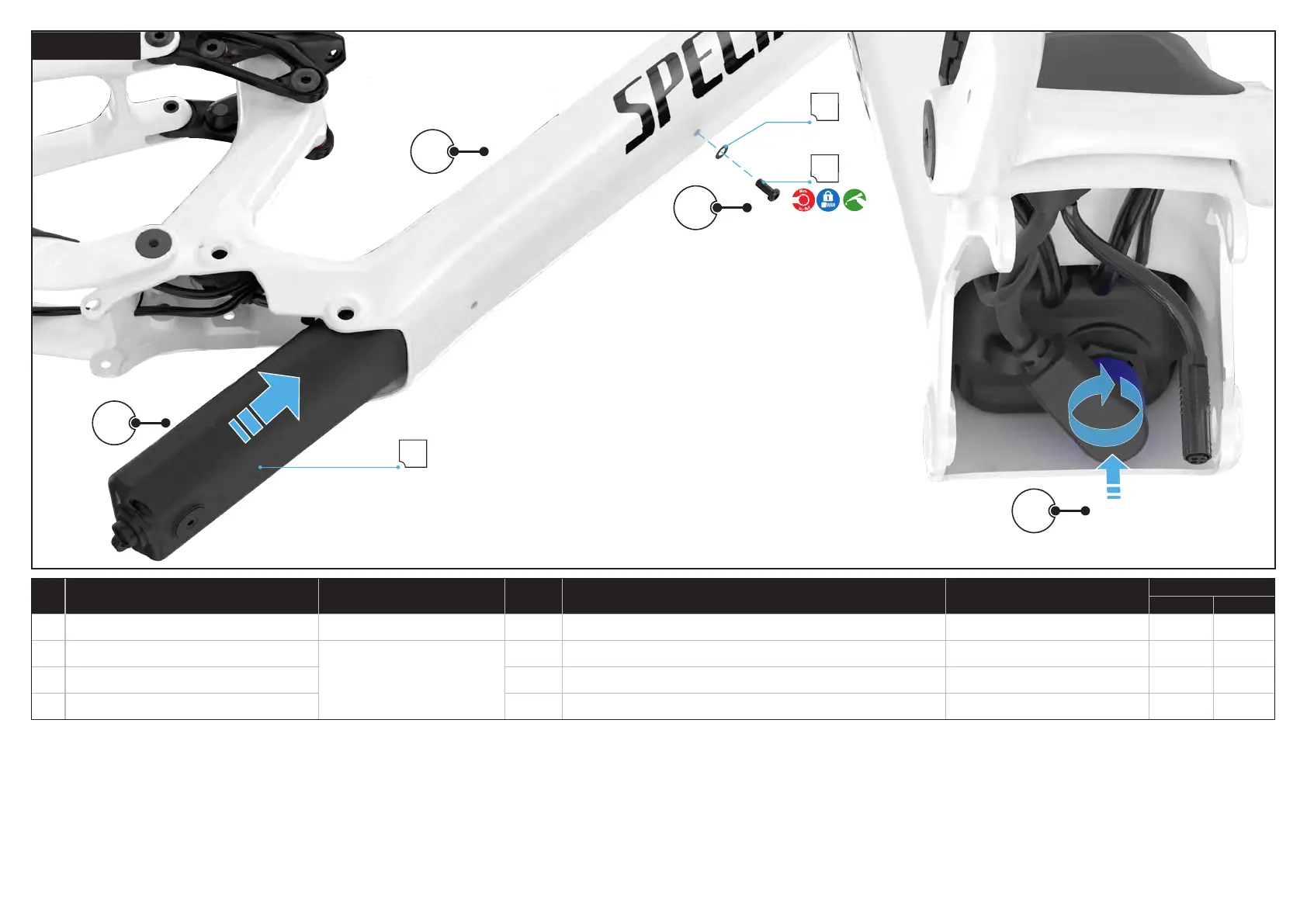

6.3.3. BATTERY
# PART NAME SERVICE PART NUMBER QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
A Internal battery
S196800015
1 ELE BATTERY SL SYSTEM, INTEGRATED, 320WH, SBC-B15, W/O BOLTS N/A N/A N/A
Battery mounting hardware — Carbon
S210500020
1 BLT MY22 LEVO SL CARBON, BATTERY MOUNTING HARDWARE N/A N/A N/A
B Battery mounting bolt 2 M6 x 14 mm x 1.0 mm p, bolt 4 mm hex 3 27
C Battery mounting washer 2 6.4 mm Id x 12 mm od x 0.5 mm thick, washer N/A N/A N/A
1. Ensure the down tube channel plug, rear brake and derailleur guide tubes, and dropper post cable are securely
in place in the down tube cable channel. Pull on the HMI cable from the TCU cutout to ensure the cable is as
straight as possible in the down tube.
2. Slide the battery up the down tube until the upper battery bolt hole aligns with the upper battery mount hole in
the frame.
3. Insert the battery mount bolt (B) and washer (C). Use a torque wrench and 4 mm hex bit and torque the bolt to
specification.
4. Connect the main harness to the battery and rotate the battery twist-lock connector clockwise until it locks
ensuring a secure connection.
