Turbo Schematic LEVO SL - Derailleur Cable Routing

25

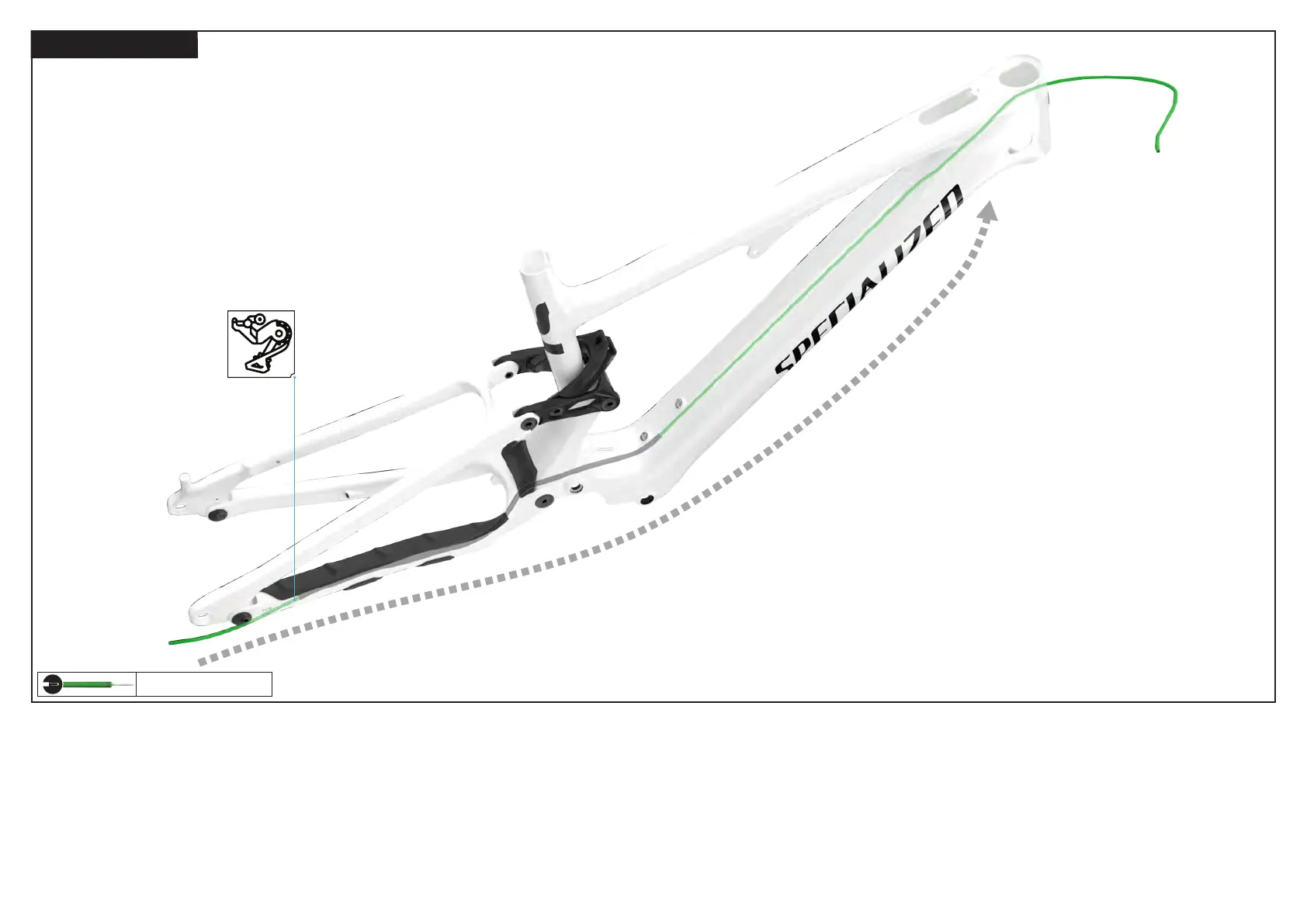

6.2.2. DERAILLEUR CABLE
DERAILLEUR
 Feed the derailleur cable housing into the drive side ICR port on the bottom of the chainstay.
 Feed the cable through the derailleur cable guide tube and up the down tube.
 When the cable housing reaches the ICR port, gently guide it out of the NDS head tube ICR port.
