47
I
H
K
G
M
D
F
E
A
1 2 3

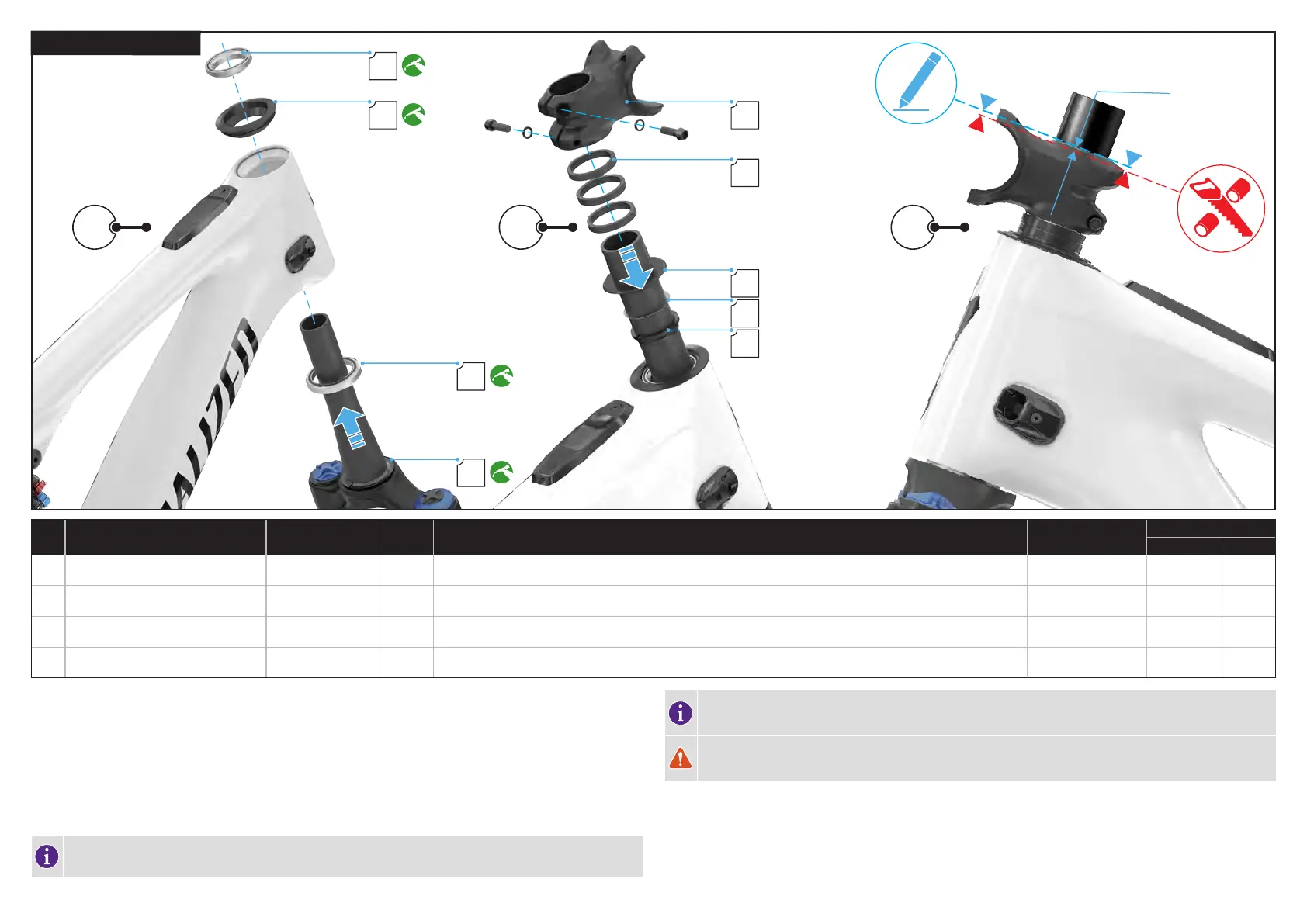

6.5.3. FORK STEERER TUBE
3 mm
# PART NAME
SERVICE PART
NUMBER
QTY SPEC / DESCRIPTION TOOL
TORQUE
Nm in-lbf
Headset kit
S182500005
1 HDS NO.42/ACB/S/F/N 46CONE SPACER, AL COMPRS RING, UP 1.125/LOW1.5 CRMO 45, AL CROWN RACE,ANO MATT BLK
N/A N/A N/A
Headset cups kit
S212500015
1 HDS SUB, MY22 LEVO HEADSET CUPS KIT, W/ 0-DEG AND +/-1-DEG CUPS
N/A N/A N/A
M No gap stem 1 STEM, JD, JD-ST97Q, 6061-T6, 35 MM,40 MM/50 MM,STEEL,ZINC FINISH BOLT,NO THREAD LOCK
N/A N/A N/A
M Deity copperhead stem (not shown ) 1 DEITY STEM, COPPERHEAD, 26-CPROS35-BK/26-CPROS50-BK, 35/50 MM
N/A N/A N/A
1. Assemble the lower crown race (I) onto the fork steerer tube, make sure the crown race gap is placed at the rear
of the fork. Grease the lower bearing (H) and slide down the steerer tube onto the crown race (I).
2. Grease the upper bearing cup (K) and assemble into the frame. Grease the upper bearing (G) and install into
the headset bearing cup (K). Insert the fork into the bottom of the head tube making sure all of the bearings are
seated correctly. Assemble the compression ring (F), tin plate washer (E), and headset cap (C) followed by stem
spacers (A) and stem (L). Tighten the steerer bolts on the stem to hold the fork in position.
3. Carefully mark the upper edge of the stem on the steerer tube and remove the fork. The cut line is 3 mm below
the mark from the top of the stem on the steerer tube.
To ensure a straight cut, trimming must be done with a handlebar cutting guide.
Do not use a fork steerer pipe cutter as this could create a burr that could prevent the fork from assembling
correctly.
WARNING! To ensure the fork is assembled securely, the position of the fork steerer cut needs to be below
the upper edge of the stem.
