Ulvac GI-M2 - WIB Pin Socket Type (GI-D7) 4,10,15,20,25Ｍ; 4,10Ｍ

94
17.4.6.139BWIB Pin socket type (GI-D7) 4,10,15,20,25ｍ
17.4.7.140BWIN-G Pin socket type (GI-N8) 4,10ｍ
①
Sensor
head side
Pin
②Contorl side
Pin
Wiring
color
Uses
F1
1,2
Black
Fil 1
F
１
5,6
White
Fil Com
F2
3,4
Brown
Fil 2
F2
5,6
Blue
Fil Com
G1
14,15
Red
GRID(150V)
G2
18,19
Yellow
GRID(DEGAS)
IC
BNC
Ion collector
It is available with both WIT and WIB.

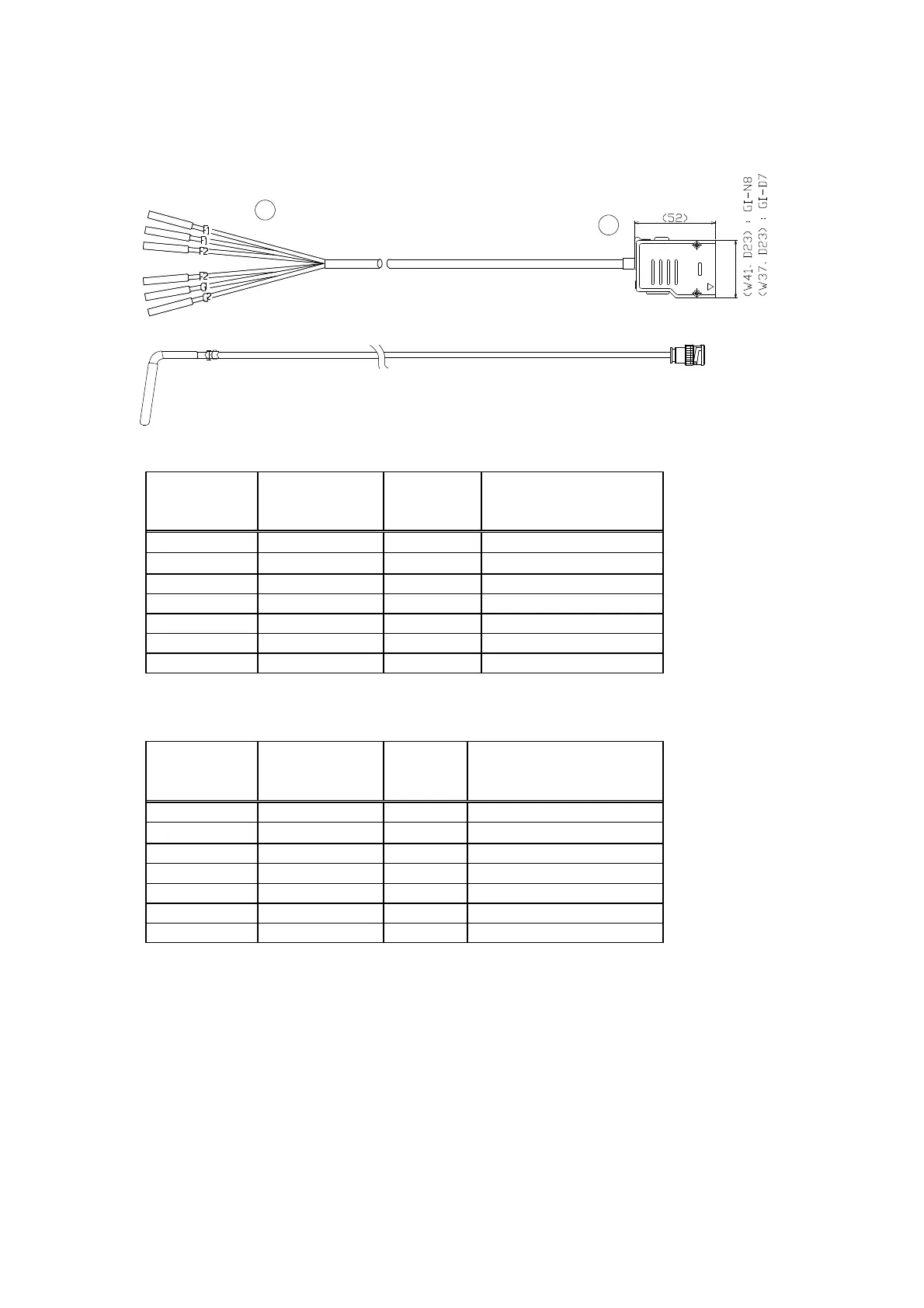

Fig. 17-13 Sensor head cable connection diagram (GI-D7 Pin socket type)
①
Sensor
head side
Pin
②Contorl side
Pin
Wiring
color
Uses
F1
1,2
Black
Fil 1
F
１
5,6
Black
Fil Com
F2
3,4
Red
Fil 2
F2
5,6
Red
Fil Com
G
16,17
Yellow
GRID(150V)
S
18,19
Yellow
Shield
IC
BNC
Ion collector
Fig. 17-14 Sensor head cable connection diagram (GI-N8 Pin socket type)
