4.4.1. Connection of controller (GI-M2) and sensor head

If a heater is wound around the connector and heated,the connector and

cable may be melted. Do not wrap the heater around the connector.

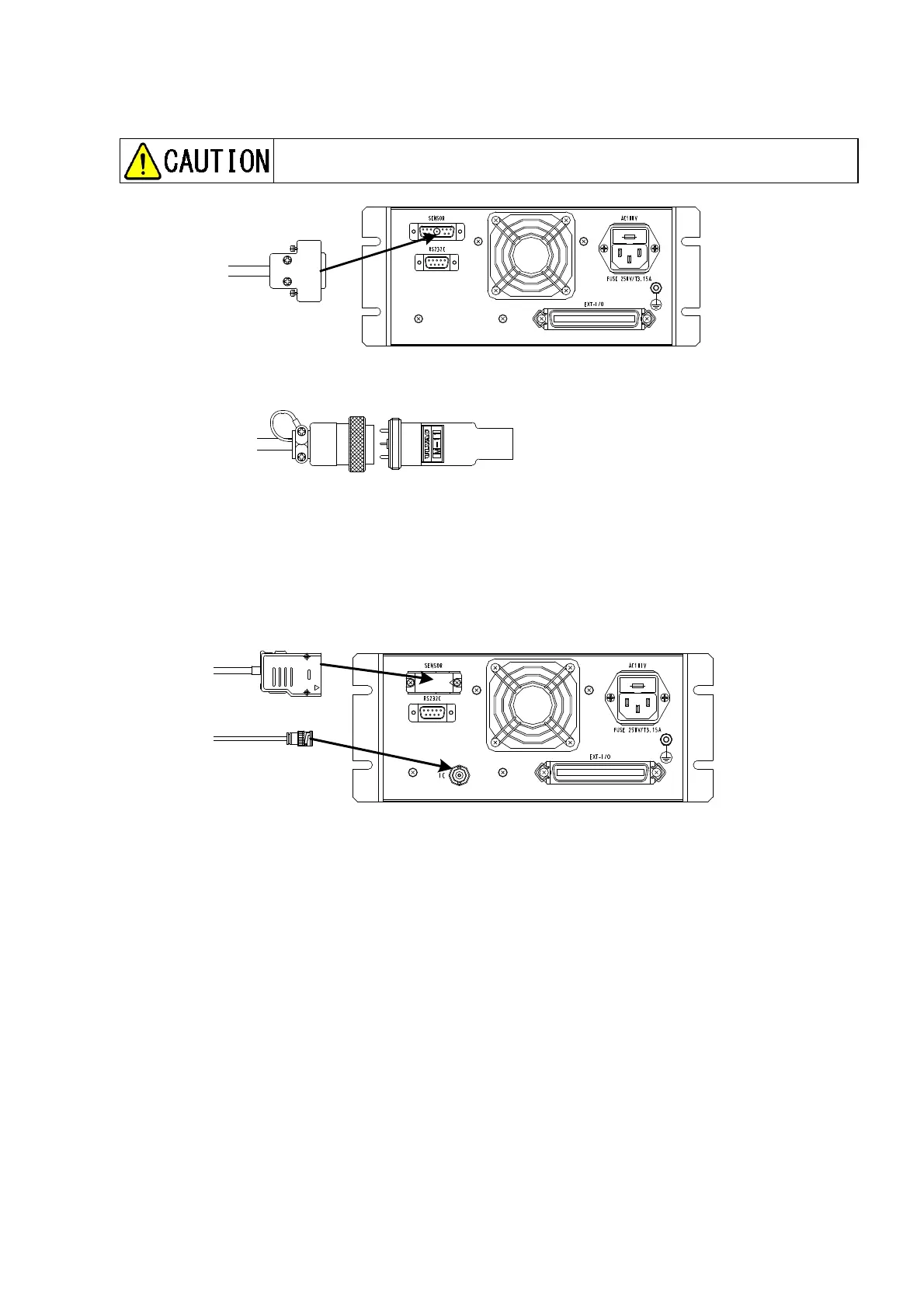

Fig. 4-3 Connection of controller (GI-M2) and sensor head

Avoid installation in a place where temperature (above specified cable temperature) or

humidity is high. The standard operating temperature for the sensor head cable is 150°C.

Pressure can be measured during baking, with the cable connected to the sensor head.

4.4.2. Connection of control and sensor head cable (GI-D7/GI-N8)

Fig. 4-4 Conection of sensor head cable and GI-D7/N8

The sensor head cable is not heat resistant. If the sensor connector area is heated to

above 100°C (in baking or others), disconnect the connector.

Sensor head cable

(

control side)

Sensor head cable

(sensor head side)
