3.2. Front Panel Lamps

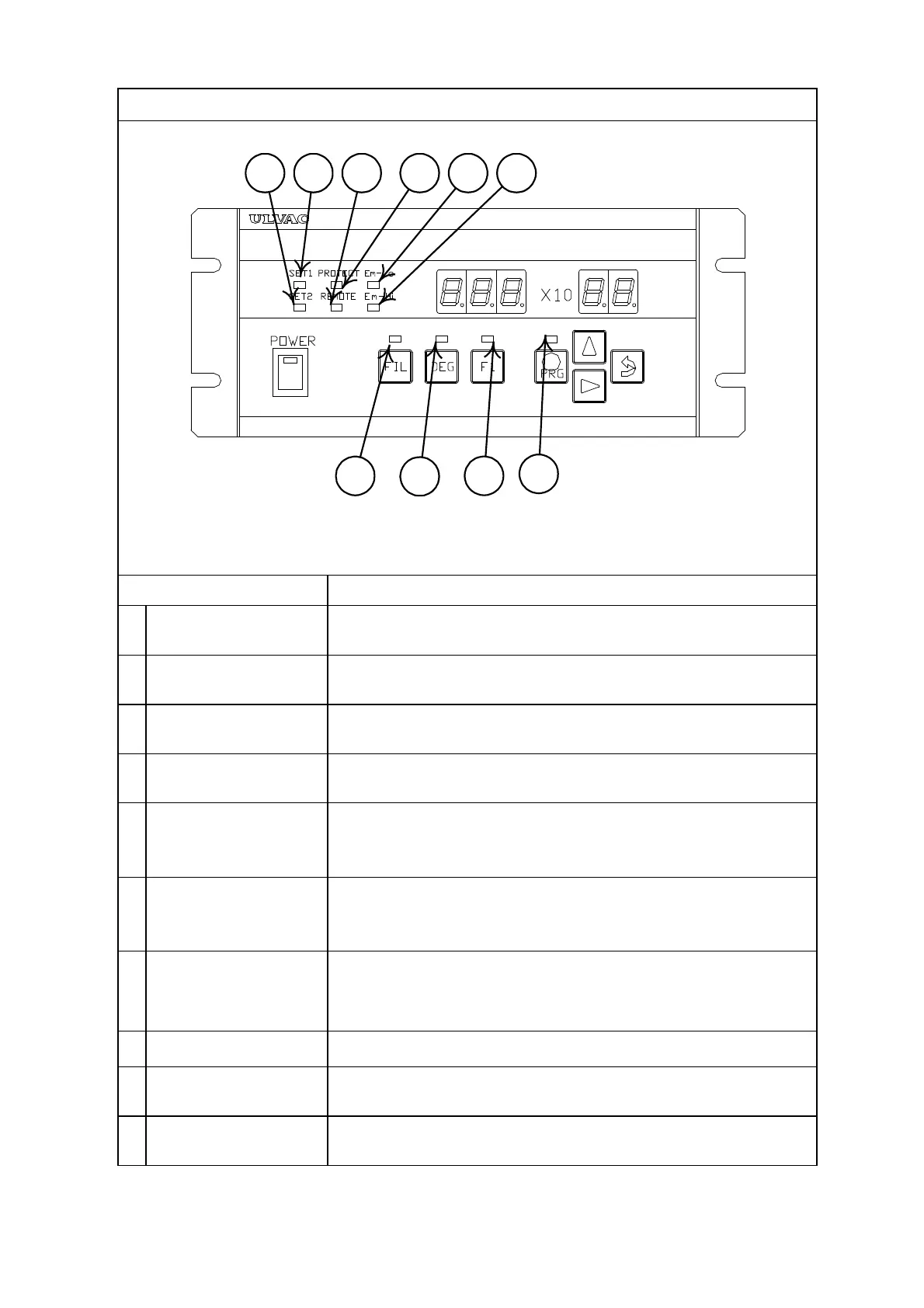

Fig. 3-2 Front panel lamps
Name (Inscription)
Function
①
SET-1 lamp
(SET1)
Lit when set point 1 is activated.
②
SET-2 lamp
(SET2)
Lit when set point 2 is activated.
③
EXT-PROTECT lamp
(PROTECT)
Lit when filament protection is activated by an external
input signal.
④
REMOTE lamp
(REMOTE)
Lit when the gauge is set in the REMOTE status by external
control (external I/O, RS-232C).
⑤
Emission state lamp
(10µA)
GI-M2: Lit when emission current is 10 µA.
GI-N8: Lit when emission current is 0.5 mA.
GI-D7: Not used.
⑥
Emission state lamp
(1mA)
GI-M2: Lit when emission current is 1 mA.
GI-N8: Lit when emission current is 5mA.
GI-N7: Not used.
⑦
Filament lamp
Lit: when the filament is ON and the emission current is
normal.
Blink: When the filament is ON and the emission current is
abnormal.
⑧
DEGAS lamp
Lit when degassing is ON.
⑨
F1 lamp
（GI-N8 Only）
Lit when background processing function by soft X-ray is
effective (X-Ray).
⑩
PROGRAM lamp Lit when in the program setting mode.
1
2
3
4
5
6
7
8
9
10
Pa
