Unify OpenStage 40 User Manual

Getting to know the OpenStage 25
Display

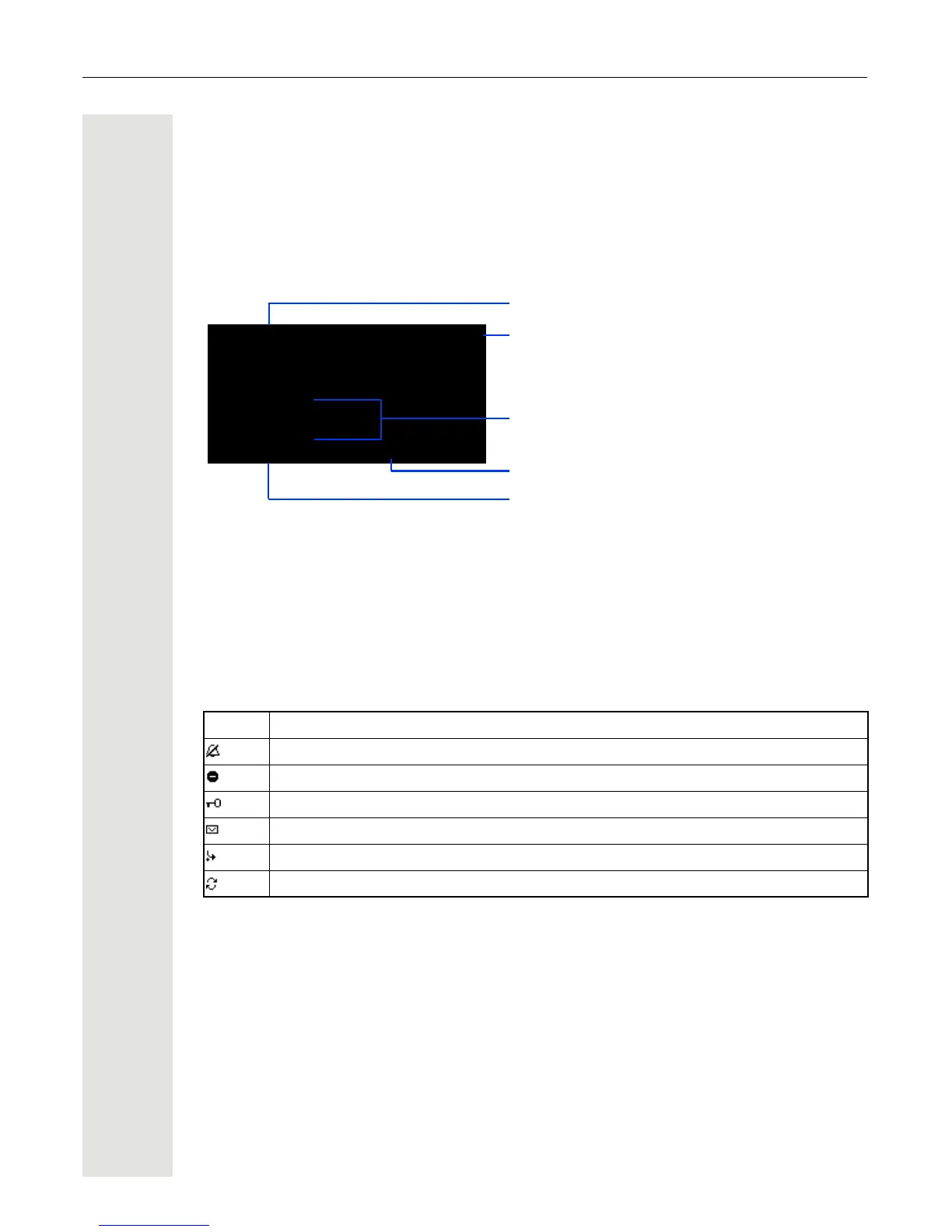

Your OpenStage 40/40 G comes with a tilt-and-swivel black-and-white LCD display. Adjust the tilt
and contrast to suit your needs
Æ Page 120ff.
Idle mode
If there are no calls taking place or settings being made, your OpenStage 40/40 G is in idle mode.
The left area contains the status bar on the first line and is followed by a five-line field for additional
displays.
A logo is displayed in the middle; it can be set up by your administrator.
Icons that appear under the logo inform you about callback requests, voice messages and
activated call forwarding.
The right area shows the labels of programmable sensor keys.
Explanation of the icons
Icon Meaning
The ring tone is deactivated
Æ Page 123
The "Do not disturb" function is activated
Æ Page 78
The phone lock is activated
Æ Page 82
You received new voicemail
Æ Page 29
Call forwarding is active
Æ Page 40
A mobility user is logged on to the phone
Æ Page 89
F
07
10:29 Wed 28.Nov.07
S
K 100168
220870
g
Do not
Mirea, Ch.
Toussaint.
Rüscher
Stahl, Ing
Level 2
Status bar
Sensor key labels
Æ Page 74
Alerts (messages, call forwarding active)
Own phone number
Open the idle menu Æ Page 26

Unify OpenStage 40 Specifications

General

Resolution	240 x 128 pixels
Full duplex	Yes
Camera included	No
Dimensions (WxDxH)	270 x 220 x 70 mm
Networking features	QoS
Supported network protocols	IEEE 802.1Q (VLAN), IEEE 802.1p
Dialer location	Base
Phonebook capacity	- entries
Volume control	Digital
Voice codecs	G.711, G.722
Display number of lines	6 lines
Display number of colors	Monochrome
Product color	Black, Silver
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Certification	CE, EMC EN55022 Cl. B, EN55024, EN61000-4-11, EN61000-3-2, EN60950-1, EMC (FCC) P.15 (CFR 47) Cl. B, UL60950-1/CSA 22.2 No950

Weight and Dimensions

Weight	1068 g
