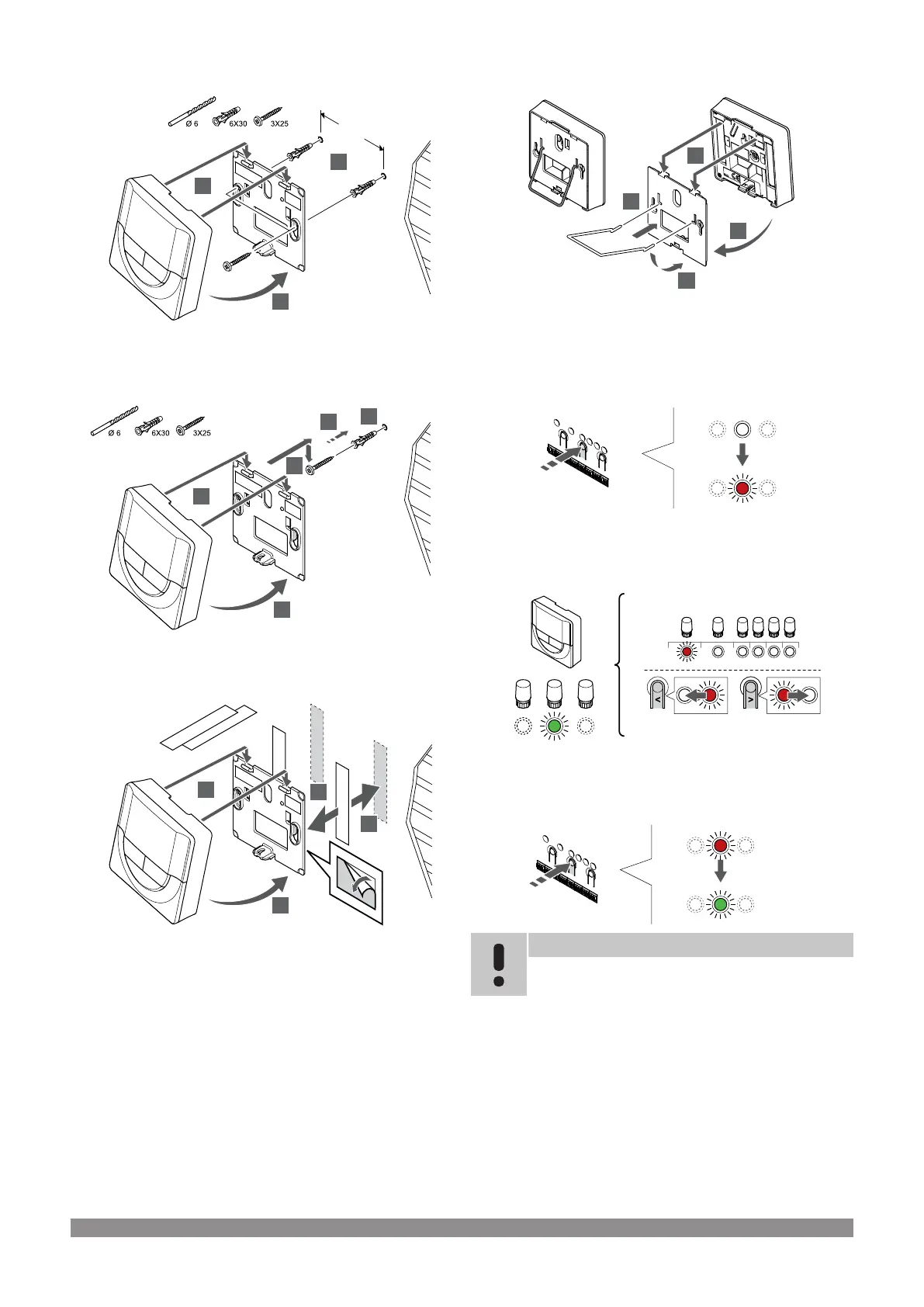

Uponor Smatrix Wave PULSE User Manual

Wall bracket (recommended)
60 mm
1
2
3
SI0000015
Attach the thermostat to the wall using the wall bracket, screws and
wall plugs.
Screw and wall plug
5
1
2
3
4
SI0000014
Attach the thermostat to the wall using the screw and wall plug.
Adhesive strip
60 x 10
1
2
3
4
SI0000013
Attach the thermostat to the wall using the wall bracket and adhesive
strips.
Use table stand instead
1
2
3
4
SI0000028
Attach the table stand to the thermostat using the wall bracket.
Register thermostat to room controller
1. Enter registration mode
3 s
SI0000065
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
2. Select a channel
SI0000066
1 65432
Use buttons < or > to move the pointer (LED flashes red) to a
preferred channel.
3. Lock selected channel
SI0000071
Note
It is recommended to register all channels to the
thermostat at the same time.
Press the OK button to select the channel for registration. The LED
for the selected channel starts flashing green.
Select all channels to be registered to the thermostat and continue to
the next step.
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
43
