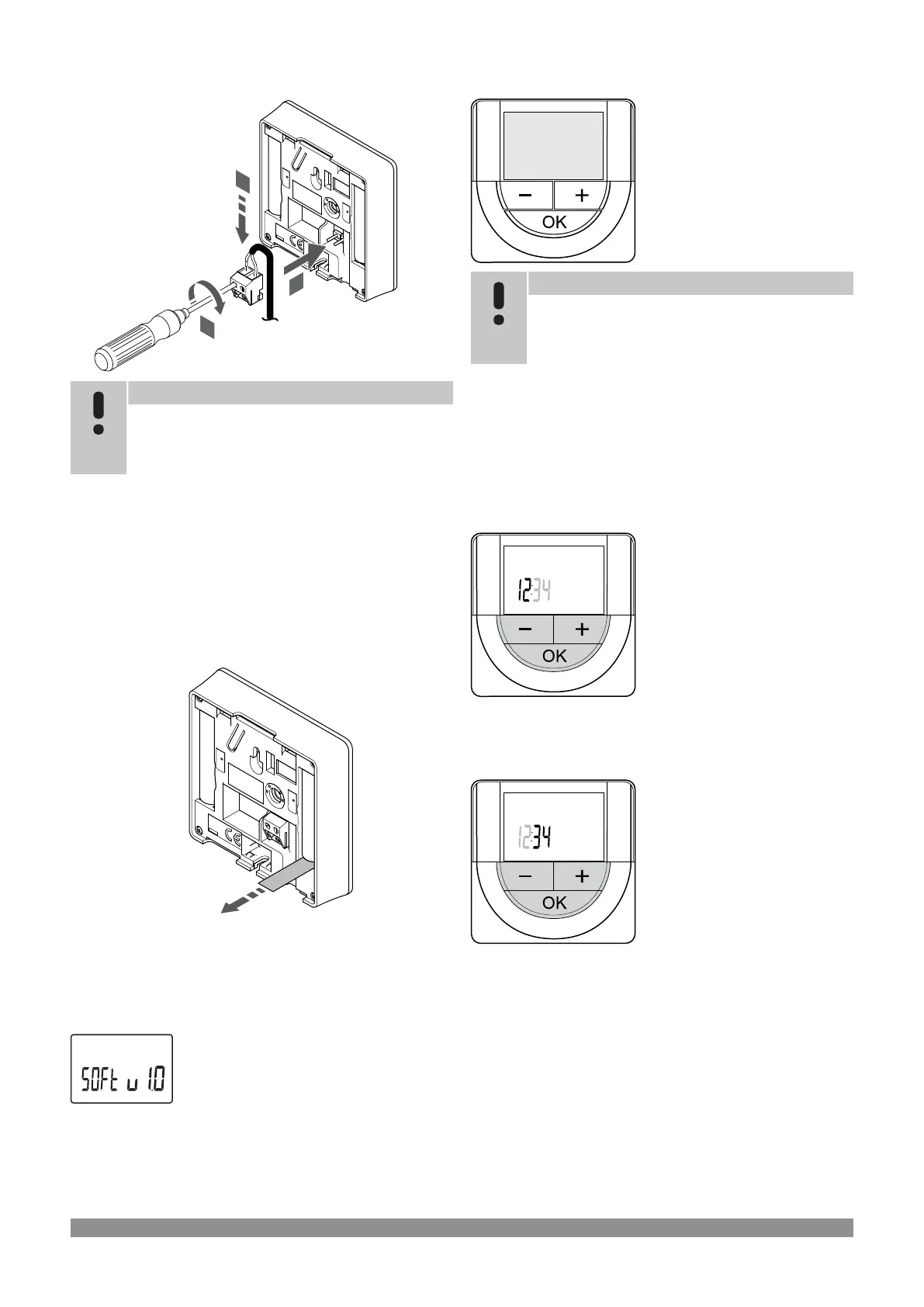

Connect external sensor to thermostat
1
2
3
SI0000047
Note
For accurate temperature: attach the outdoor sensor to
the north side of the building where it is unlikely to be
exposed to direct sunlight. Do not place it close to doors,
windows, or air outlets.
1. Insert the two wires from the sensor cable (non polarized) into
the removable connector.
2. Tighten the screws fixing the wires in the connector.
3. Insert the connector on the input pegs on the thermostat.
The external temperature sensor input can be used for either a floor,
outdoor or remote temperature sensor. Use the software on the
thermostat to select a control mode which corresponds to the use of
the sensor and thermostat.
Start the thermostat
SI0000126
Remove the plastic transportation strips from the batteries to start the
thermostat.
The thermostat use two alkaline 1.5 V AAA batteries which provides
about 2 years of battery life, as long as it is positioned within radio
range of the room controller. Ensure that the batteries are correctly
inserted in the thermostat.
CD0000014
Current software version is displayed during power up.
Set time and date
CD0000006
Note
If no button on the thermostat is pressed for about
8 seconds, while in a submenu, the current values will be
saved and the software exits to the settings menu. About
about 60 seconds later, it exits to run mode.
At first startup, after a factory reset, or after its been left without
batteries too long, the software requires the time and date to be set.
This setting is required to utilise scheduling programs for this
thermostat.
Use buttons - or + to change the value, press the OK button to set the
value and move to the next editable value.
Date and time can also be set later in the settings menu.
1. Set hours
SI0000096
Use buttons - or + to change the value, press the OK button to set the
value and move to the next editable value.
2. Set minutes
SI0000097
Use buttons - or + to change the value, press the OK button to set the
value and move to the next editable value.
