Uponor Smatrix Wave PULSE User Manual

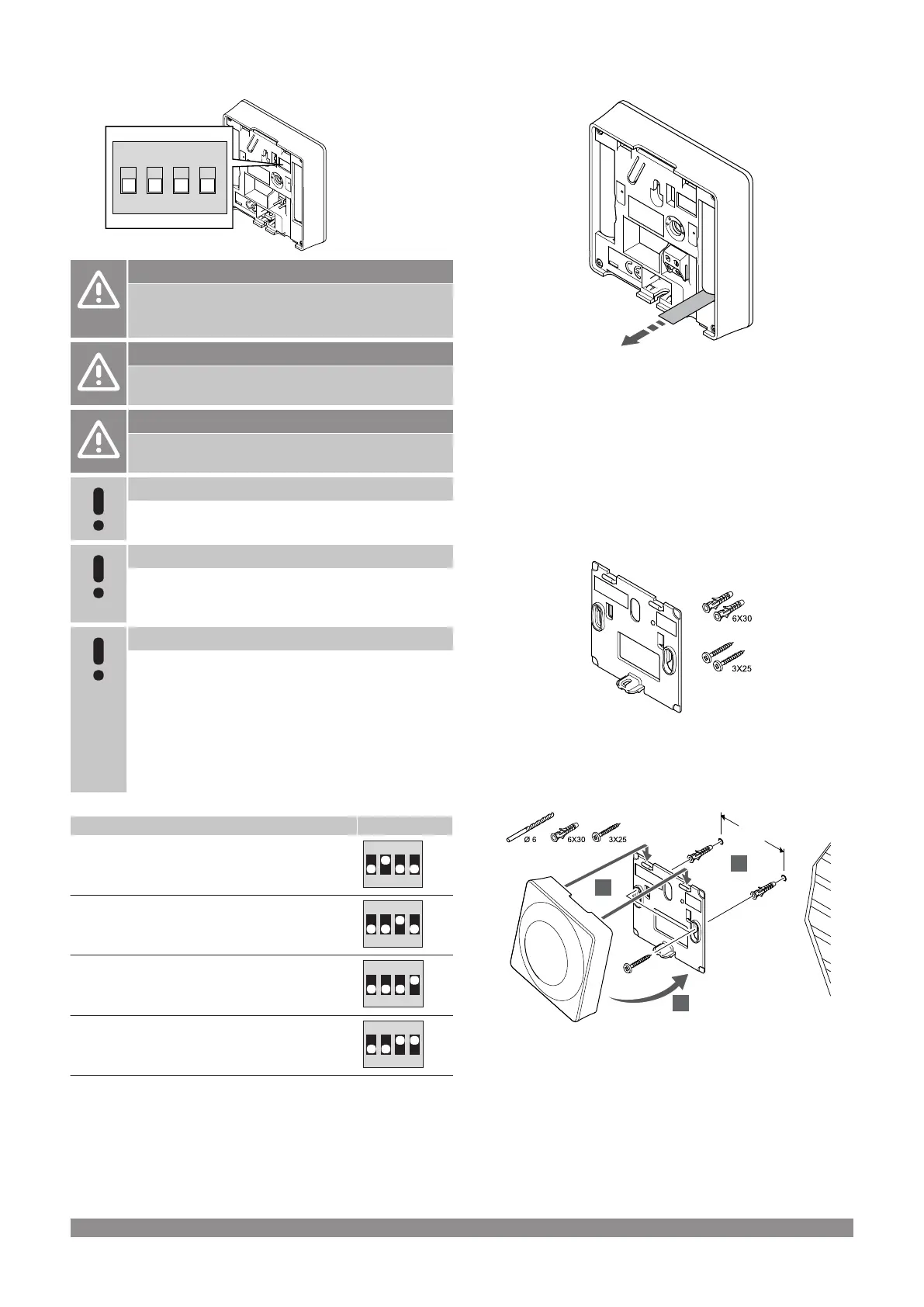

DIP switch
1 2 3 4
ON DIP
CD0000001
Caution!
If more than one room controller is available in the
system, register the thermostat as a system device to the
master room controller.
Caution!
The DIP switch in the thermostat must be set before it is
registered.
Caution!
The switches must be set to one of the available
functions, otherwise the thermostat cannot be registered.
Note
When registering the thermostat as a system device, it
will no longer work as a standard room thermostat.
Note
The external signal can be connected to up to four room
controllers, working in parallel. Reducing the number of
heating/cooling switches needed in the system.
Note
Use only one Comfort/ECO switch in the system.
• Connecting external Comfort/ECO switch to the
system (public thermostat system device, or GPI),
disables Forced ECO in the Uponor Smatrix PULSE
app.
• Connecting the external Comfort/ECO switch via the
public thermostat system device, disables the
Comfort/ECO option in the GPI.
Set the DIP switch according to the function of the thermostat.
Thermostat function Switch
Outdoor temperature sensor
1 2 3 4
ON DIP
Supply temperature sensor for heating/cooling switch-
over function (requires communication module)
1 2 3 4
ON DIP
Sensor input for Comfort/ECO switch-over function
(input closed = ECO mode)
1 2 3 4
ON DIP
Sensor input for heating/cooling switch-over function
(input closed = cooling mode)
1 2 3 4
ON DIP
Start the thermostat
SI0000126
Remove the plastic transportation strips from the batteries to start the
thermostat.
The thermostat use two alkaline 1.5 V AAA batteries which provides
about 2 years of battery life, as long as it is positioned within radio
range of the room controller. Ensure that the batteries are correctly
inserted in the thermostat.
The thermostat will perform a self test, for about 10 seconds, when
starting up. The system will be blocked for input and the thermostat
LED flashes during this period.
Attach thermostat to the wall
CD0000004
The thermostat is delivered in a kit with screws, wall plugs, and a wall
bracket, presenting several options of attaching the thermostat to the
wall.
Wall bracket (recommended)
60 mm
1
2
3
SI0000018
Attach the thermostat to the wall using the wall bracket, screws and
wall plugs.
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
53
