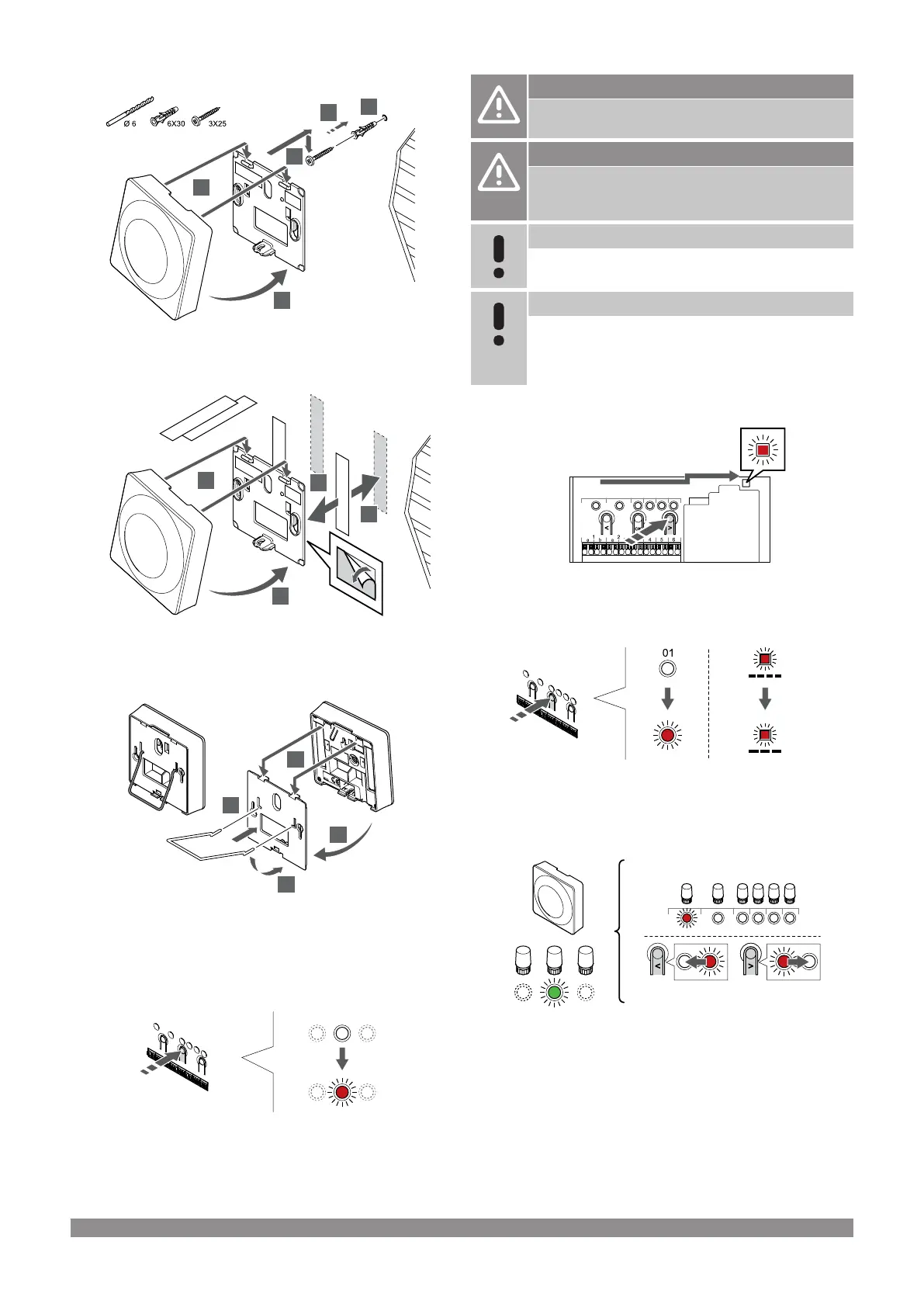

Uponor Smatrix Wave PULSE User Manual

Screw and wall plug
5
1
2
3
4
SI0000017
Attach the thermostat to the wall using the screw and wall plug.
Adhesive strip
60 x 10
1
2
3
4
SI0000016
Attach the thermostat to the wall using the wall bracket and adhesive
strips.
Use table stand instead
1
2
3
4
SI0000028
Attach the table stand to the thermostat using the wall bracket.
Register thermostat to room controller
1. Enter registration mode
3 s
SI0000065
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
Caution!
The DIP switch in the thermostat must be set before it is
registered.
Caution!
If more than one room controller is available in the
system, register the thermostat as a system device to the
master room controller.
Note
It is recommended to register at least one room
thermostat before registering a system device.
Note
If registering a public thermostat as a system device with
various functions, the thermostat only acts as a remote
unit. It does not control the room temperature in the room
where it is placed.
2. Move the channel pointer to the power LED
SI0000082
Use buttons < or > to move the pointer to the power LED (LED
flashes red).
3. Enter system device registration mode
SI0000083
Press the OK button to enter system device registration mode (power
LED). The power LED starts flashing according to the pattern long
blink, short pause, long blink. Channel 1 starts flashing red.
4. Select a channel
SI0000067
1 65432
Use buttons < or > to move the pointer (LED flashes red) to a
preferred channel.
54
|
Uponor Smatrix Wave PULSE
|
Installation and operation manual

Uponor Smatrix Wave PULSE Specifications

General

Type	Wireless Temperature Controller
Communication Protocol	RF (Radio Frequency)
Compatibility	Uponor Smatrix Wave system
Operating Temperature Range	0°C to 50°C
Display	LCD
Control	Wireless
