NOTE!
See jumper selections below. More information in the product's User Manual.
Jumper block X3:
CMA and CMB grounding
CMB connected to GND
CMA connected to GND
CMB isolated from GND
CMA isolated from GND
CMB and CMA internally
connected together,isolated
from GND
= Factory default

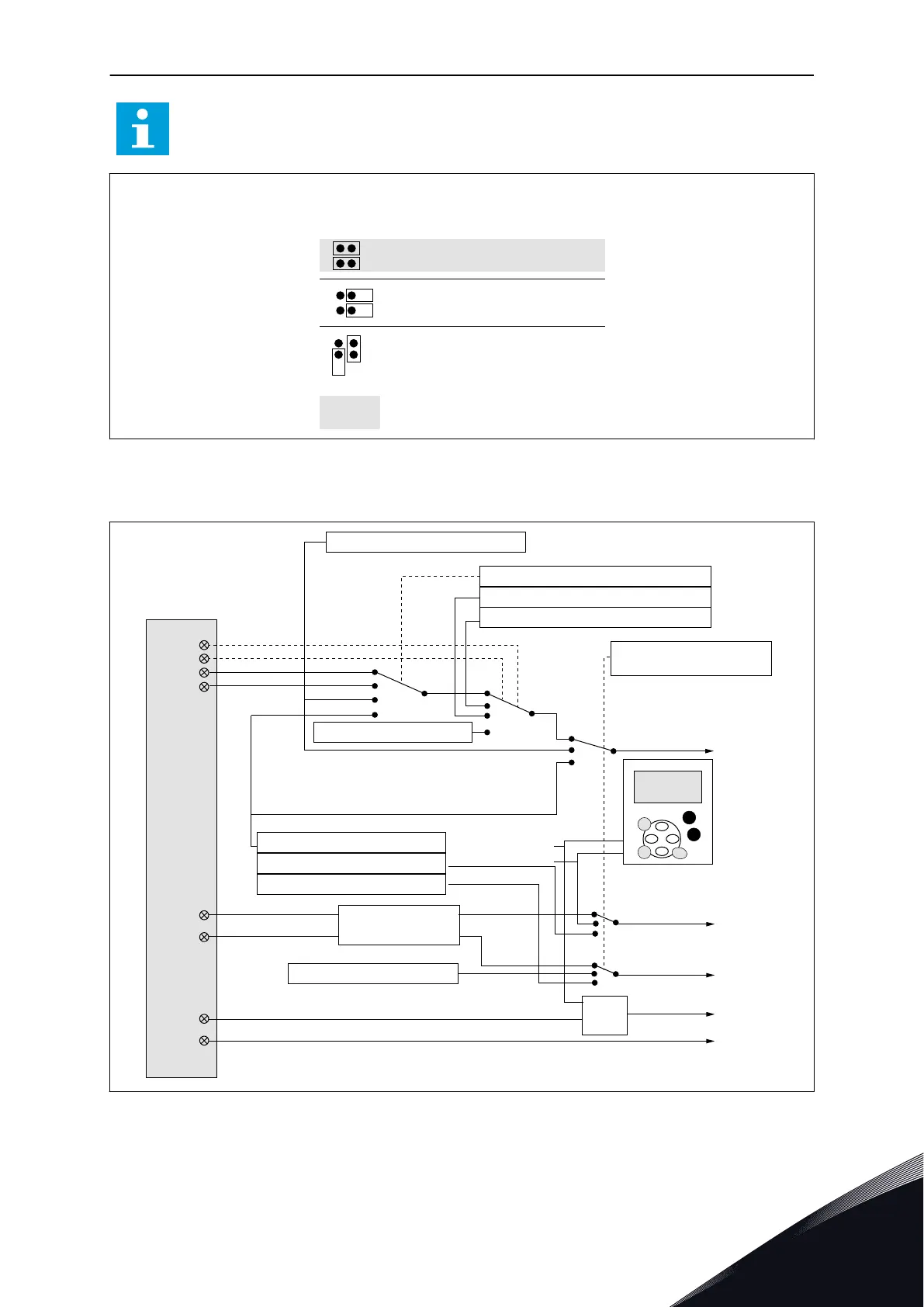

Fig. 2: Jumper selections
1.3 CONTROL SIGNAL LOGIC IN BASIC APPLICATION
DIN4
DIN5
AI1
AI2
DIN1
DIN2
DIN6
DIN3
≥ 1
3.2 Keypad reference
3.1 Control place
Start forward
Start reverse
Start/Stop
Reverse
Internal Start/Stop
Internal reverse
Internal fault reset
Fault reset input
External fault input (programmable)
Reset button
Start/Stop buttons
Reference from fieldbus
Start/Stop from fieldbus
Direction from fieldbus
3.3 Keypad direction
2.14 I/O Reference
2.19 Preset Speed 2
2.18 Preset Speed 1
2.2 Max Frequency
Start/Stop and
reverse logic
Internal frequency
reference
Fig. 3: Control signal logic of the Basic Application
BASIC APPLICATION VACON · 13
24-HOUR SUPPORT +358 (0)201 212 575 · EMAIL: VACON@VACON.COM
