EXAMPLE
You want to connect the digital output function Reference fault/warning (parameter 2.3.3.7)
to the digital output DO1 on the basic board OPTA1 (see the product's User Manual).

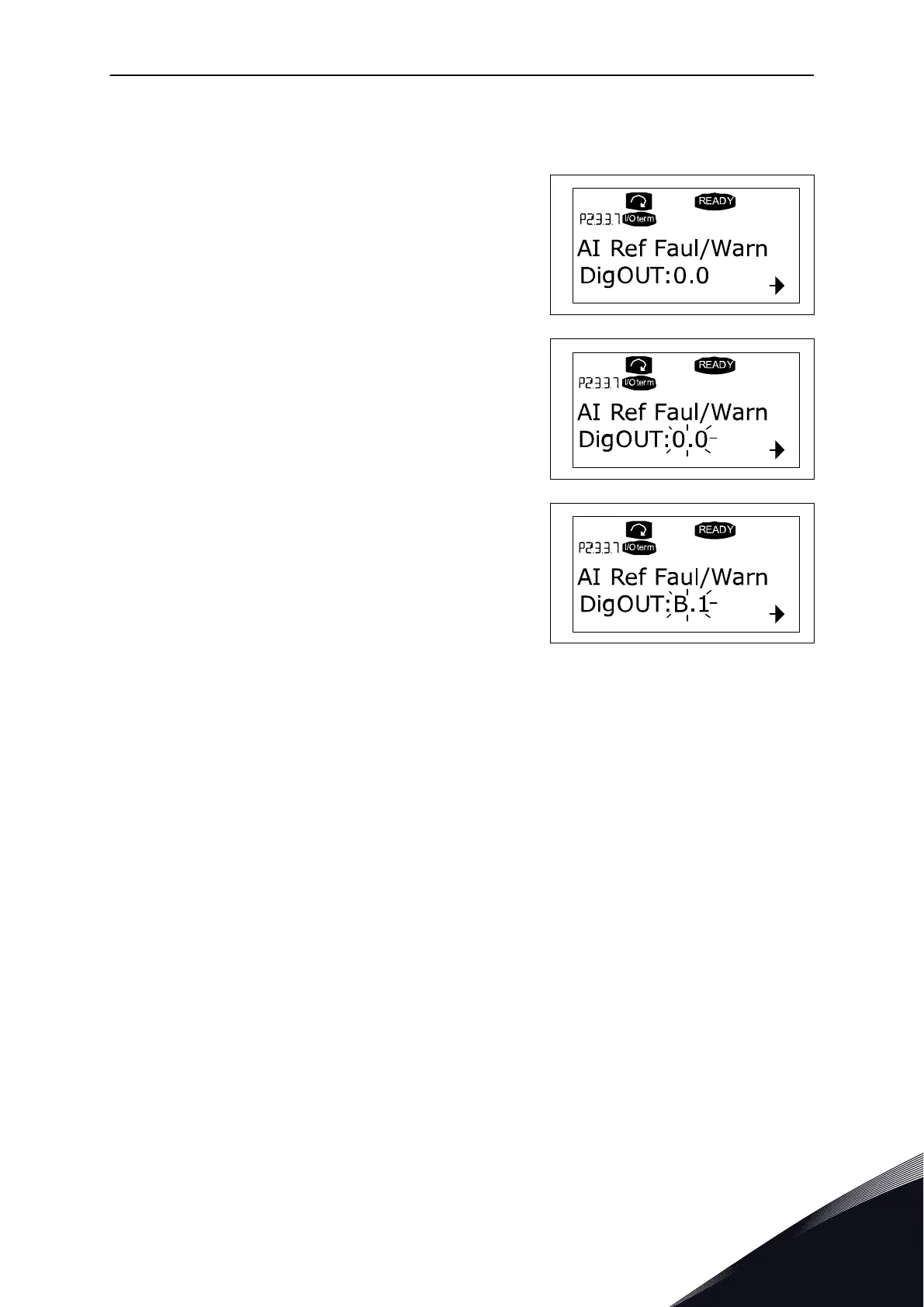

1 Find the parameter 2.3.3.7 on the keypad. Press the
Menu button right once to enter the edit mode. On
the value line, you will see the terminal type on the
left (DigIN, DigOUT, An.IN, An.OUT) and on the
right, the present input/output the function is
connected to (B.3, A.2 etc.), or if not connected, a
value (0.#).
2 When the value is blinking, hold down the Browser
button up or down to find the desired board slot
and signal number. The program will scroll the
board slots starting from 0 and proceeding from A
to E and the I/O selection from 1 to 10.
3 Once you have set the desired value, press the
Enter button once to confirm the change.
8.9.2 DEFINING A TERMINAL FOR A CERTAIN FUNCTION WITH NCDRIVE
PROGRAMMING TOOL
If you use the NCDrive Programming Tool for parametrizing you will have to establish the
connection between the function and input/output in the same way as with the control panel.
Just pick the address code from the drop-down menu in the Value column.
PARAMETER DESCRIPTIONS VACON · 375
24-HOUR SUPPORT +358 (0)201 212 575 · EMAIL: VACON@VACON.COM
