Vacon NX series Applications Manual

4.3 CONTROL SIGNAL LOGIC IN MULTI-STEP SPEED CONTROL APPLICATION
DIN4
DIN5
AI1
AI2
DIN1
DIN2
DIN3
DIN6
DIN3
DIN3
3.2 Keypad reference
2.1.11 I/O Reference
2.1.12 Keypad Ctrl Reference
2.1.13 Fieldbus Ctrl Reference
2.1.15 Preset Speed 1
...2.1.29 Preset Speed 15
3.1 Control place
Internal frequency
reference
Start forward
(programmable)
Start reverse
(programmable)
Start/Stop
Reverse
Internal Start/Stop
Internal reverse
Internal fault reset
Fault reset input
Reset button
Start/Stop buttons
Reference from fieldbus
Start/Stop from fieldbus
Direction from fieldbus
3.3 Keypad direction
Preset Speed 1
Preset Speed 2
Preset Speed 3
Preset Speed 4
2.1.14 Jogging speed
reference
(programmable)
≥ 1
Programmable
Start/Stop and
reverse logic

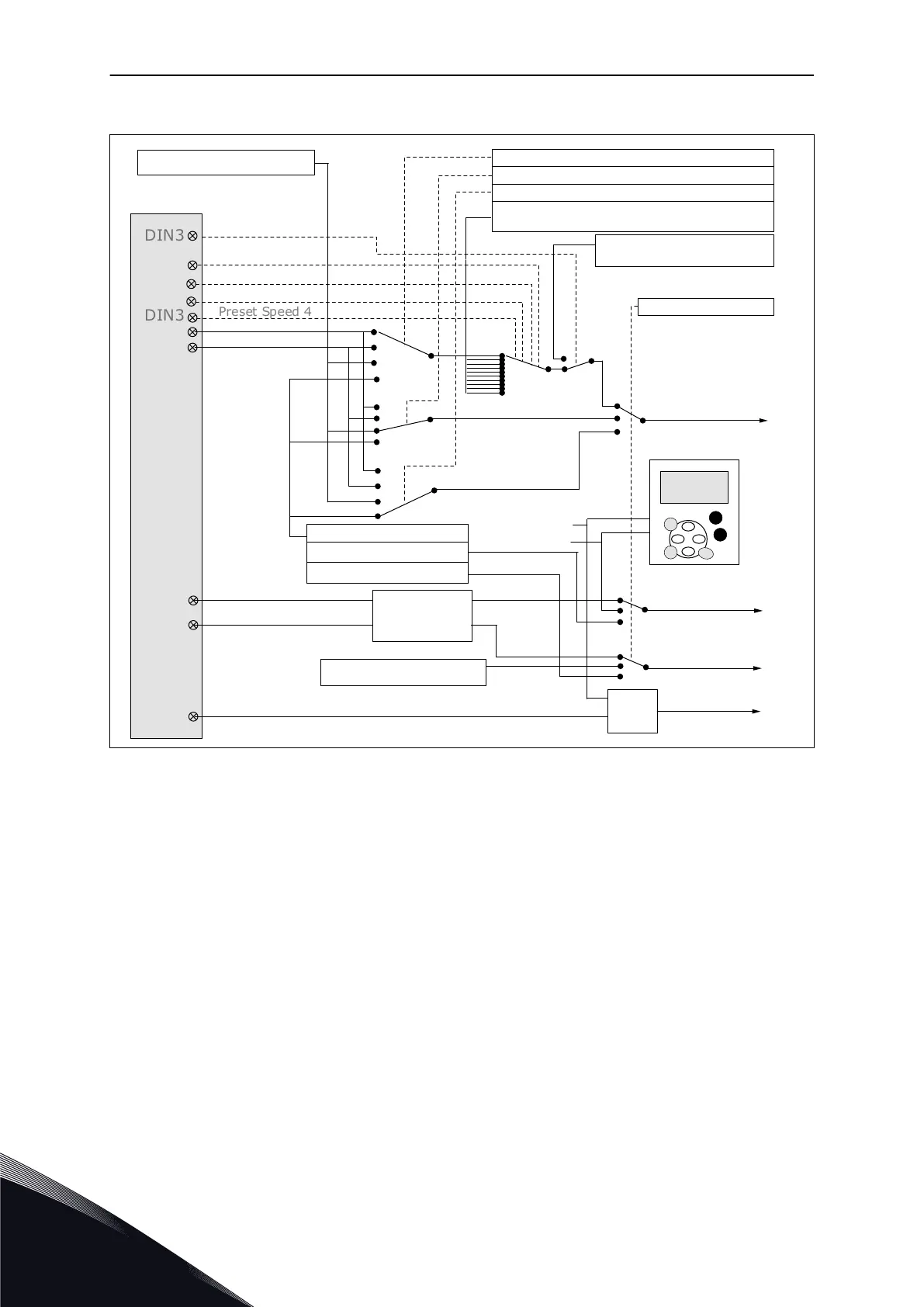

Fig. 12: Control signal logic of the Multi-step Speed Application
4.4 MULTI-STEP SPEED CONTROL APPLICATION - PARAMETER LISTS
4.4.1 MONITORING VALUES (CONTROL KEYPAD: MENU M1)
The monitoring values are the actual values of parameters and signals as well as statuses
and measurements. Monitoring values cannot be edited.
VACON · 72 MULTI-STEP SPEED CONTROL APPLICATION
4
TEL. +358 (0)201 2121 · FAX +358 (0)201 212 205
