Vacon NX series Applications Manual

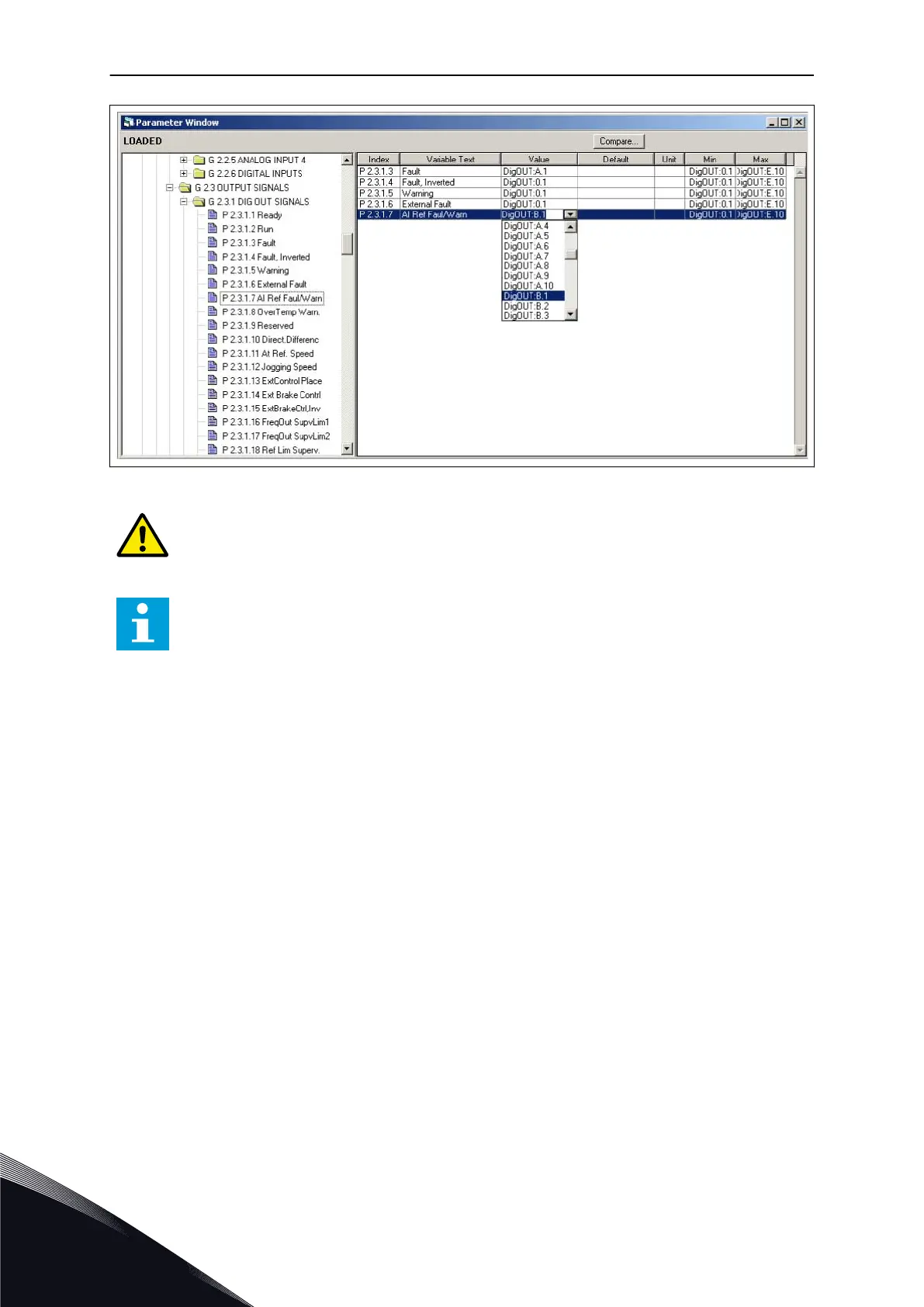

Fig. 95: Screenshot of NCDrive programming tool; Entering the address code
CAUTION!
Be ABSOLUTELY sure not to connect two functions to one and same output in order
to avoid function overruns and to ensure flawless operation.
NOTE!
The inputs, unlike the outputs, cannot be changed in RUN state.
8.9.3 DEFINING UNUSED INPUTS/OUTPUTS
All unused inputs and outputs must be given the board slot value 0 and the value 1 also for
the terminal number. The value 0.1 is also the default value for most of the functions.
However, if you want to use the values of a digital input signal for e.g. testing purposes only,
you can set the board slot value to 0 and the terminal number to any number between 2-10 to
place the input to a TRUE state. In other words, the value 1 corresponds to 'open contact' and
values 2 to 10 to 'closed contact'.
In case of analogue inputs, giving the value 1 for the terminal number corresponds to 0%
signal level, value 2 corresponds to 20%, value 3 to 30% and so on. Giving value 10 for the
terminal number corresponds to 100% signal level.
VACON · 376 PARAMETER DESCRIPTIONS
8
TEL. +358 (0)201 2121 · FAX +358 (0)201 212 205

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
