Vaisala Indigo500 Series - Figure 41 Materials for Recycling; Table 31 Materials for Recycling

To Next Page

To Previous Page

Electrical and electronical waste

Metal waste

1 3 4 5 6 7 11108 92

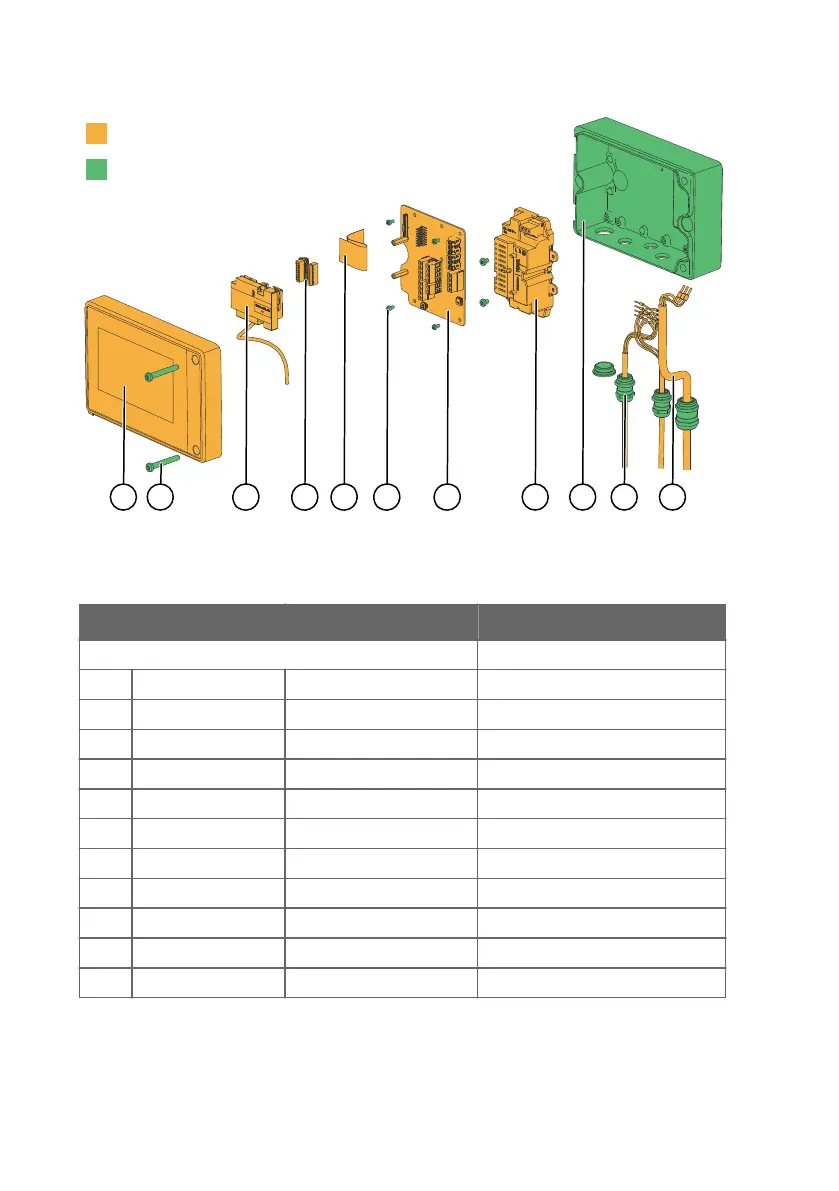

Figure 41 Materials for recycling

Table 31 Materials for recycling

Part Material Recycling

Device parts

1 Top enclosure Aluminium alloy Electrical and electronical waste

2 Screws Stainless steel Metal waste

3 Barometer module Various materials Electrical and electronical waste

4 Ribbon cable Various materials Electrical and electronical waste

5 Flat ﬂex ribbon cable Various materials Electrical and electronical waste

6 Screws Stainless steel Metal waste

7 PCB Stainless steel A4 Electrical and electronical waste

8 Power-2 module Various materials Electrical and electronical waste

9 Bottom enclosure Aluminium alloy Metal waste

10 Cable glands Nickel-plated brass Metal waste

11 Cables Various materials Electrical and electronical waste

Indigo510, Indigo520 User Guide M212287EN-N

112
