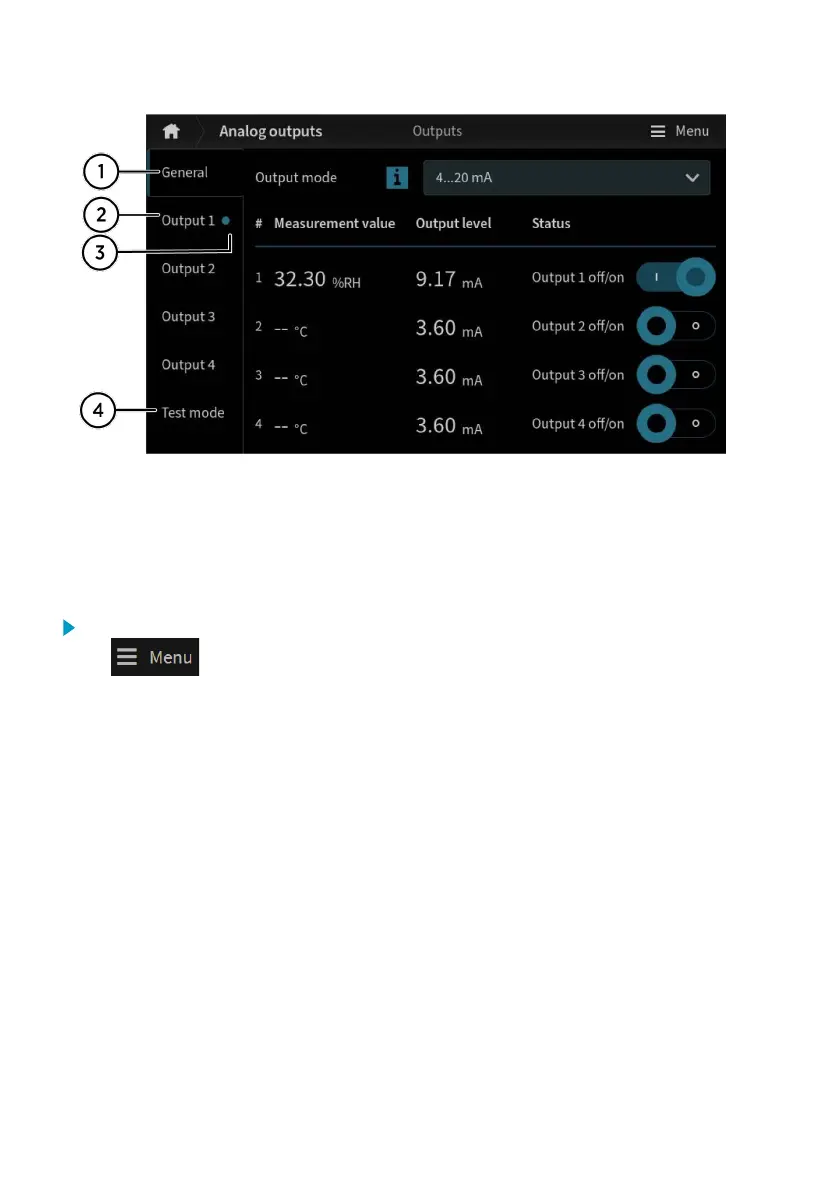

Figure 32 Analog outputs configuration menu on touchscreen, General tab active
1 The General tab contains the settings that are common for all analog output channels.
2 The Output 1 … 4 tabs contain individual settings for each analog output channel.
3 A circle next to the channel name indicates that the channel is on.
4 The Test mode tab contains the settings for testing each analog output channel.
1. Select the configuration menu symbol at the upper right corner of the touchscreen.
2. Select Inputs and outputs > Analog outputs.
3. In General > Output mode select the current or voltage range for the outputs.
4. In the tabs Output 1 … 4, select the output channel you want to configure.
