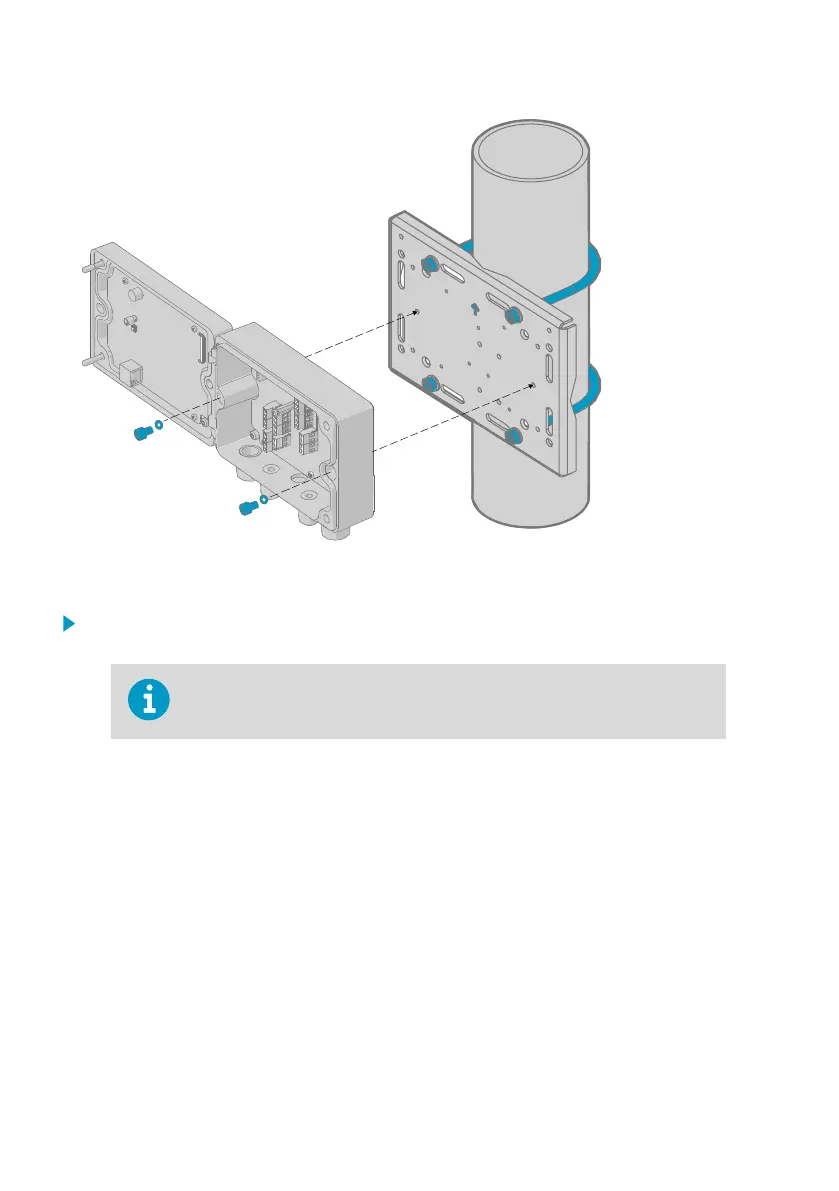

Figure 13 Attaching transmitter to mounting plate - vertical pole mounting
1. Place the fixing brackets around the pole and attach the mounting plate to the brackets
using 4 mounting nuts.
Make sure that the arrow in the mounting plate points upwards.
2. Open the 2 hex screws on the cover of the transmitter using a 4-mm Allen key.
3. Open the transmitter cover.
4. Attach the transmitter to the mounting plate using 2 × 14-mm screws and a 5-mm Allen
key. Place nylon washers under the screws to protect the surface of the transmitter.
Indigo510, Indigo520 User Guide M212287EN-N
34
