Vaisala Indigo500 Series - Ethernet Connector Wiring

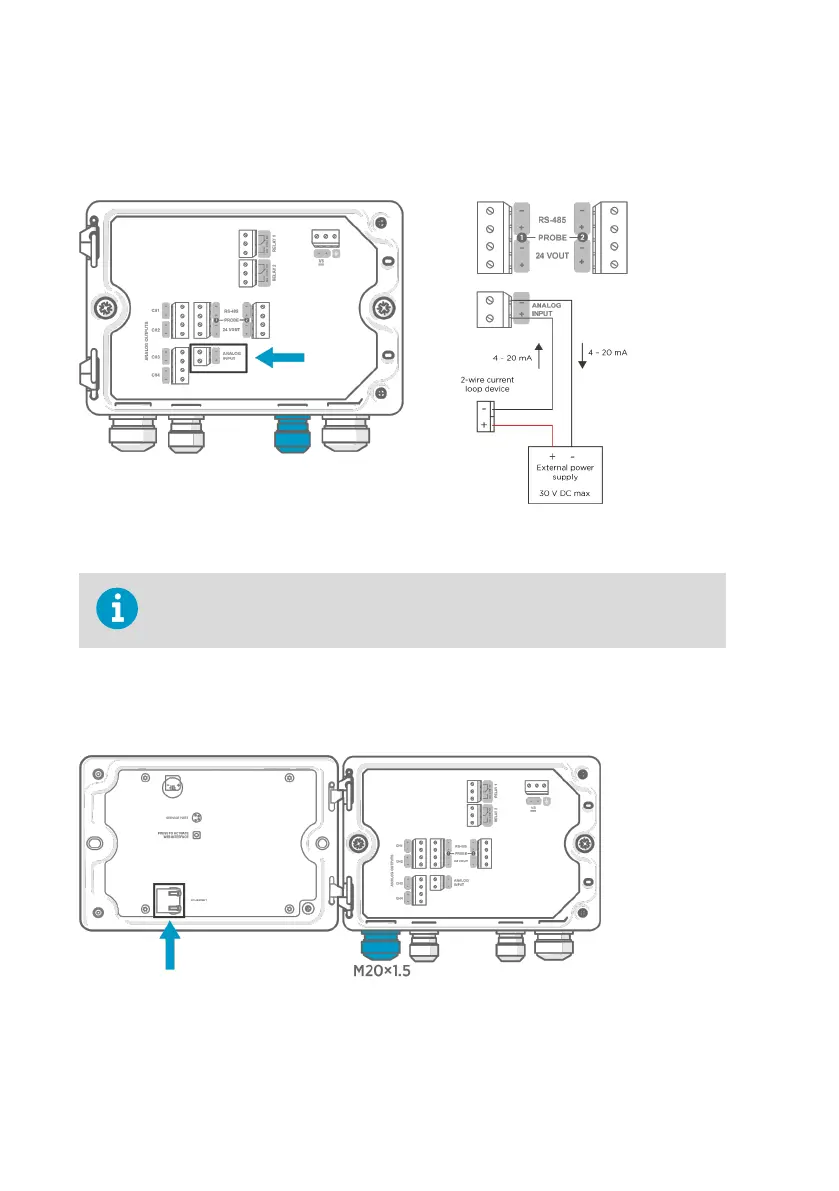

3.3.5.2 Analog input wiring with external power supply
For the M16×1.5 cable glands ordered together with the transmitter from Vaisala, the cable
diameter is 2.0 … 6.0 mm (0.08 … 0.24 in). Tightening torque for the cable gland is 6 Nm.
3.3.6 Ethernet connector and lead-through
You must use a shielded cable to meet the rated EMC performance of the device.
Before connecting wires or cables, make sure that the transmitter is powered o.
The 8P8C (RJ45) Ethernet connector is located on the inside of the transmitter cover. The
supported standards are 10BASE-T and 100BASE-TX.
For the M20×1.5 cable gland with split bushing, the cable diameter is 7 mm (0.28 in).
