More information
‣
Configuring analog outputs on touchscreen (page 75)
6.4 Configuring analog input on touchscreen
Analog input is not available in Indigo510 transmitters or transmitters that are
powered with Power over Ethernet (PoE).
Only 1 measurement probe can be connected to the transmitter when you power
the analog input device through Indigo520 probe 2 connection terminal. The
measurement probe has to be connected to probe 1 connection terminal.
The Indigo520 transmitter has 1 analog current (mA) input.
Before you start, make sure that the probes you want to use are connected to the transmitter.

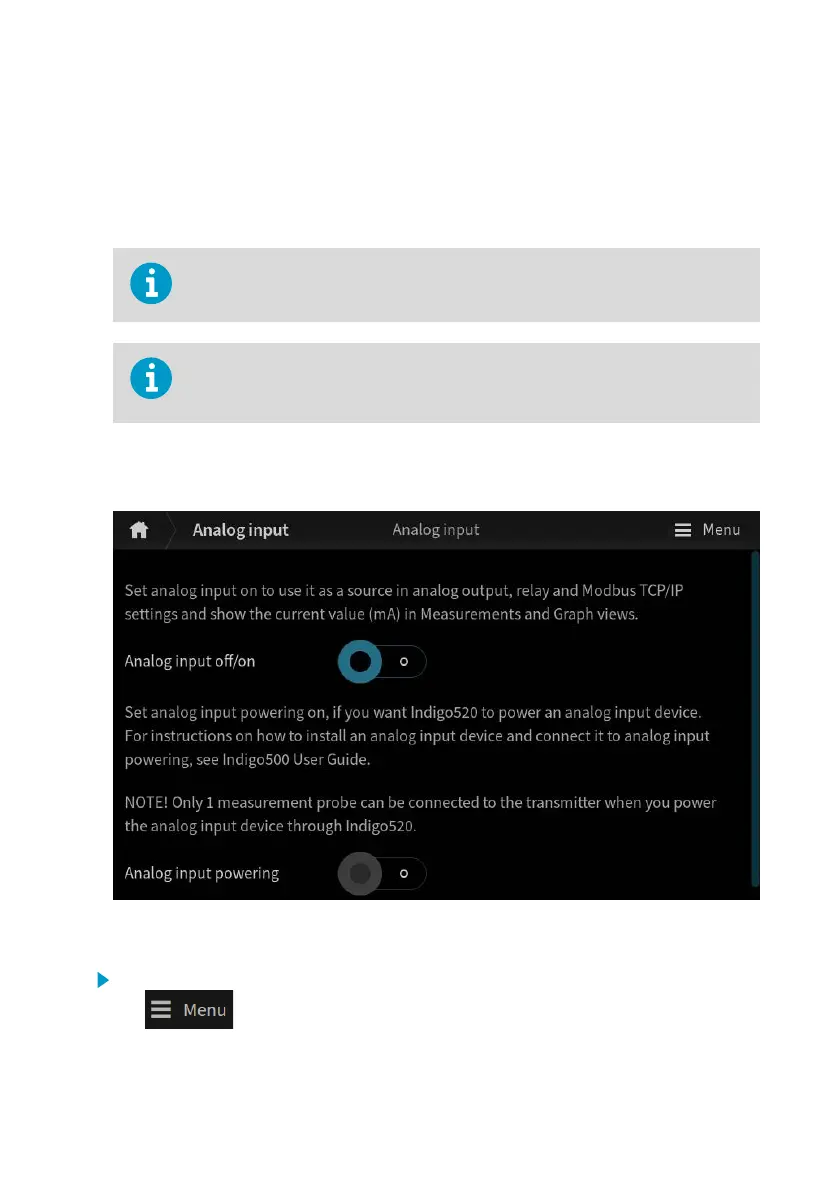

Figure 33 Analog input configuration menu on touchscreen
1. Select the configuration menu symbol at the upper right corner of the touchscreen.
2. Select Inputs and outputs > Analog input.
Chapter 6 – Configuring transmitter using touchscreen display
79
