4.2 Monitoring

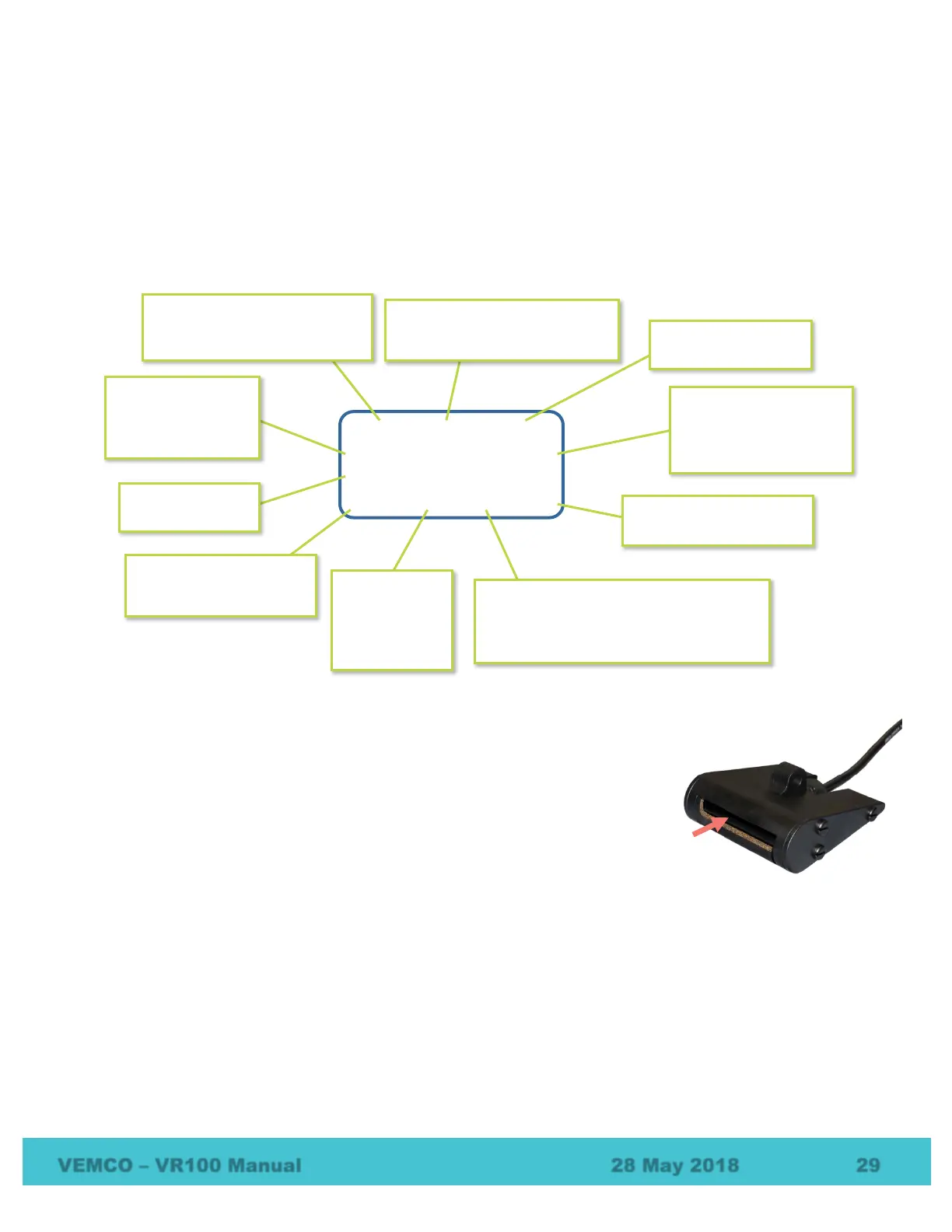

The Monitor feature displays real-time information, allowing active tags to be monitored or tracked. A
sample of how the screen appears in Monitor mode is shown below with labels identifying the information
shown on the screen. Further explanation of the information is given in the section 6.4.
4.2.1 Monitor Screen
4.2.2 Manually Tracking a Tag
Tracking a tagged marine animal requires a directional hydrophone. The VR100
receiver is compatible with the VH110 directional hydrophone. The directional
hydrophone must be mounted on the end of a pole so it can be rotated. It’s also
helpful to mark which section of pole is facing in the same direction as the black,
shiny section of the hydrophone that’s surrounded by cork (see arrow in photo
above). This black section is the signal sensitive section of the hydrophone.
After a channel in the VR100 has been setup to detect the tag (see section 2.3) and the tag has been deployed,
use the steps below to track the tag using the VR100.
LT: 47 S3 07:23:11
A69-9002 63dB
▊▊▊
# 13643 0.3546 m/s
2
Near CH1 A24 Mute
Last Time: Last detection elapsed
time, in seconds. Will display “999”
if no recent detections.
Transmitter code
space (coded tags) or
frequency (continuous
tags).
Tag ID number
and/or sensor data
Detection Parameter:
Near, Norm, or Far (more in
section 6.9).
Time of last detection
(hh:mm:ss)
Signal Strength: relative
strength of received signal,
between 0 -105 dB, with
bar graph
Channel
Number:
press
number on
keypad to select
channel.
Gain Level: “M” indicates manual gain and
“A” indicates automatic gain (AGC). Number
indicates amount of gain receiver is using, in
decibels (dB).
Mute Audio: toggles on and
off (Mute button).
Coded ping train identification:
indicates which part of coded ping
train is received.
