Ver-Mac 2016 V-Touch Controller User Manual, V3.0 7

4 Display a Message

4.1 Explore the Select Message Screen

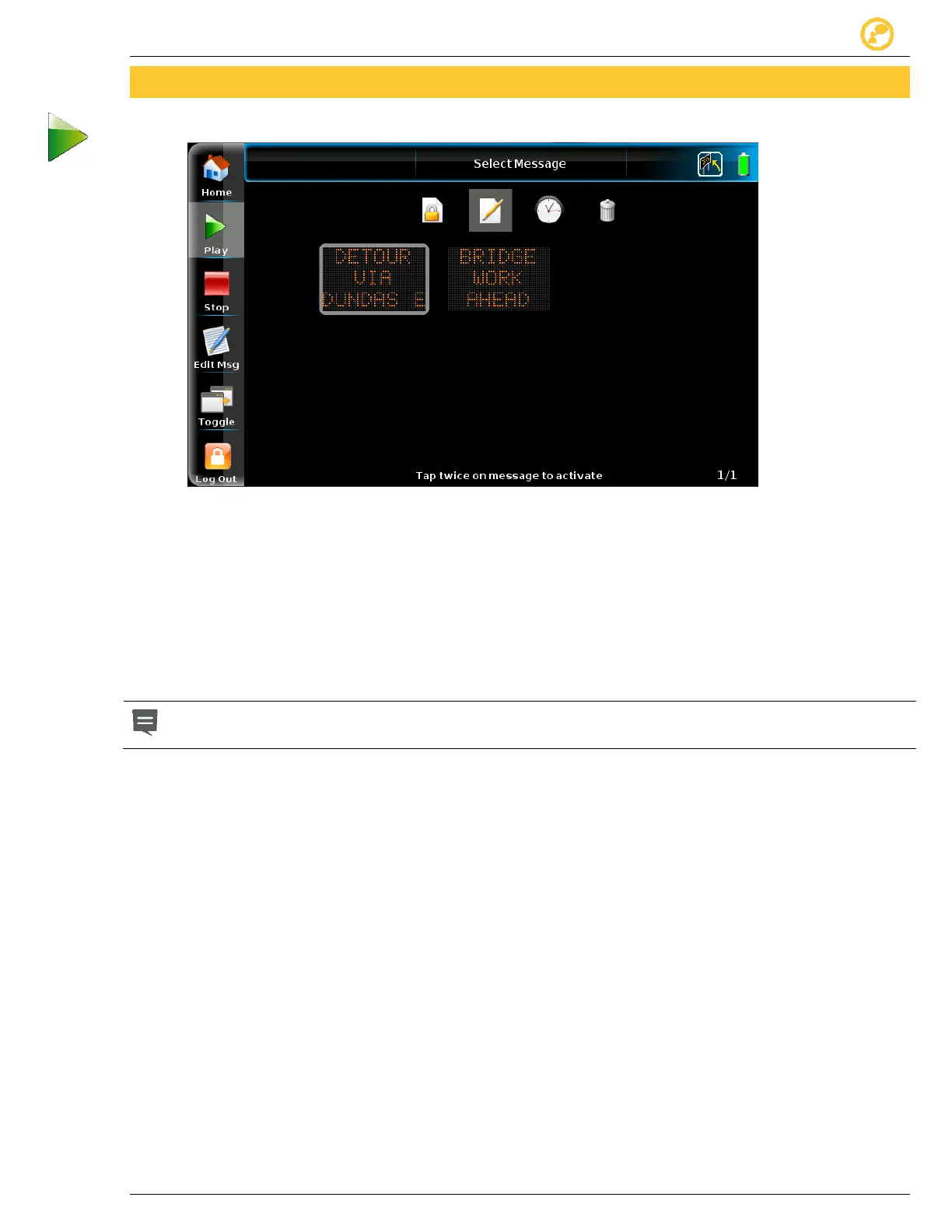

Figure 4 - Select Message screen

The Select Message screen allows you to locate existing messages that are stored in

2 places:

 A Library of permanent unchangeable text messages;

 A Collection of changeable text messages.

This page also lets you activate a selected message for the PCMS.

NOTE

Messages in the Library appear in alphabetical order.

You cannot delete messages in the Library.
