Ver-Mac 2016 V-Touch Controller User Manual, V3.0 23

7 Schedules

A Schedule is a program of messages for display with a timetable for when the program

displays.

Schedules interrupt the current message that is displayed on the PCMS.

 When the Schedule ends, the last message in the schedule will continue to play. If you

wish to return to a previous message, or display a blank message, this must be added

to the schedule.

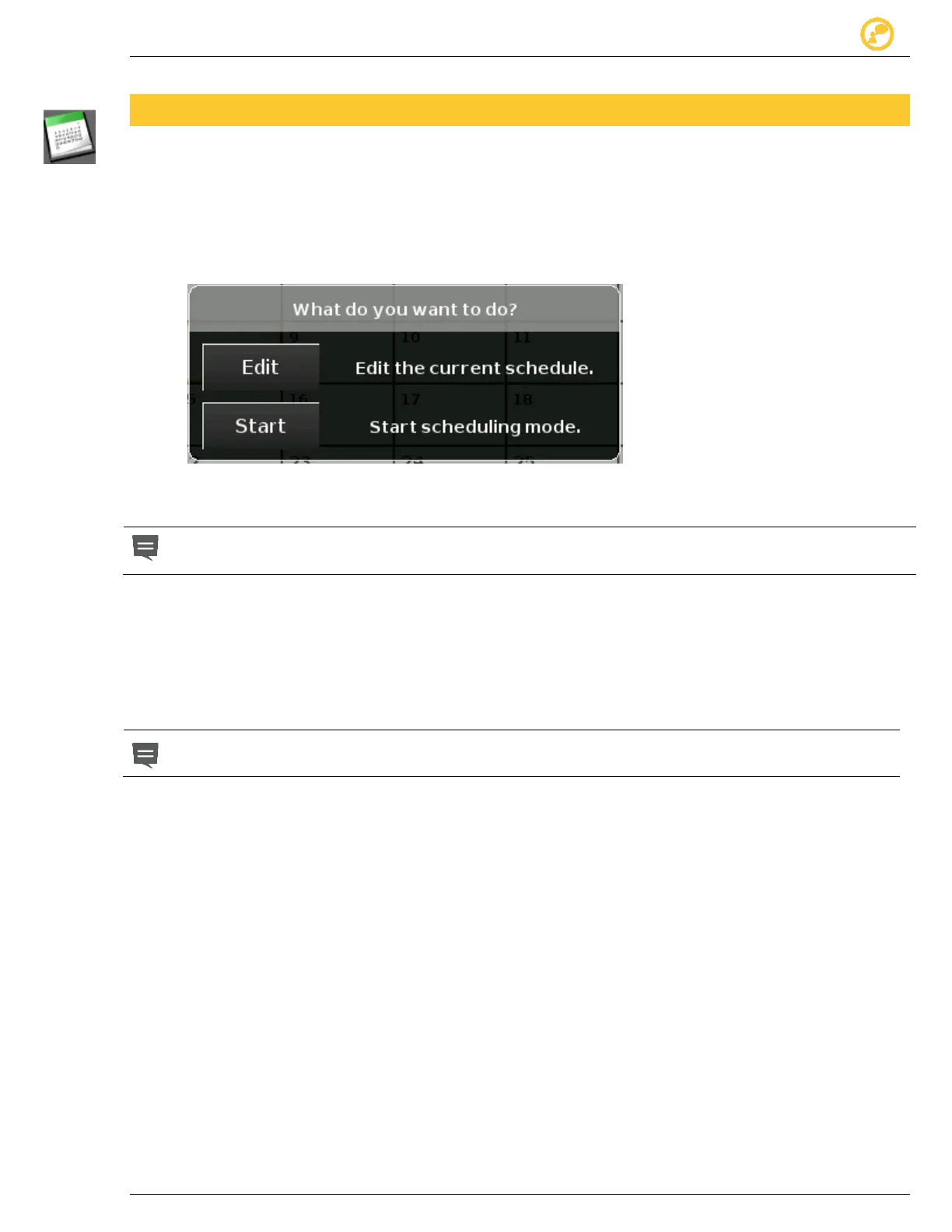

Figure 15 - Access to Schedule functions (Admin User)

NOTE

The Edit Schedule feature is only available to Admin Users.

The access that you have to Schedule functions varies according to your User profile:

 Only Admin Users can access Schedule Editor functions.

 Guests are limited to the Start/Stop Schedule mode.

IMPORTANT

If the current message is part of an active schedule and you stop the

current schedule, this action blanks the sign.
