Ver-Mac
201
6
V-Touch Controll
er User M
anual, V3.0
57
9.10
V
ie
w
Logs

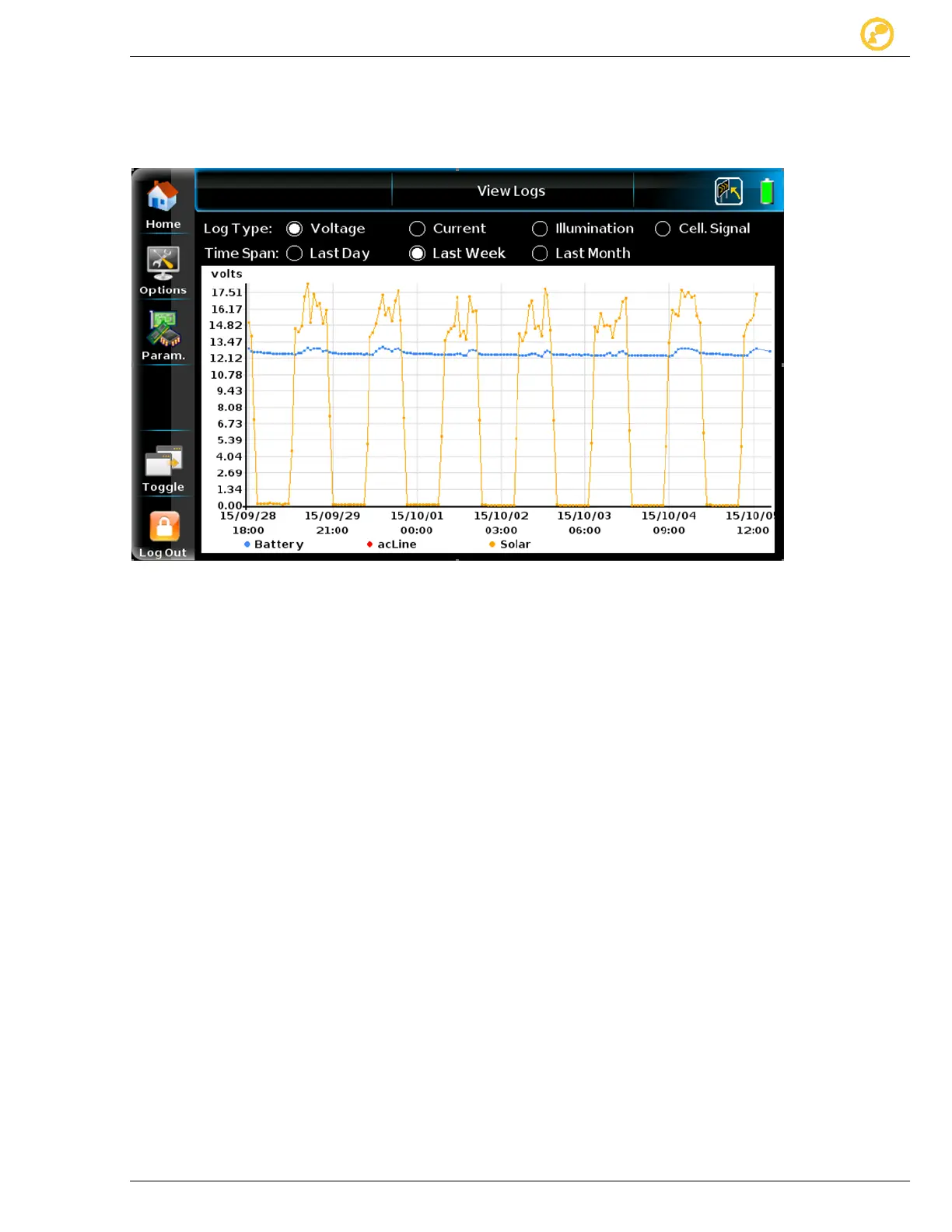

The View Logs page allow
s you to display a chart over a certain period of time for voltage,
current, illumination and cell signal. You can use it to scrutinize the PCM
S behavior.
Figure
48
shows the solar and battery voltage over a week.
Figure
48
- Data chart for
a week
64
66
Table of Contents
Table of Contents
6
Figures and Tables
7
Introduction
9
Using a Touchscreen
9
Security and Login
10
User Profiles
10
Authentication Screen
11
Community Names
11
Figure 1 - Select Security Level Window
11
Figure 2 - Community Names
12
Home Screen
13
Explore the Home Screen
13
Figure 3 - Home Screen
13
Quickpick Image Bank
14
Table 1 - Operations Buttons on Home Screen
14
Display a Message
15
Explore the Select Message Screen
15
Figure 4 - Select Message Screen
15
Select and Display an Existing Message
16
Remove a Message from the Collection of Changeable Messages
16
Table 2 - Toolbar Icons- Select Message
16
Blank the Signboard
17
Create a Message
18
Explore Edit Message Screen
18
Figure 5 - Edit Message Screen
18
Table 3 - Keys to Change Keyboard Layout
18
Table 4 - Edit Message Toolbar Icons
19
Special Tags
22
Figure 6 - Select a Special Tag Screen
22
Table 5 - Dynamic Data Types
23
Page Conditions
24
Figure 7 - Radar Trigger Page Conditions
24
Figure 8 - Page Conditions - no Ios Active
25
Table 6 - Message Pages Attached to IO Operative Status in Page Conditions Window
26
Import a Graphic into a Message
27
Figure 9 - Select Message Screen-Graphic Image Bank
27
Moving Text
28
Figure 10 - Moving Text Window
28
Table 7 - Moving Text Settings
28
Auto Font Feature
29
Colors
29
Figure 11 - Autofont Feature
29
Figure 12 - Colors Settings
29
Figure 13 - Color Picker Screen
29
Figure 14 - Color Picker - Color Zone
30
Schedules
31
Figure 15 - Access to Schedule Functions (Admin User)
31
Explore Schedule Editor
32
Figure 16 - Schedule Editor - Month Screen
32
Figure 17 - Schedule Editor - Day Screen
33
Create a New Schedule of Messages
34
Table 8 - Content Areas of Edit Schedule-Day Screen
34
Figure 18 - Building a Day Plan
35
Table 9 - Day Plan Icons and Buttons
36
Figure 19 - Periodicity Window with Default Settings
37
Table 10 - Periodicity - Repetition Options
38
Edit an Existing Schedule
39
Table 11 - Editing Options for Schedules
39
Figure 20 - Reviewing a Schedule
40
Options
41
Explore the Options Screen
41
Figure 21 - Options Screen
41
Table 12 - Options
42
Table 13 - Other Options
42
Brightness
43
Figure 22 - Testing for Brightness
43
Pixel Test
44
Figure 23 - Testing for Faulty Pixels
44
Maintenance
45
Figure 24 - Maintenance Tests
45
Devices
46
Edit Graphic
46
Figure 25 - List of Active Devices
46
Figure 26 - Edit Graphic Screen
46
Table 14 - Edit Graphic Screen Toolbar Icons
47
Schedules
48
Figure 27 - Color Picker Window
48
Default Messages
49
Figure 28 - Default Messages Screen
49
Display Detection
50
Figure 29 - Display Detection Screen
50
Countdown Timer
51
Data Management
51
Figure 30 - Countdown Window
51
Figure 31 - USB Data Connector
51
Figure 32 - Data Management - Import Screen
52
Table 15 - Operations Available Within Data Management
52
Current Max
53
Figure 33 - Data Management - Export Screen
53
Sign Type
54
GPS Modem
54
Figure 34 - GPS Modem Screen
54
Sign Up/Down
55
Radar Configuration
55
Figure 35 - Truck Mounted Sign Position Window
55
Gps
56
Figure 36 - GPS Screen
56
Power Saving Options
57
Figure 37 - Default NTCIP Parameters
57
Figure 38 - Power Saving Options
57
Parameters
58
Figure 39 - Parameters Screen
58
Guest Management
59
Figure 40 - Guest Management Screen
59
Table 16 - Operations Buttons-Parameters Screen
59
Change Admin Password/Guest Password
60
Network Settings
60
Figure 41 - Enter Old Password Window
60
Figure 42 - Network Window
60
Special Code
61
System Clock
61
Figure 43 - Clock Configuration - Manual
61
Diagnostics
62
Interface Language Selector
62
Figure 44 - Clock Configuration - NTP Client
62
Figure 45 - Language Selector Screen
62
Hardware Changes
63
Figure 46 - Hardware Change(S) Detected
63
Low Voltage Disconnect Card
64
Figure 47 - Parameters Screen - LVD
64
Table 17 - LVD Settings
64
View Logs
65
Figure 48 - Data Chart for a Week
65
Troubleshooting
66
Status Warnings
66
Table 18 - Status Warnings
66
Message Errors
67
General Troubleshooting
67
Table 19 - Message Errors
67
Table 20 - General Troubleshooting
67
4
