Ver-Mac 2016 V-Touch Controller User Manual, V3.0 46

8.13 Sign Type

This option is only available for Admin Users. Unless Ver-Mac Support directs you

otherwise, you normally do not need to access the information displayed in Sign Type

window.

8.14 GPS Modem

The GPS Modem screen allows you to select a modem among the available models.

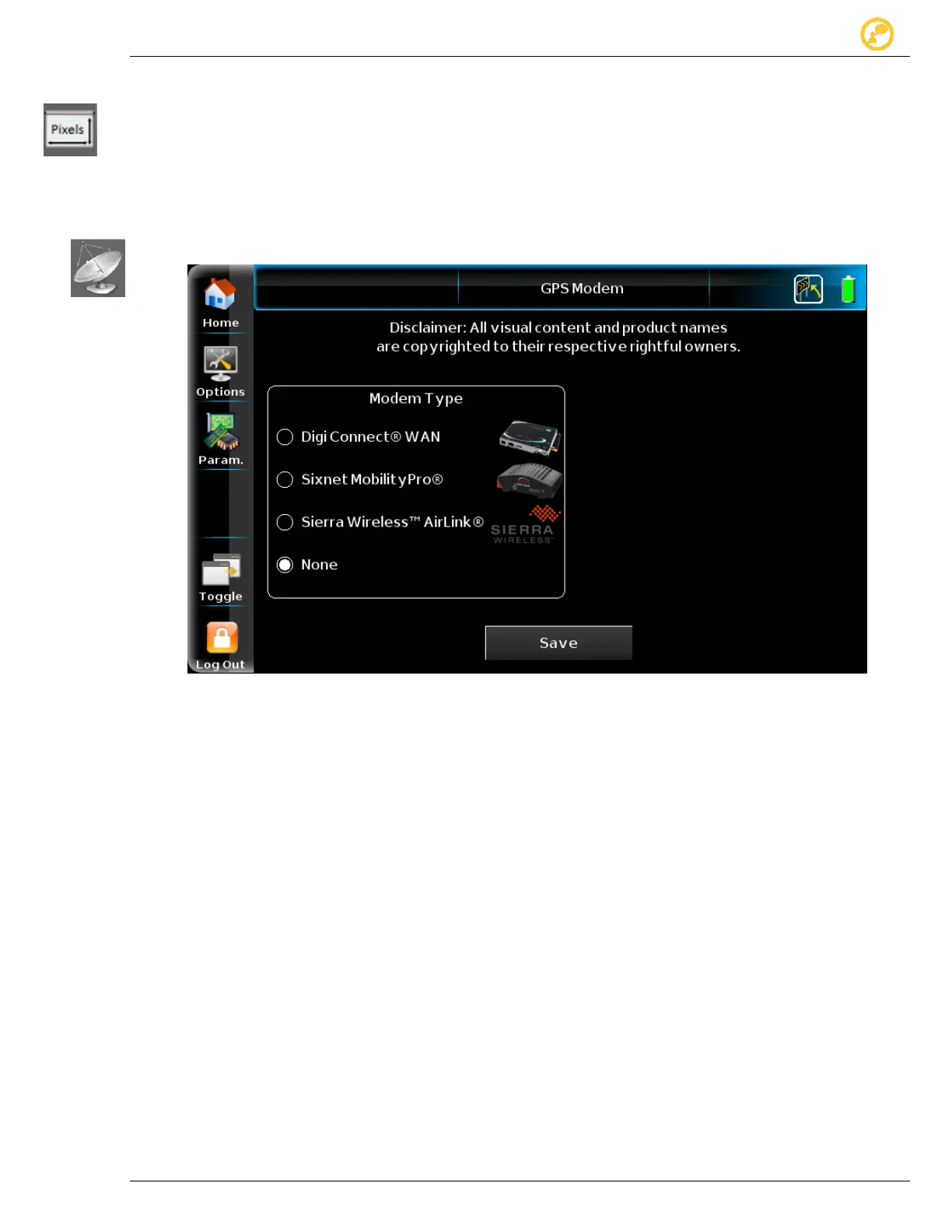

Figure 34 - GPS Modem screen

To define a modem:

1. In the Modem Type section, select a modem; icons help you visually identify them.

2. In the Configuration section, use the up-down arrows to modify the port number.

3. Tap Edit modify either the Username or the Password.

4. Tap Save to return the countdown to the initial setting.

5. Note the IP address to change it in the JamLogic fleet management software.
