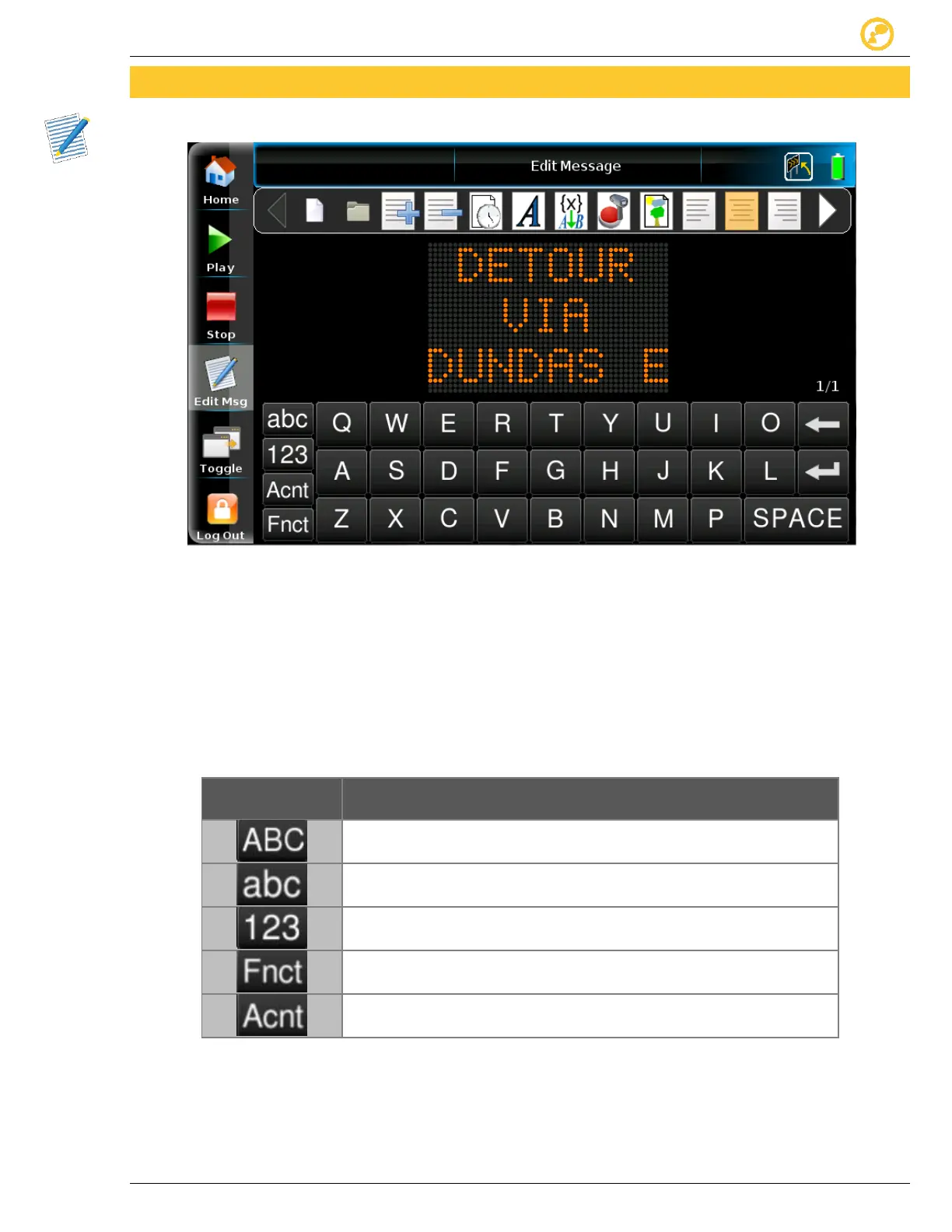

Ver-Mac 2016 V-Touch Controller User Manual, V3.0 10

6 Create a Message

6.1 Explore Edit Message Screen

Figure 5 - Edit message screen

In Edit Message you can create new messages or modify existing changeable

messages for the PCMS.

Whenever you access the Edit Message screen, it shows in the preview area the last

message you edited.

Use the touchscreen keyboard to type text in messages and the items on the Edit

Message toolbar to tailor the presentation of the message.

6.1.1 What You See

Key

Function

All letters are upper case.

All letters are lower case.

Numbers

Punctuation marks and symbols

Additional language accentuation marks

Table 3 - Keys to change keyboard layout
