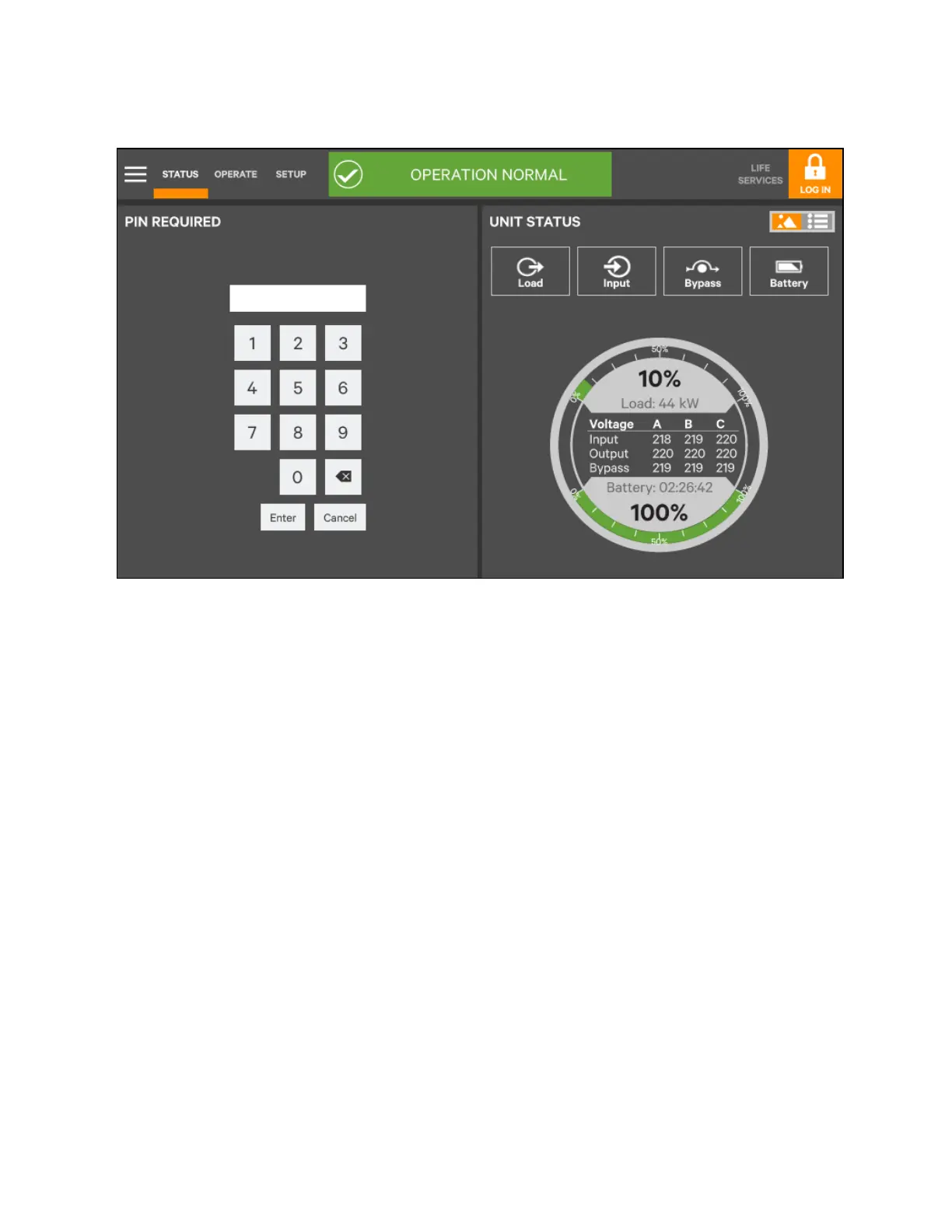

Figure 6.10 Inputting Password
5. When the rectifier start process is finished, close the battery circuit breaker. The system run in Bypass mode. See
Power flow shown in Figure 6.11 on the facing page. Click the On key (Refer to Operator Controls shown in
Navigating through the Vertiv™ Liebert® APM2 Touchscreen on page54).
