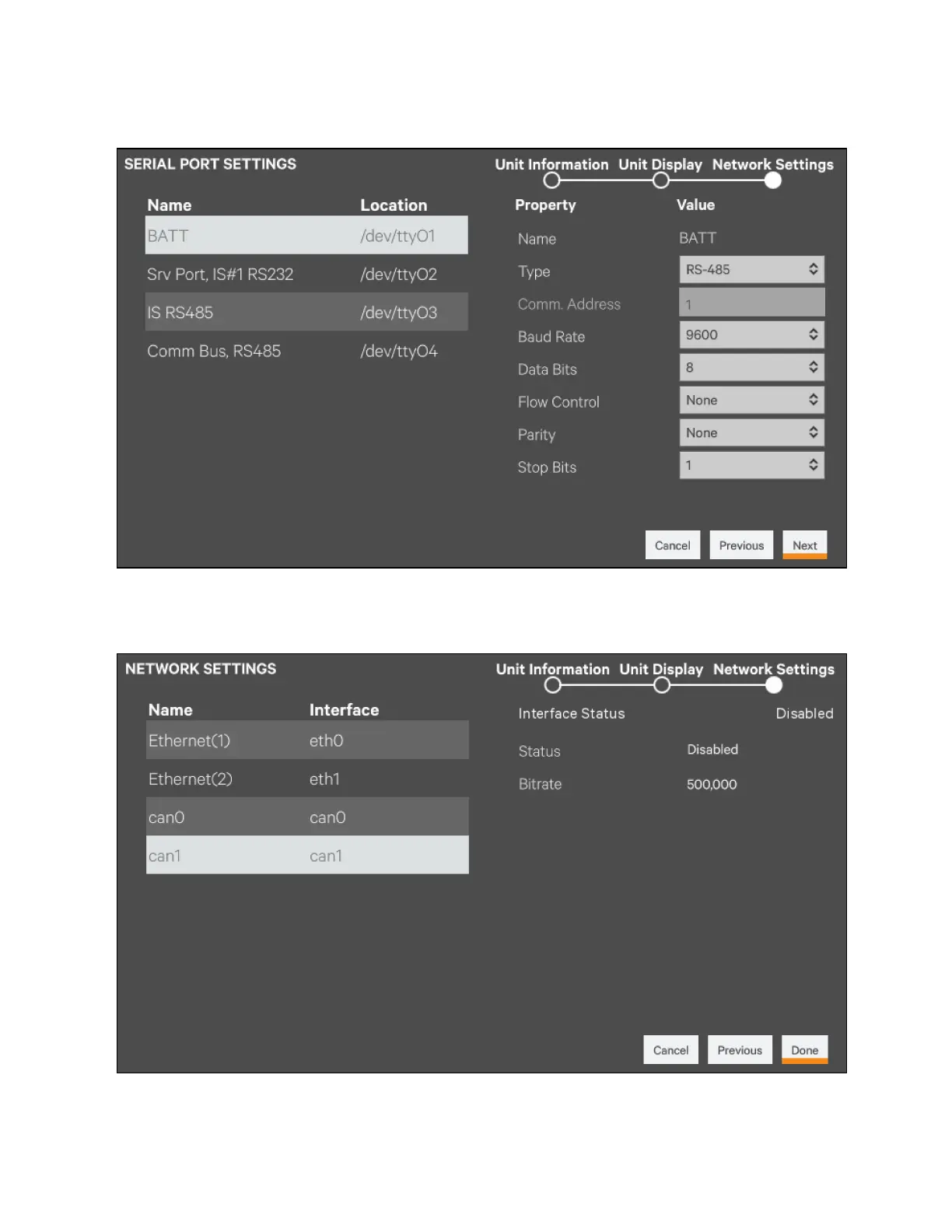

Figure 6.8 Serial Port Setting Interface
After setting desired items, click Next, Figure 6.9 below will appear.
Figure 6.9 Network Setting Interface
Click Done. About 25 seconds later, click the LOG IN to enter the system by inputting correct password.
6 Single UPS Operation Proprietary and Confidential ©2023 Vertiv Group Corp. 107
Vertiv™ Liebert® APM2 30 to 120 kVA Modular UPS User Manual
