6. Either accept the generated name (New View) or touch the view’s name to rename it using the on screen.
keyboard (maximum length is 14 characters). Touch the Enter key on the on screen keyboard after entering the
new name.
7. From the drop down list in the Layout heading, select the number of panes to be placed in the new or edited view.
The maximum is 4.
8. Choose the data to be displayed in each pane by touching a choice in the Panel options and then touching the
appropriate panel. Repeat for each pane.
9. Touch the Save button to keep the changes or touch the Cancel button to exit the screen without saving.

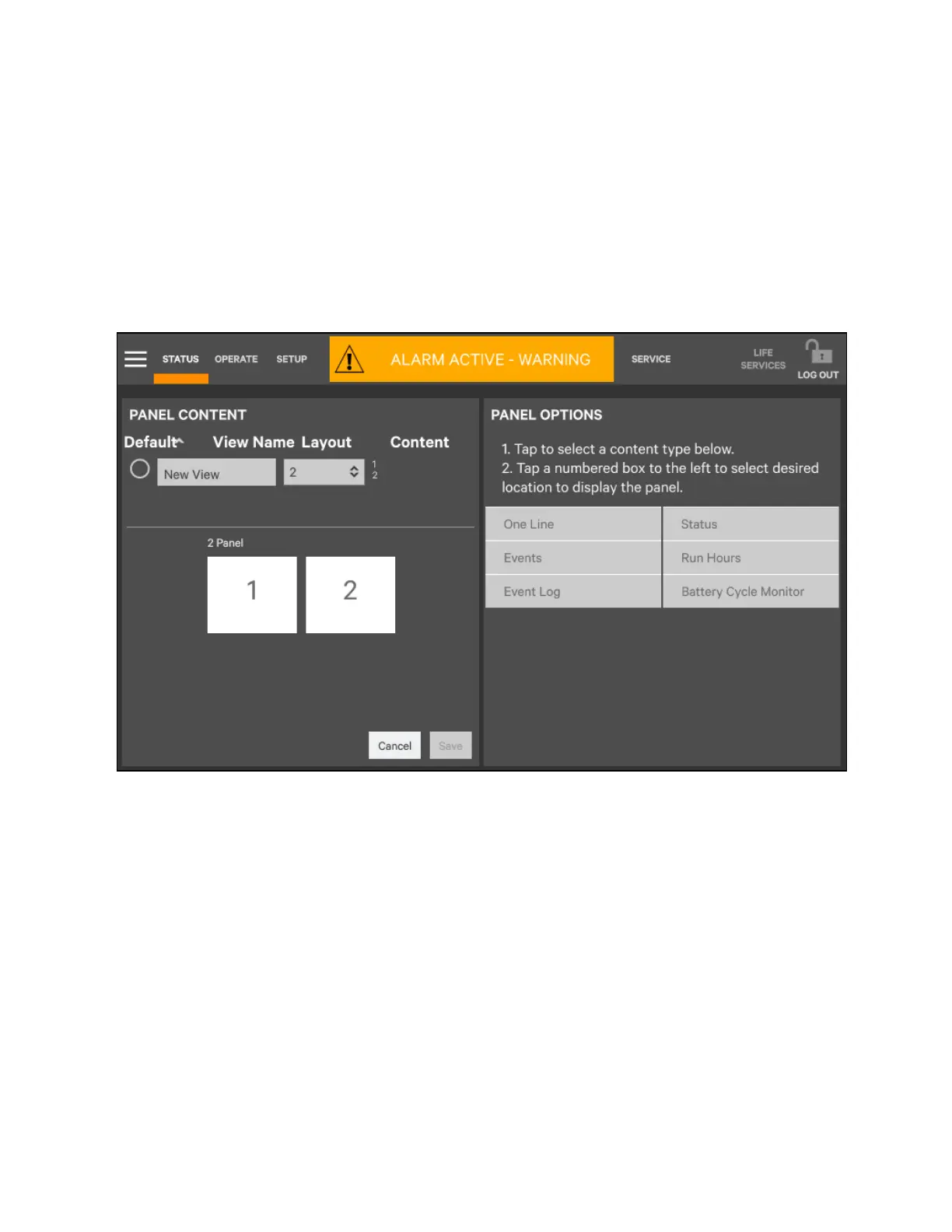

Figure 5.12 Set Number of Panels and Choose Data
