Chapter 3 Starting up
Fitting and removing a module
User Manual 79000000203 Rev. 005 15
Removing a module
1 Unscrew the two captive fixing screws of the module completely (up
to the stop).
2 Remove the two slots of the module from their housing onto the
base.
3 Carefully remove the module out of its slot.

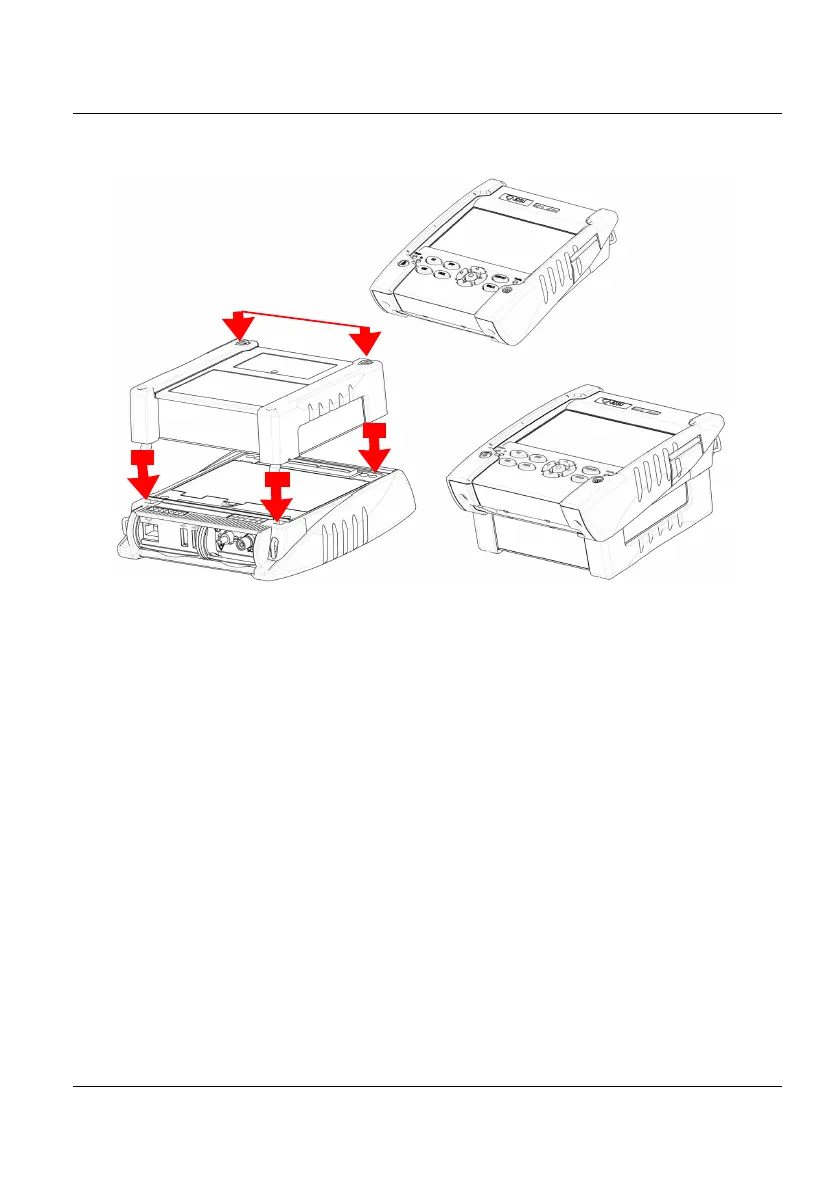

Figure 6 Fixing the module to the base
