Chapter 6 Scope
Scope feature
48 User Manual 79000000203 Rev. 005
Scope feature
Overview
This feature enables you to verify that your optical connectors are in perfect
shape and very clean condition.
The P5000i Digital Probe Microscope is a portable handheld microscope
used to view and inspect both the bulkhead (female) and patch cord (male)
sides of fiber connectors as well as other optical devices, such as trans-
ceivers.
The P5000i requires an FBPT inspection tip and is connected to the 2000
Platform with a USB 2.0 connector.

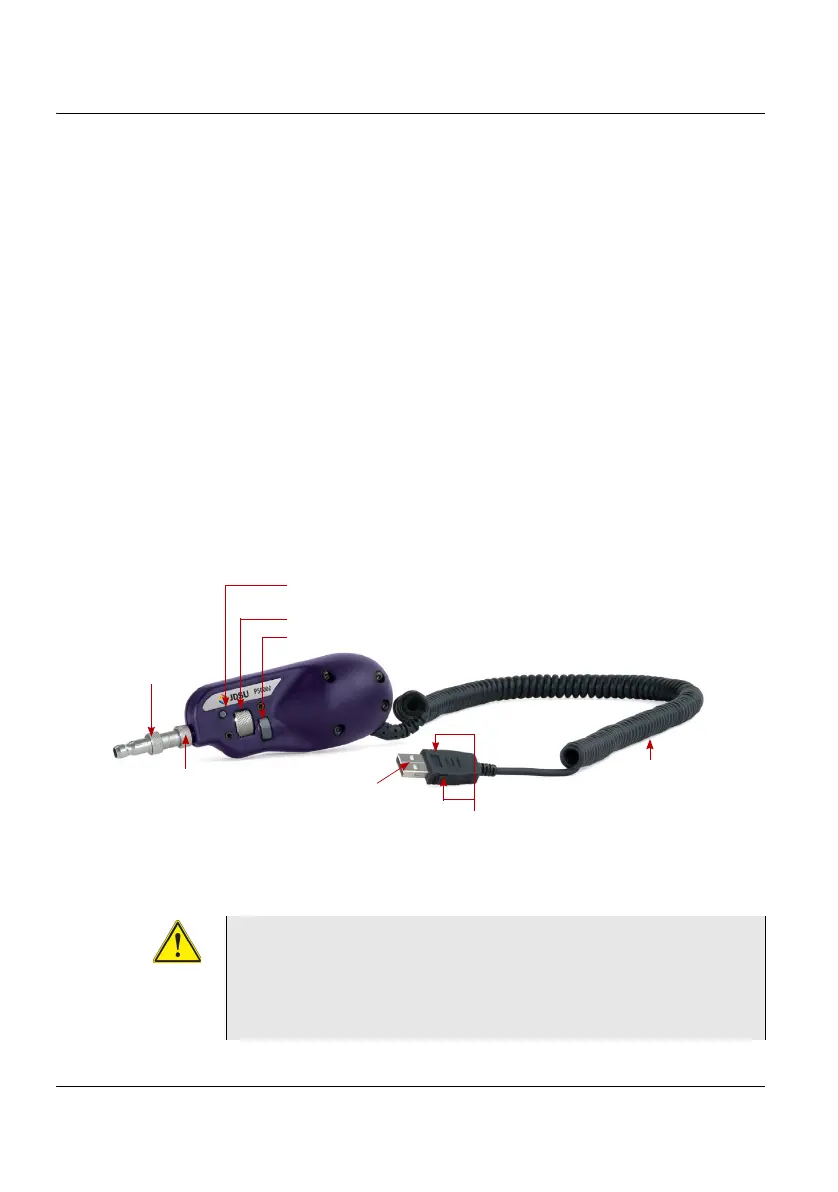

Figure 16 P5000i Probe components
Quickcapture
TM
button
Instantly captures (and analyzes) fiber image
Focus Control
Latch lock
Squeeze both ends to release
Barrel assembly
USB 2.0
connecto
6 FT COIL Cable
Inspection tip
Magnification Control
Before using the P5000/P5000i scope, make sure the
Bluetooth option has not been activated, even once,
after the start of the MTS/ T-BERD 2000. If it has been
activated, stop and restart the equipment before using
the P5000/P5000i Scope.
