Chapter 6 Scope
Configuring the P5000i Scope
50 User Manual 79000000203 Rev. 005
Test
On the line Profile, select the Profile which will be used for the test of fiber
connector:
• SM_UPC: Pass/Fail criteria for single-mode UPC connectors from
IEC 61300-3-35 standard.
• SM_APC: Pass/Fail criteria for single-mode APC connectors from
IEC 61300-3-35 standard.
• SM_PC: Pass/Fail criteria for single-mode PC connectors from IEC
61300-3-35 standard.
• MM_: Pass/Fail criteria for multimode connectors from IEC 61300-3-
35 standard.
Profiles contain the analysis parameters by which PASS/FAIL criteria are
determined.
Once the line is selected, you can also add a new profile, clicking on the
Add Button (see “Adding a new profile” on page 53).

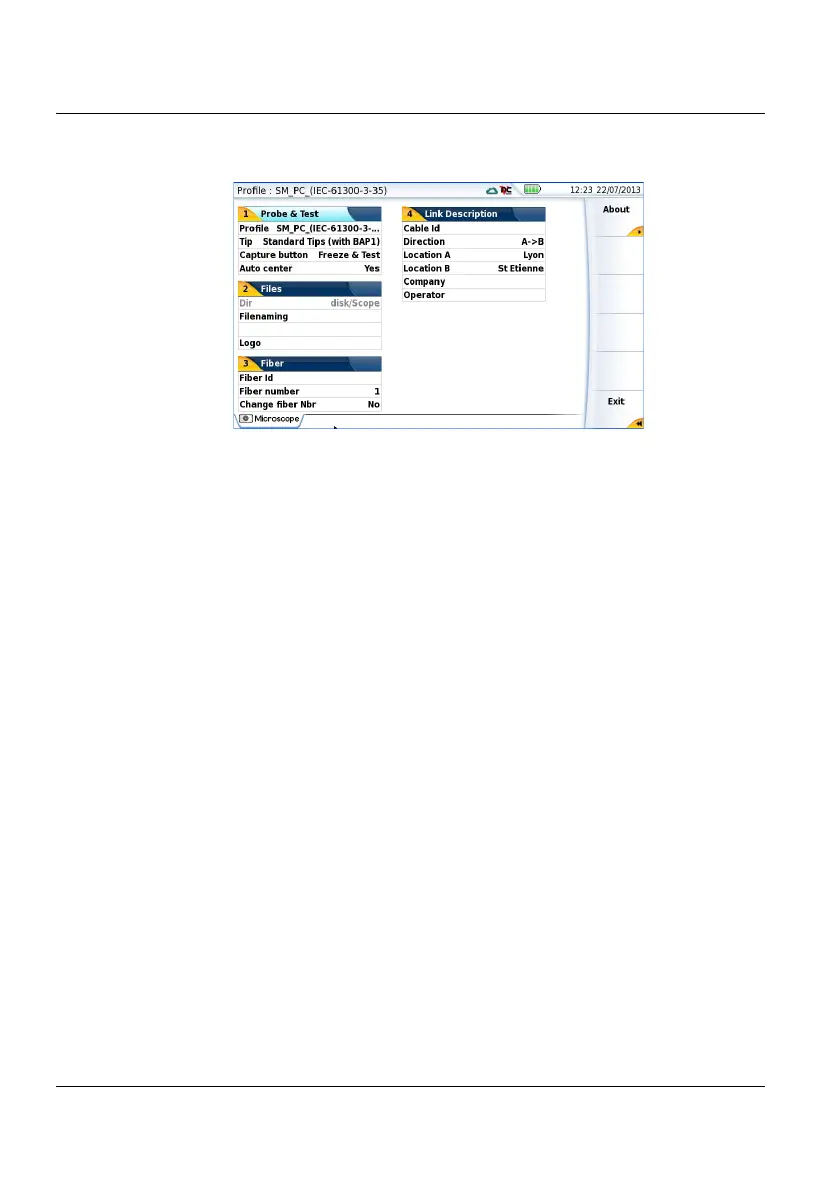

Figure 17 P5000i Scope Setup
