Chapter 6 Scope
Launching a test of the connector and fiber end-face
58 User Manual 79000000203 Rev. 005

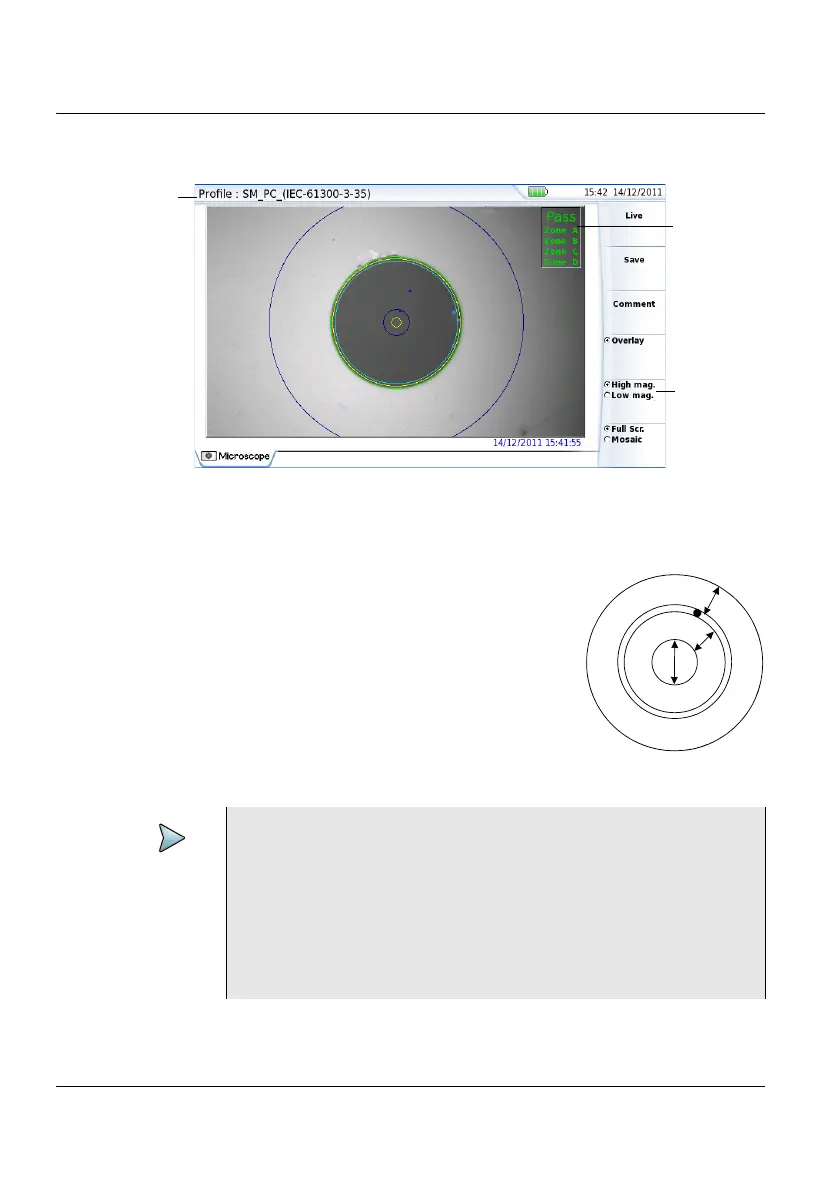

A summary of test results is displayed on the right, upper part of the screen.
• Zone A: Core zone: it is the area surrounding
the core
• Zone B: Cladding zone. It surrounds the
majority of the fiber cladding.
• Zone C: Epoxy ring.
• Zone D: Ferrule/Contact zone: it identifies a
portion of the ferrule near and around the fiber
Figure 21 Test results
Test result
in High
mag.
Profile selected
in the Setup
page
Summary
of Test
results
NOTE
To return to a Live Camera image, press the Camera key;
or press the Full Screen/Mosaic key view both the live
image and a test result simultaneously.
In Mosaic mode (see
"Mosaic Mode" page 59), the result
of the test only displays Pass or Fail information; the status
of each zone is displayed only in full screen mode.
