16.3.2 General setup: VLAN

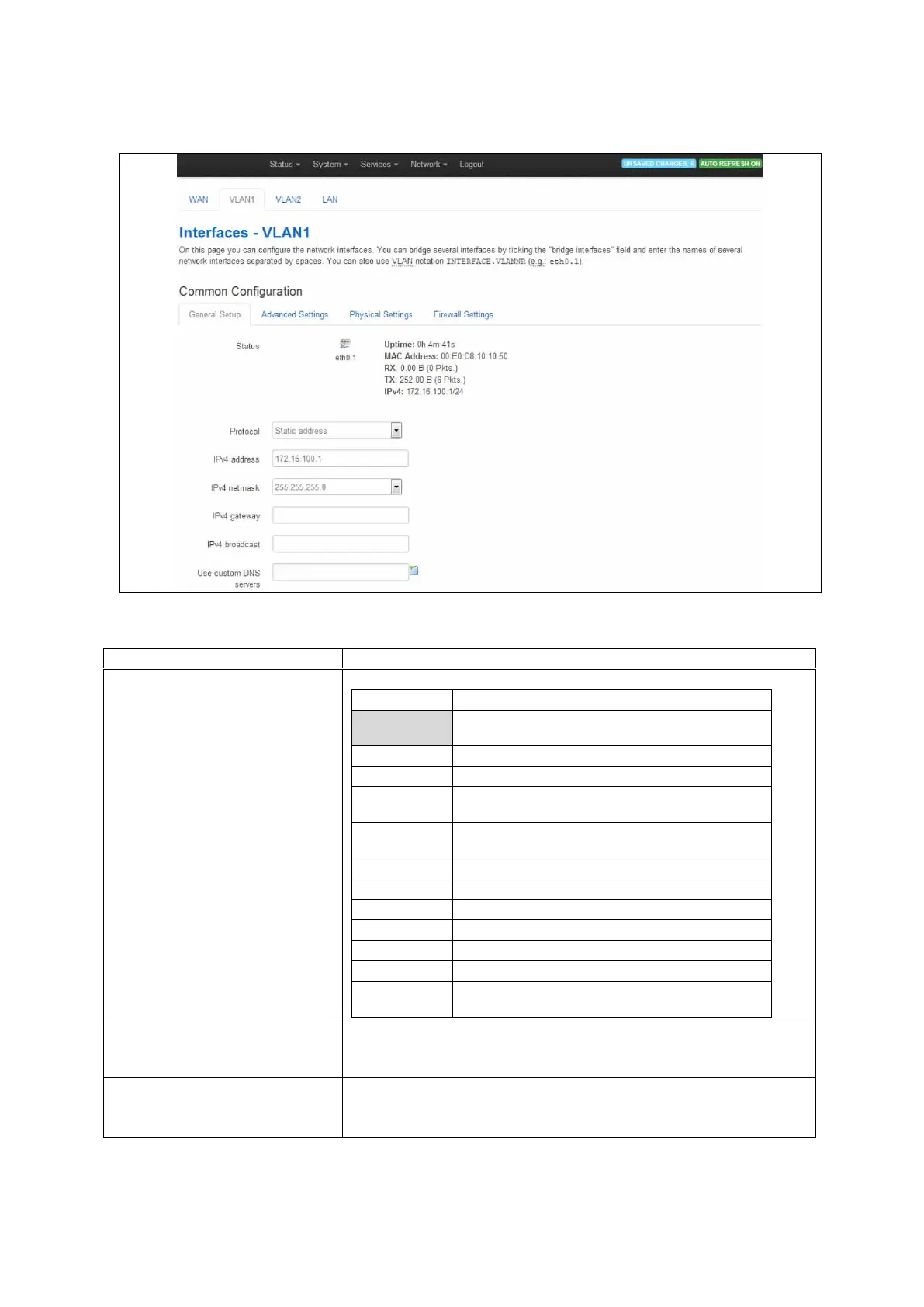

Figure 69: The VLAN 1 interface page
Web Field/UCI/Package Option
Description
Web: Protocol
UCI: network.VLAN1.proto
Opt: proto
Protocol type.
Option
Description
Static
Static configuration with fixed address and
netmask.
DHCP Client
Address and netmask are assigned by DHCP.
Unmanaged
Unspecified
IPv6-in-IPv4
(RFC4213)
Used with tunnel brokers.
IPv6-over-
IPv4
Stateless IPv6 over IPv4 transport.
GRE
Generic Routing Encapsulation protocol
IOT
L2TP
Layer 2 Tunnelling Protocol
PPP
Point to Point Protocol
PPPoE
PPP over Ethernet
PPPoATM
PPP over ATM
LTE/UMTS/
GPRS/EV-DO
CDMA, UMTS or GPRS connection using an AT-
style 3G modem.
Web: IPv4 address
UCI: network.VLAN1.ipaddr
Opt: ipaddr
The IPv4 address of the interface. This is optional if an IPv6 address is
provided.
Web: IPv4 netmask
UCI: network.VLAN1.netmask
Opt: netmask
Subnet mask to be applied to the IP address of this interface.
