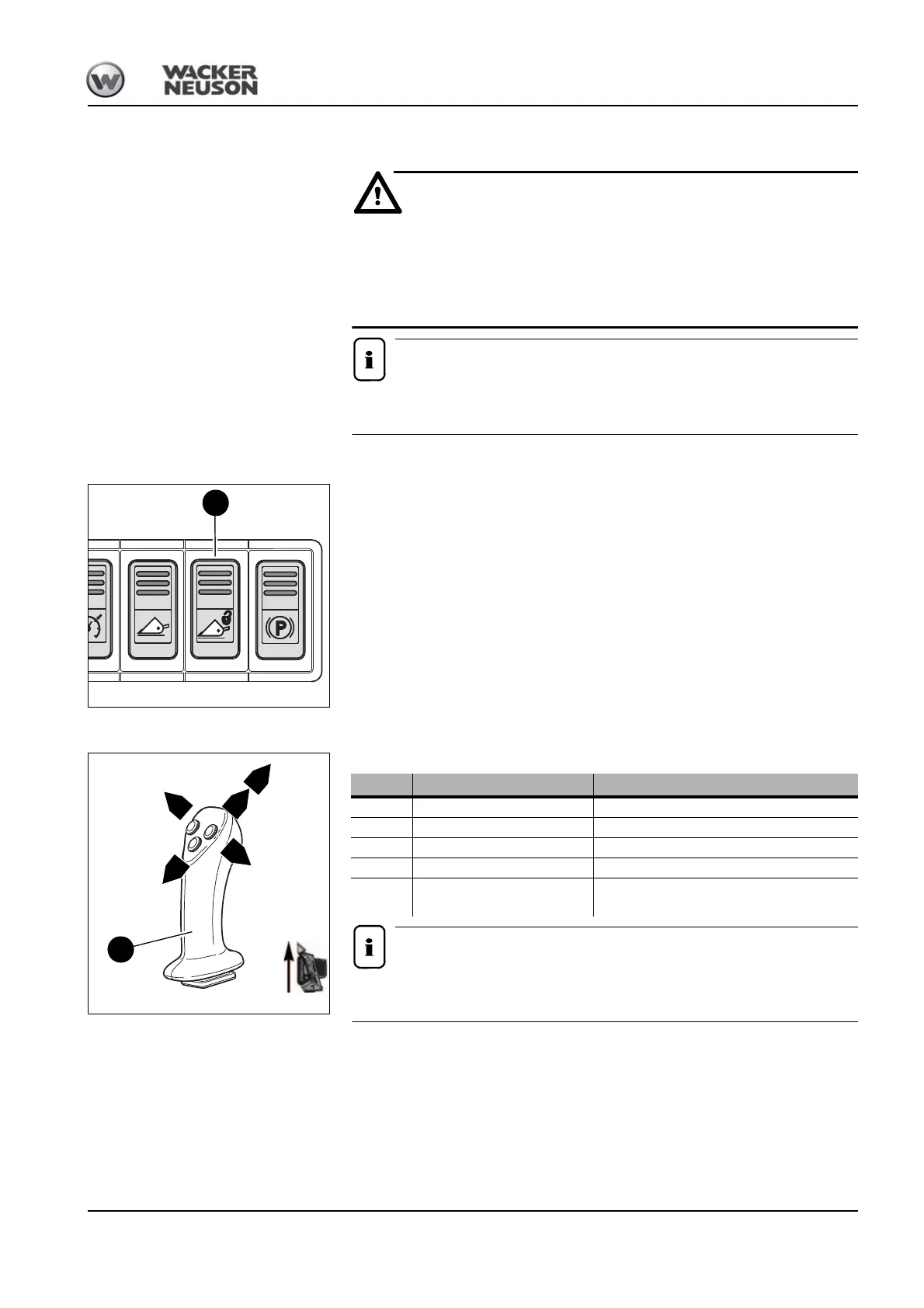

Wacker Neuson 901SP

BA 901/1101 en – Edition 2.1 * 91101b340.fm 3-55
Operation
3.9 Control levers (ISO controls) (overview)
Danger!
Unintentional operation of control lever fig. 56/20 during machine travel on
public roads –
Accident hazard!
☞ Lock the operating hydraulics with switch 46
Notice!
Fast actuation of the control lever for the attachment moves the attachment fast.
Slow actuation of the control lever moves the attachment slowly.
Locking the operating hydraulics (option)
Switch 46 is installed if the machine is equipped with the StVO Austrian road traffic
regulations option.
Actuating switch 46 locks the entire operating hydraulics.
Only machine travel can be performed.
Control lever (ISO controls)
Notice!
Always perform smooth control movements.
The floating position is beneficial when working with a rotary broom, snow plows, etc.
46
Fig. 55: Locking the operating hydraulics
Fig. 56: Control lever on the right
A
D
C
B
E
20
Position Lever Function
•A ☞ To the left ➥ Tilts in the attachment
•B ☞ To the right ➥ Tilts out the attachment
•C ☞ Forward ➥ Lowers the loader unit
•D ☞ Backward ➥ Raises the loader unit
•E ☞ Fully to the front and right
in the engaged position
➥ Lowers the loader unit to float position
Operation
