BA 901/1101 en – Edition 2.1 * 91101b610.fm 6-11
Technical data
6.15 Dimensions model 901
a
b
c
i
h
g
f
e
d
k
l
p
q
o
r
m
n
s
t
v
u

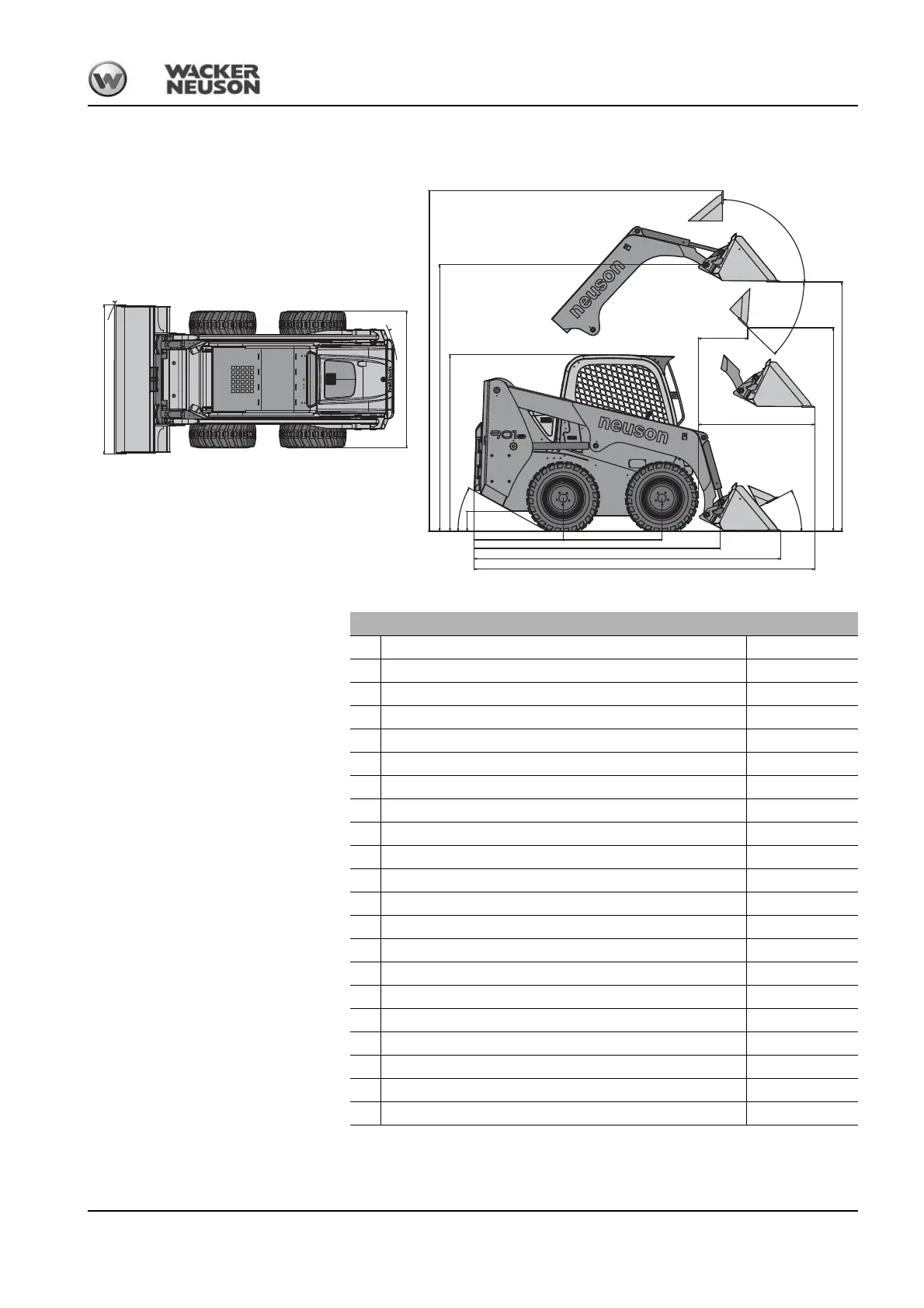

Fig. 120: Machine dimensions (model 901)
Main data
Model 901
a Maximum height
3935 mm
b Height below bucket joint
3110 mm
c Cabin height
2055 mm
d Ground clearance
240 mm
e Rear projection (rear axle onward)
1020 mm
f Wheelbase
1150 mm
g Overall length without attachment
2860 mm
h Overall length with standard bucket
3535 mm
i Maximum length of machine
3925 mm
k Topmost bucket position
2880 mm
l Maximum tilt-out height
2370 mm
m Reach
610 mm
n Maximum reach (horizontal loader unit position)
1355 mm
o Tilt-in angle
31°
p Tilt-out angle
42°
q Tilt-in angle
86°
r Departure angle
29°
s Machine width (with standard tires)
1815 mm
t Bucket width
1875 mm
u Rear turning radius
1640 mm
v Front turning radius
2160 mm
