Maintenance
5.13 Replacing tracks
Proceed as follows:
☞ Raising and jacking up the machine
☞ Reduce track tension – see chapter Reducing track tension on page 5-25
☞ Replace the track
☞ Further procedure in the reverse order
☞ Check track tension
☞ – see chapter Checking track tension on page 5-24
5.14 Traveling drive
Immediately after stopping the engine, the engine’s components and the oil
are very hot. This can cause burns.
If the inside of the drive gear is under pressure, the oil or the plug can be
squeezed out.
Burn and injury hazard!
☞ Wait until the engine has cooled down before taking up work!
☞ Slowly open the plug to release the pressure inside!
Checking the oil level and adding oil
☞ Park the machine on level and horizontal ground
☞ Position the machine so that filler plug A is at the top
☞ Stop the engine
☞ Let the engine cool down
☞ Raise the safety bar
☞ Unscrew screws A and B with a suitable tool
☞ A small quantity of oil must flow out of opening B
➥ If the oil does not flow out of opening B, add oil:
☞ Add oil through opening A,
➥ until a small quantity of oil flows out of opening B
☞ Screw screws A and B back in again
☞ Move the machine a few metres
☞ Check the oil level again
➥ If the oil level is not correct:
☞ Repeat the procedure

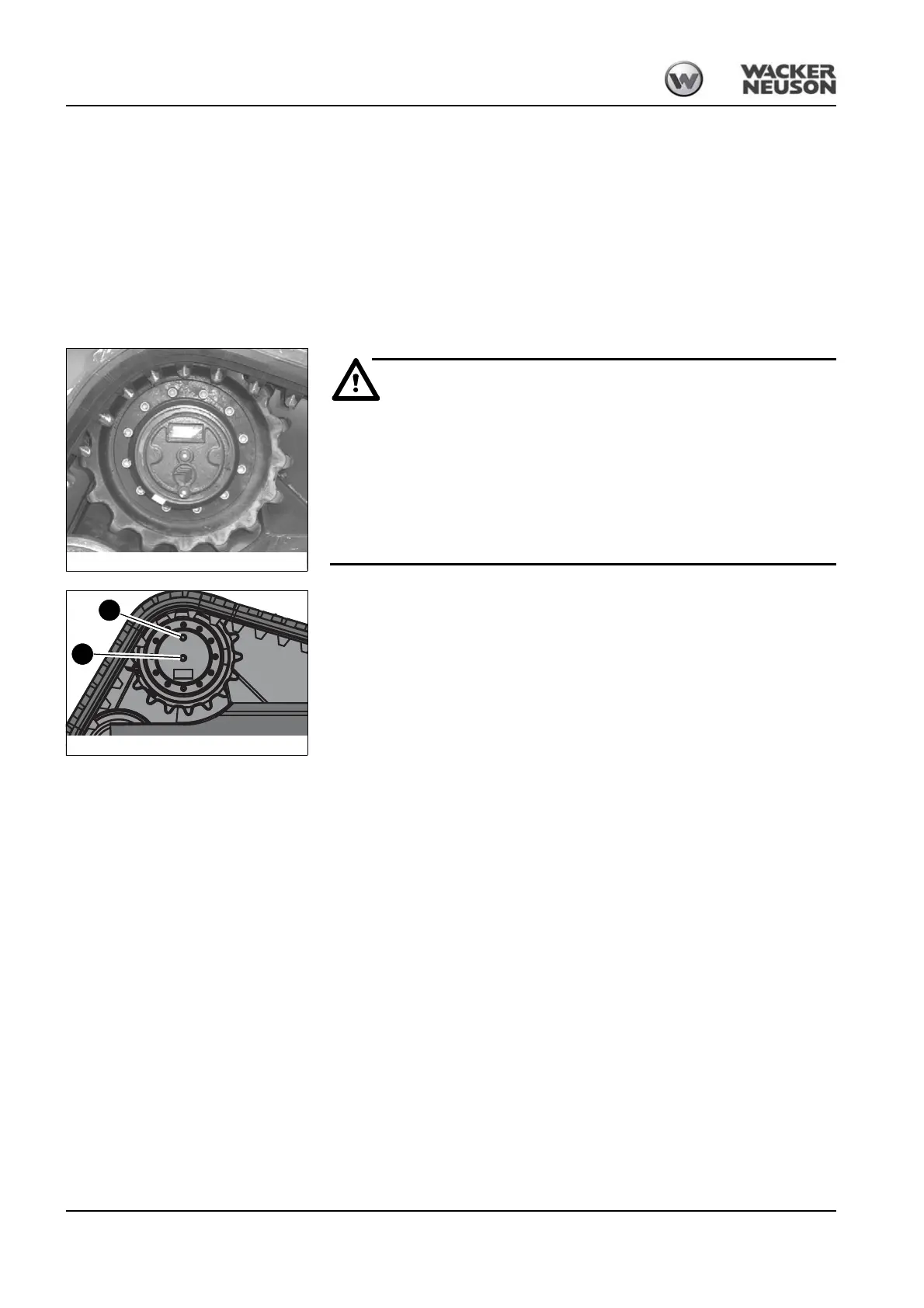

Fig. 112: Traveling drive
Fig. 113: Checking the oil level
A
B
