3-8 BA 901/1101 en – Edition 2.1 * 91101b320.fm
Operation

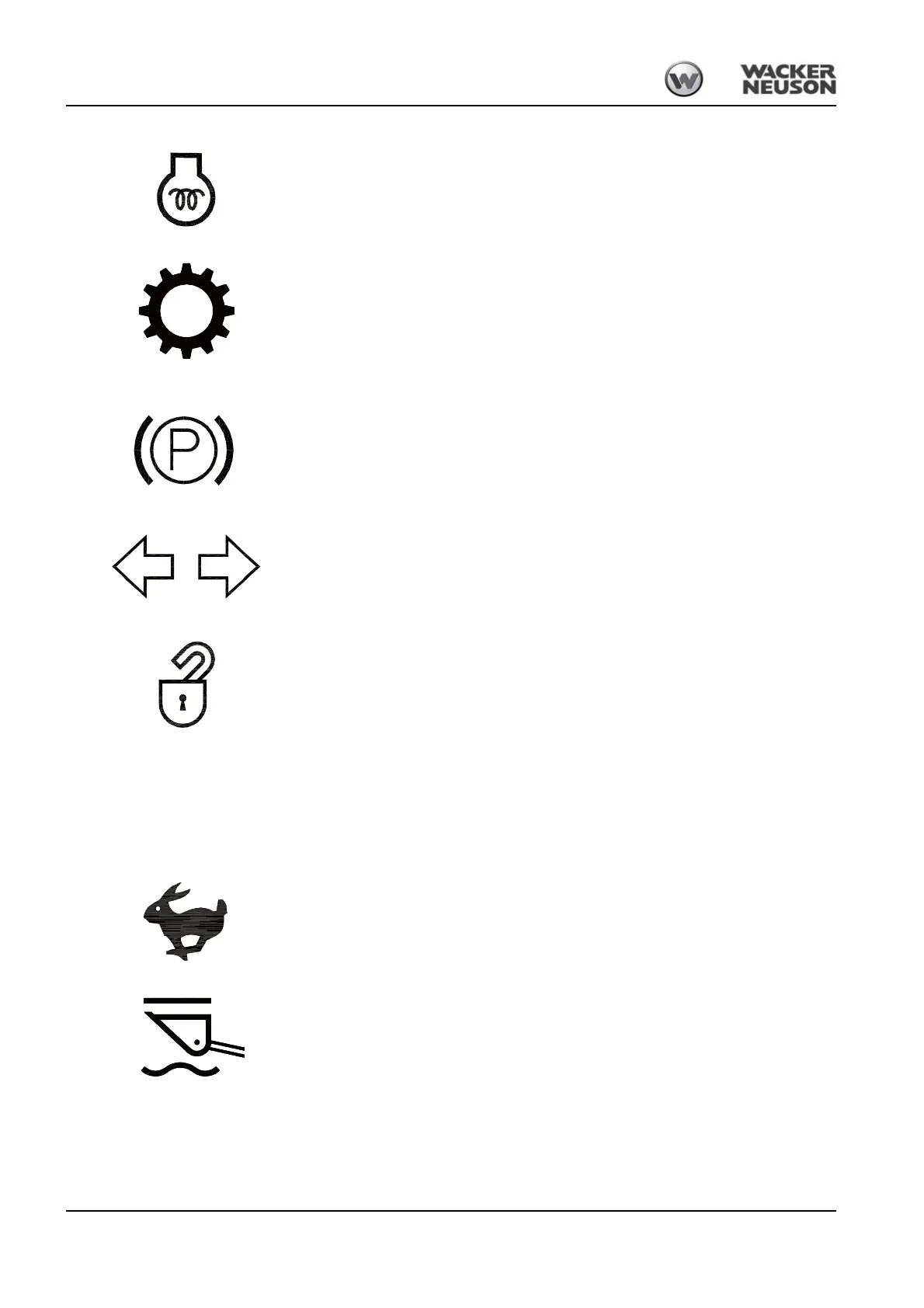

26 Indicator light (yellow) – cold starter
Illuminates if the key in the preheating start switch is in position 2.
A glow plug preheats the air in the combustion chamber of the engine when the key is in
this position.
27 Indicator light (red) – pump pressure
This optical warning device warns the operator if the pump pressure of the hydraulic pump
is too low.
☞ Stop the machine immediately
☞ Check all hydraulic lines visually for leaks
☞ Contact an authorized service center if necessary
30 Indicator light (red) – parking brake
The parking brake indicator light indicates the parking brake is applied
☞ Release the parking brake before starting machine travel
☞ Apply the parking brake before parking the machine
33 Indicator light (green) – right/left turn indicators
Flashes intermittently when using the turn indicators
34 Indicator light (red) – safety electrics
This indicator light illuminates if the safety bars are not lowered
36 Indicator light (red) – NOT ASSIGNED
37 Indicator light (green) – 2nd speed
This indicator light illuminates when selecting 2nd speed.
35 Load stabilizer indicator light (blue)
This indicator light illuminates when switching on the load stabilizer with the push button
on the joystick.
